HL-5240/5250DN/5270DN/5280DW SERVICE MANUAL
Confidential
2-9
3.3 Paper Transfer
3.3.1 Paper supply
The feed roller picks up a few sheets or one sheet of paper from the paper tray every time it is
rotated and feeds it to the separation roller.

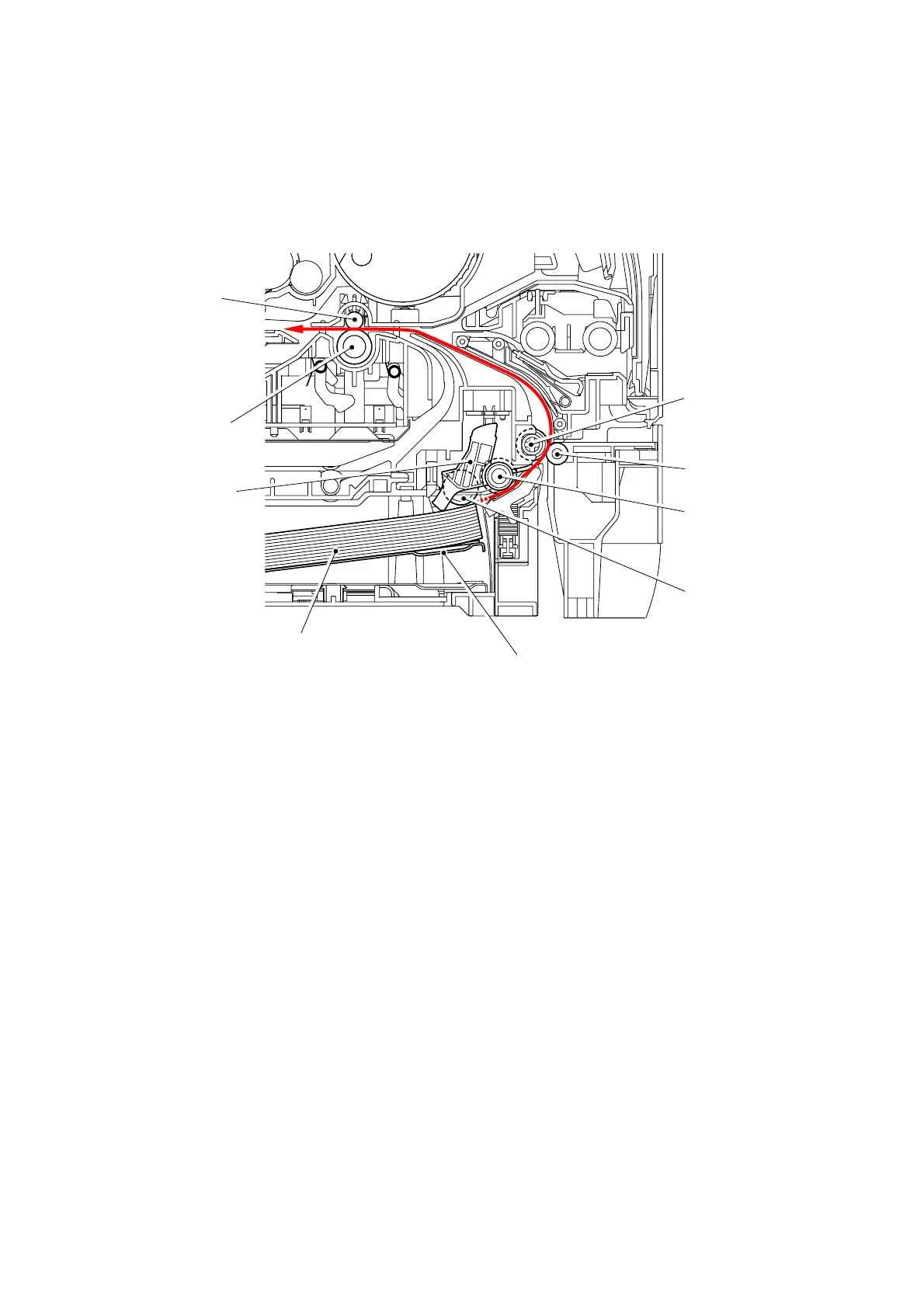

Fig. 2-6
The main motor drive is transmitted to the gears, and the gears are engaged. Then, the paper
is gripped between the separation roller and separation pad and separated into individual
sheets.
The paper drawn out of the paper tray pushes against the regist front actuator, and the paper
top position or absence of paper is detected by the actuator movement. The tail edge actuator
detects the end of the paper fed.
Feed roller TR
Separation roller
Regist roller
Pinch roller
Feed roller
PE actuator
Pressure roller
Paper
Plate

Brother HL-5240 Specifications

General

Color	No
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Internal memory	16 MB
Maximum internal memory	512 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	50 dB
Mac compatibility	Yes
Networking features	NC-2100p
Compatible operating systems	Windows 95 / 98 /Me & NT4.0 / 2000 / XP Mac OS Linux DOS
Total input capacity	250 sheets
Total output capacity	150 sheets
Maximum input capacity	500 sheets
Media weight (tray 1)	60 - 105 g/m2
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	TCP/IP, ARP, RARP, BOOTP, DHCP, WINS/NetBIOS, LPR/LPD, Port9100, POP3/SMTP, SMBPrint, TELNET, SNMP, HTTP, TFTP
Display	-
Bundled software	- PCL Printer Driver & BR Script 3 (PPD file)~ Windows 95 / 98 / Me, & NT4.0 / 2000 / XP - Brother Laser Driver ~ Mac 9.1-9.2, Mac OS X 10.2.4 ~ - GDI Printer Driver - BR-Script 3 (PPD) - Interactive Help
Power consumption (standby)	80 W
Power consumption (printing)	610 W

Weight and Dimensions

Dimensions (WxDxH)	371 x 383 x 246 mm
