Brother JS1400 - Attachment of Rear Cover Assy and Base Plate L;R

Basic of Assembly
2 - 44
Main frame and Covers
Basic of
Assembly
Basic of
Assembly

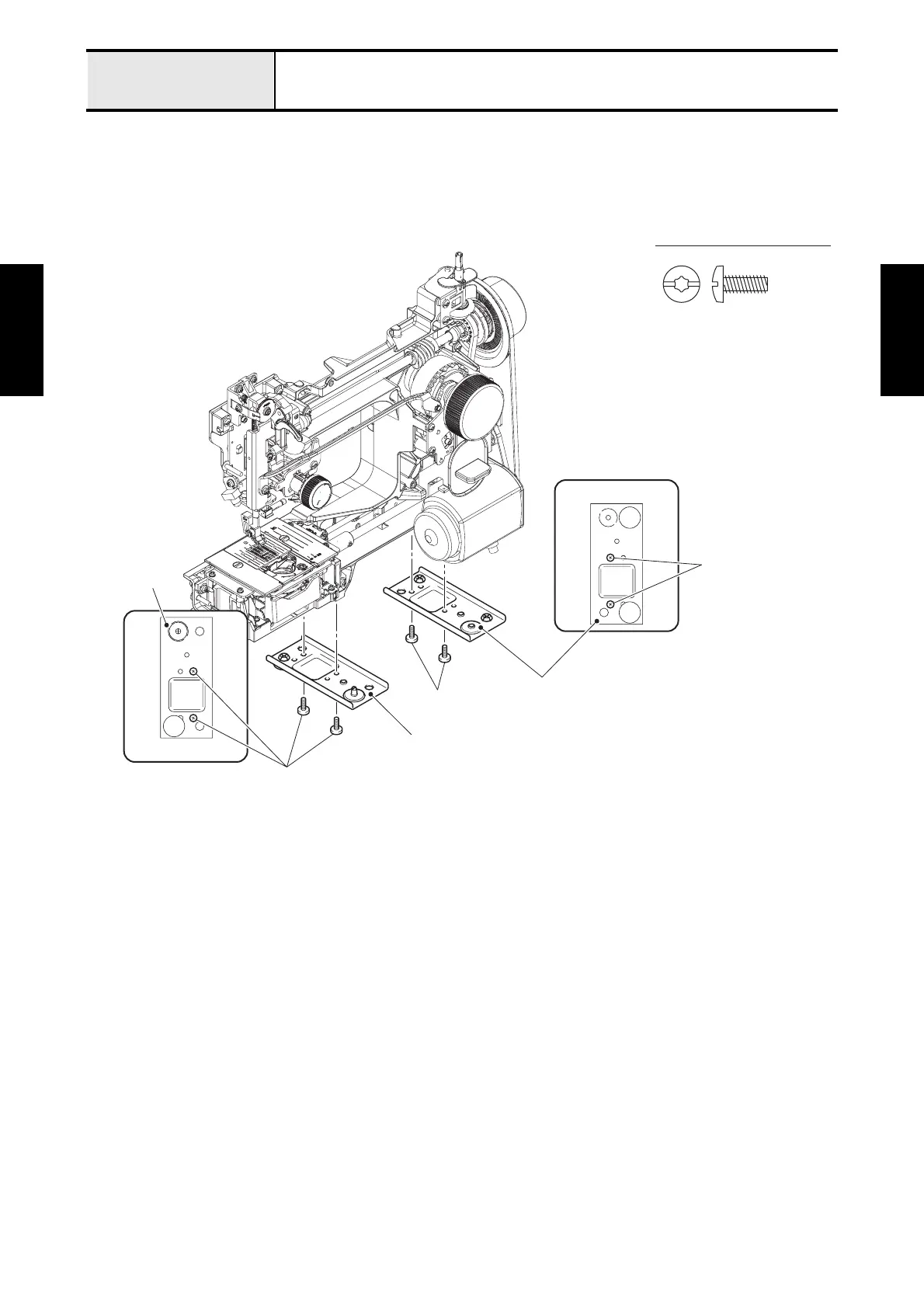

1 Attachment of Rear cover assy and Base plate L/R
1. Attach the base plate R to the bottom side of arm bed with the two screws (taptite, bind S M4X10).
2. Attach the base plate L to the bottom side of arm bed with the two screws (taptite, bind S M4X10).
→Refer to 3 - 58 Assembly of Base plate L/R.
Taptite, Bind S M4X10
Taptite, bind S M4X10
Base plate R
Base plate L
<bottom side>
<bottom side>
Taptite, bind S M4X10
Taptite, bind S M4X10
Base plate L
