Outline of Mechanism
Outline of
Mechanism
Outline of
Mechanism

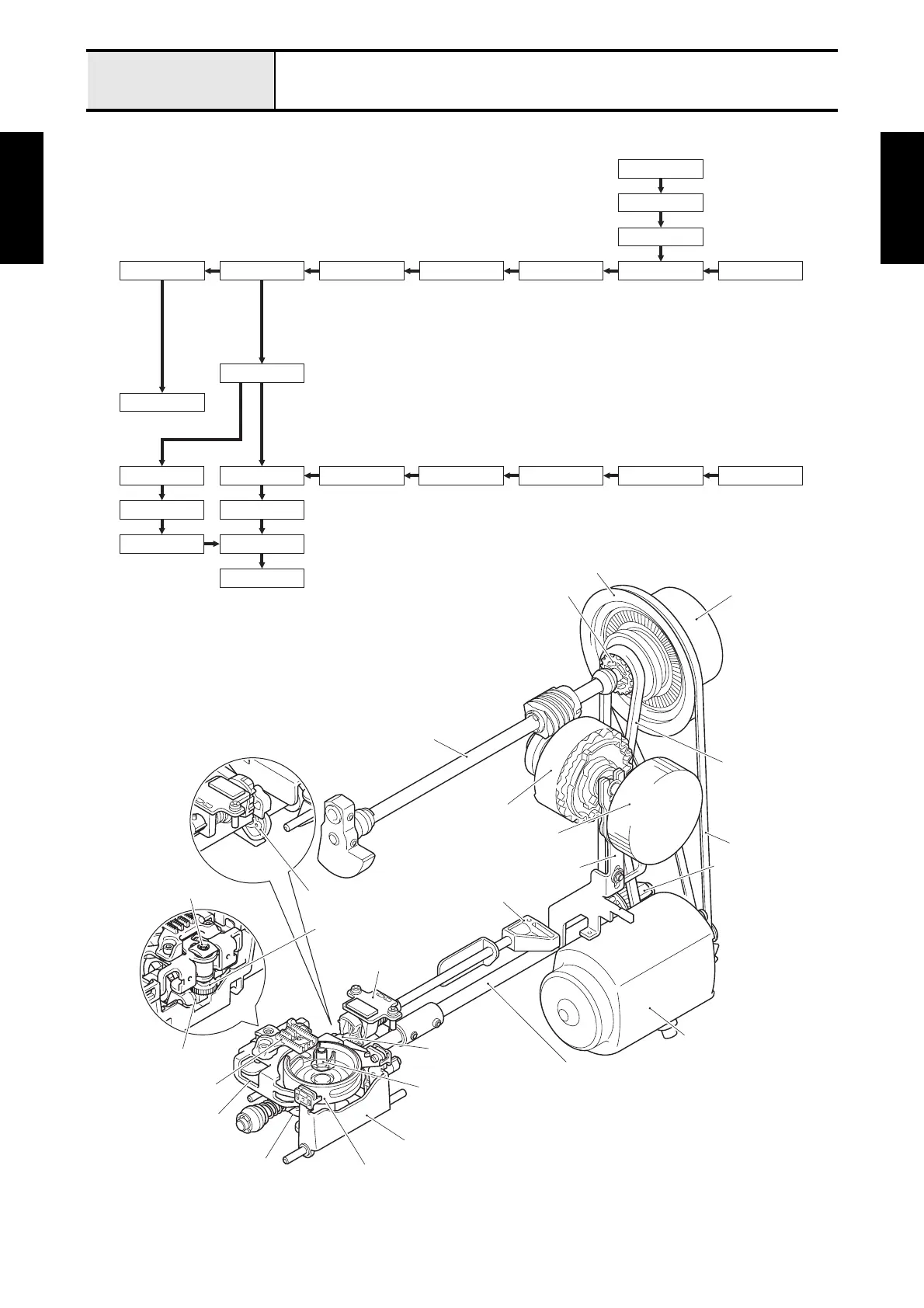

Driveline
(B) Movement of feed dog and rotary hook
Feed dog
Upper shaft
pulley
Upper shaft
Feed regulator plate
A / B
Pulley
Timing belt
Feed arm A
Feed stand Feed stand spring cap
Timing pulley
Motor belt
Main motor
Feed connecting
lever
Feed adjuster
Timing pulley DLower shaft
Pattern selecting dial Selecting cam
Lower shaft gear
Feed cam
Feed arm B
Timing pulley
Upper shaft pulley
Pulley
Timing pulley D
V feed attachment
Lower shaft
Lower shaft gear
Main motor
Timing belt
Motor belt
Feed cam
Feed connecting lever
Pattern selecting dial
Selecting cam
Feed regulator plate A / B
Upper shaft
Feed arm B
Feed arm A
Outer rotary hook assy
Feed stand
Feed adjuster
Feed dog
Outer rotary
hook assy
Vertical adjuster screw
Vertical lever
Feed stand spring cap
Vertical adjuster screw
Vertical lever
