Application of
Disassembly
3 - 9
Feed unit
Application o
f
Disassembly
Application of
Disassembly

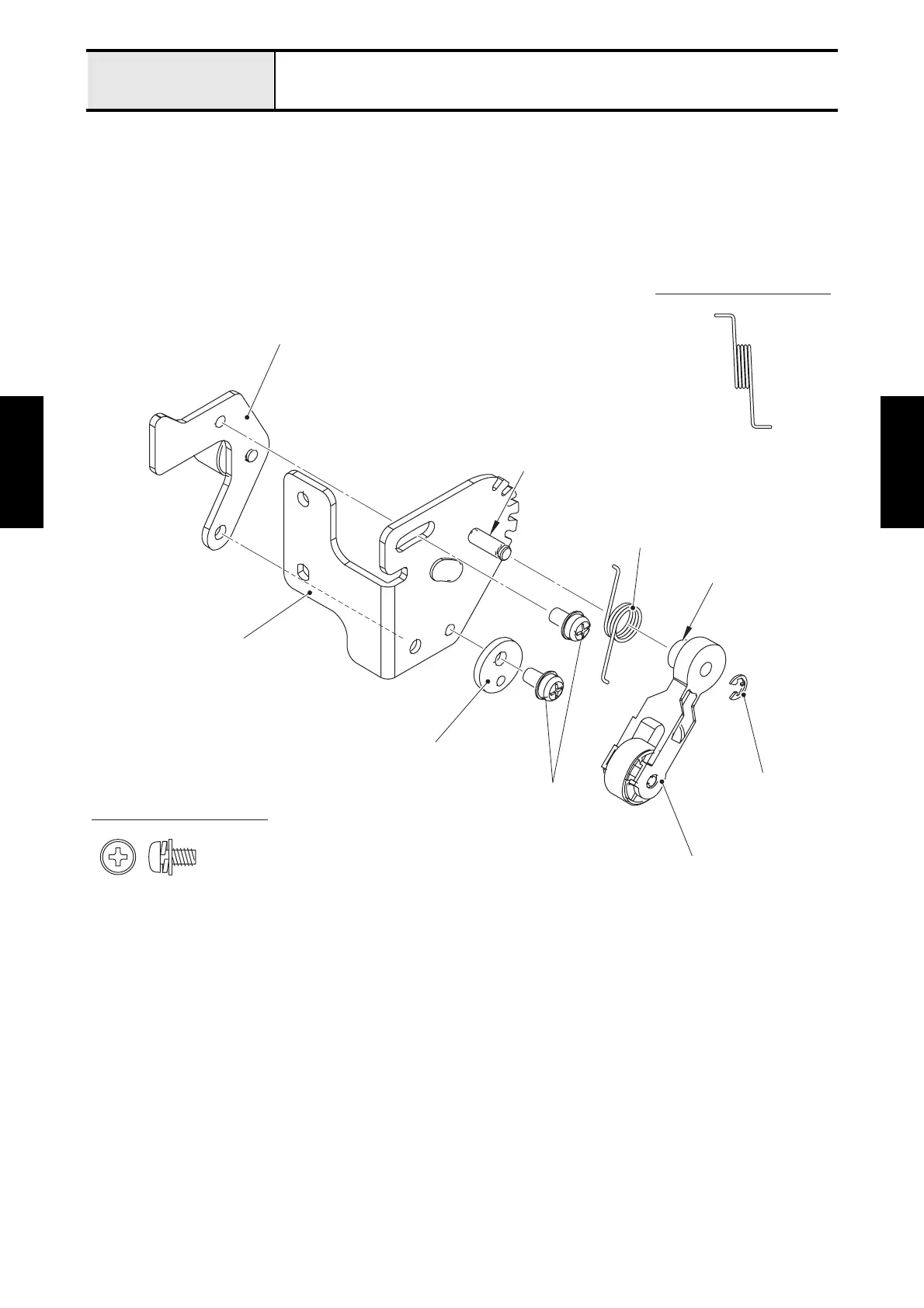

1 Disassembly of Tension pulley assy
1. Remove the retaining ring E3 to remove the motor tension pulley assy and the spring (XF3404) from
the shaft of tension pulley holder B assy.
2. Remove the screw (screw, pan (S/P washer) M4X8) to remove the M tension pulley stopper from the
tension pulley holder B assy.
3. Remove the screw (screw, pan (S/P washer) M4X8) to remove the tension pulley sub assy from the
tension pulley holder B assy.
Screw, Pan (S/P washer) M4X8
Spring (XF3404)
Tension pulley sub assy
Tension pulley holder B assy
M tension pulley stopper
Screw, pan (S/P washer) M4X8
Motor tension pulley assy
Retaining ring E3
Boss
Spring (XF3404)
Shaft
