Brother JS1700 User Manual

Application of
Assembly
3 - 39
Pattern selecting mechanism
Application o
f
Assembly
Application of
Assembly

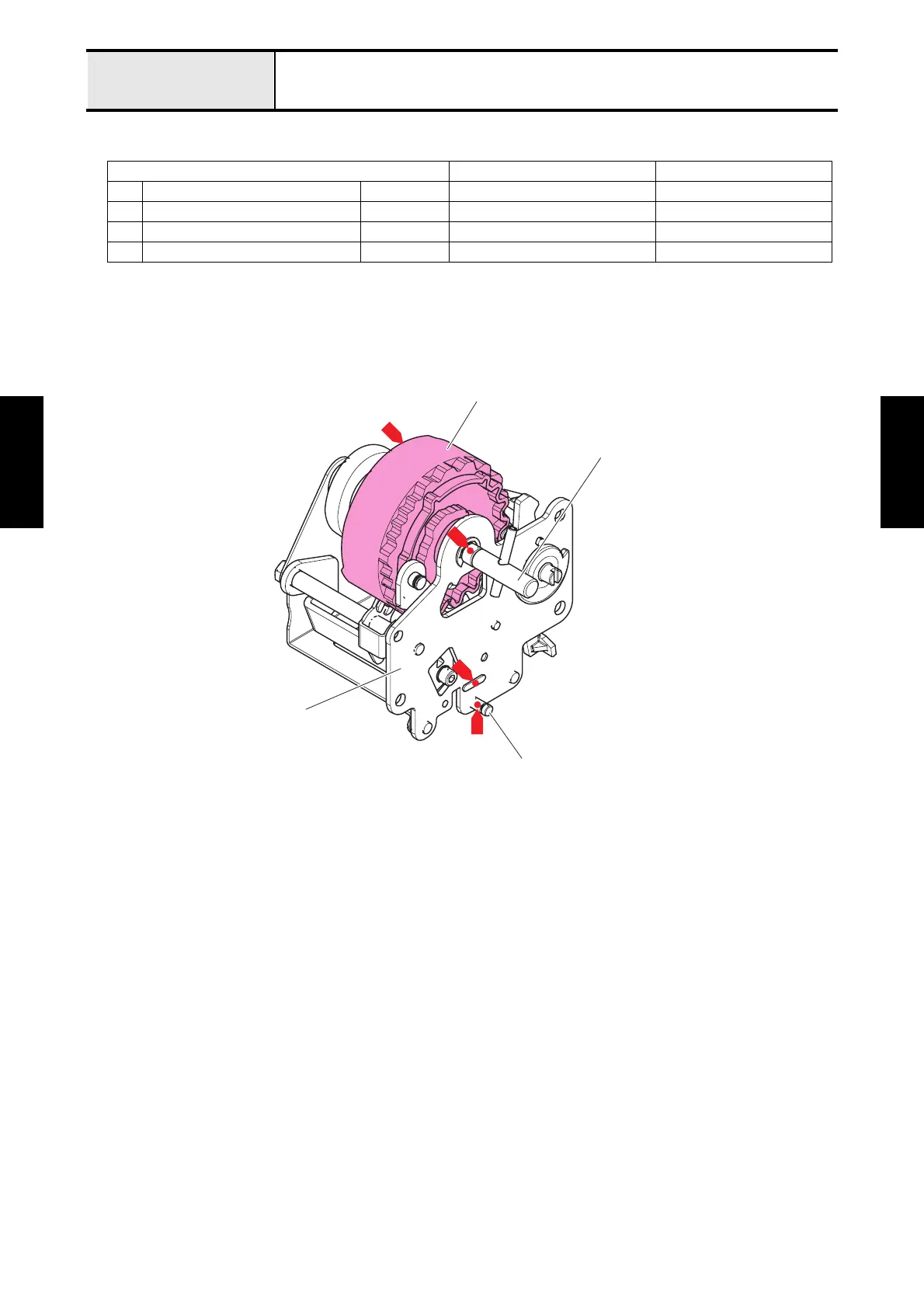

1 Lubrication
Lubrication point Lubricating oil type Quantity of lubrication
1 Selecting cam shaft 1 place EPNOC AP (N) 0 Rice-grain size
2 Feed regulator guide pin 1 place EPNOC AP (N) 0 Rice-grain size
3 Unit base F assy 1 place EPNOC AP (N) 0 Rice-grain size
4 Selecting cam 14 1 place EPNOC AP (N) 0 Light covering
Unit base F assy
Selecting cam shaft
2
Feed regulator guide pin
3
1
4
Selecting cam 14
