Basic of
Disassembly
Basic of Disassembly
2 - 6
Main frame and Covers
Basic of
Disassembly

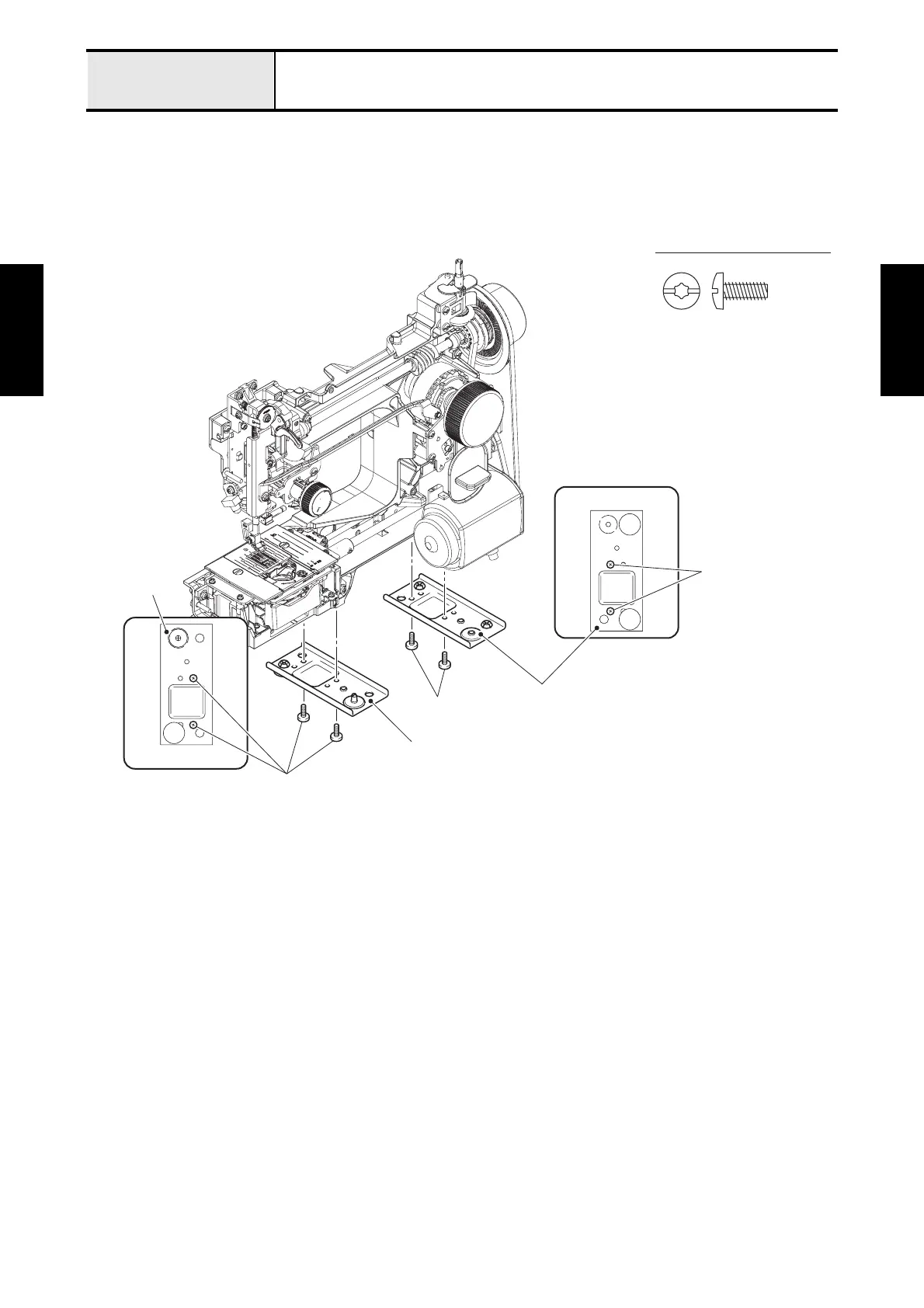

3. Remove the two screws (taptite, bind S M4X10) to remove the base plate L from the bottom side of arm
bed.
4. Remove the two screws (taptite, bind S M4X10) to remove the base plate R from the bottom side of
arm bed.
Refer to 3 - 5 Disassembly of Base plate L/R.
Taptite, Bind S M4X10
Taptite, bind S M4X10
Base plate R
Base plate L
<bottom side>
<bottom side>
Taptite, bind S M4X10
Taptite, bind S M4X10
Base plate L
