Basic of Disassembly
2 - 22
Bobbin winder, Upper shaft, Needle-presser module
Basic of
Disassembly
Basic of
Disassembly

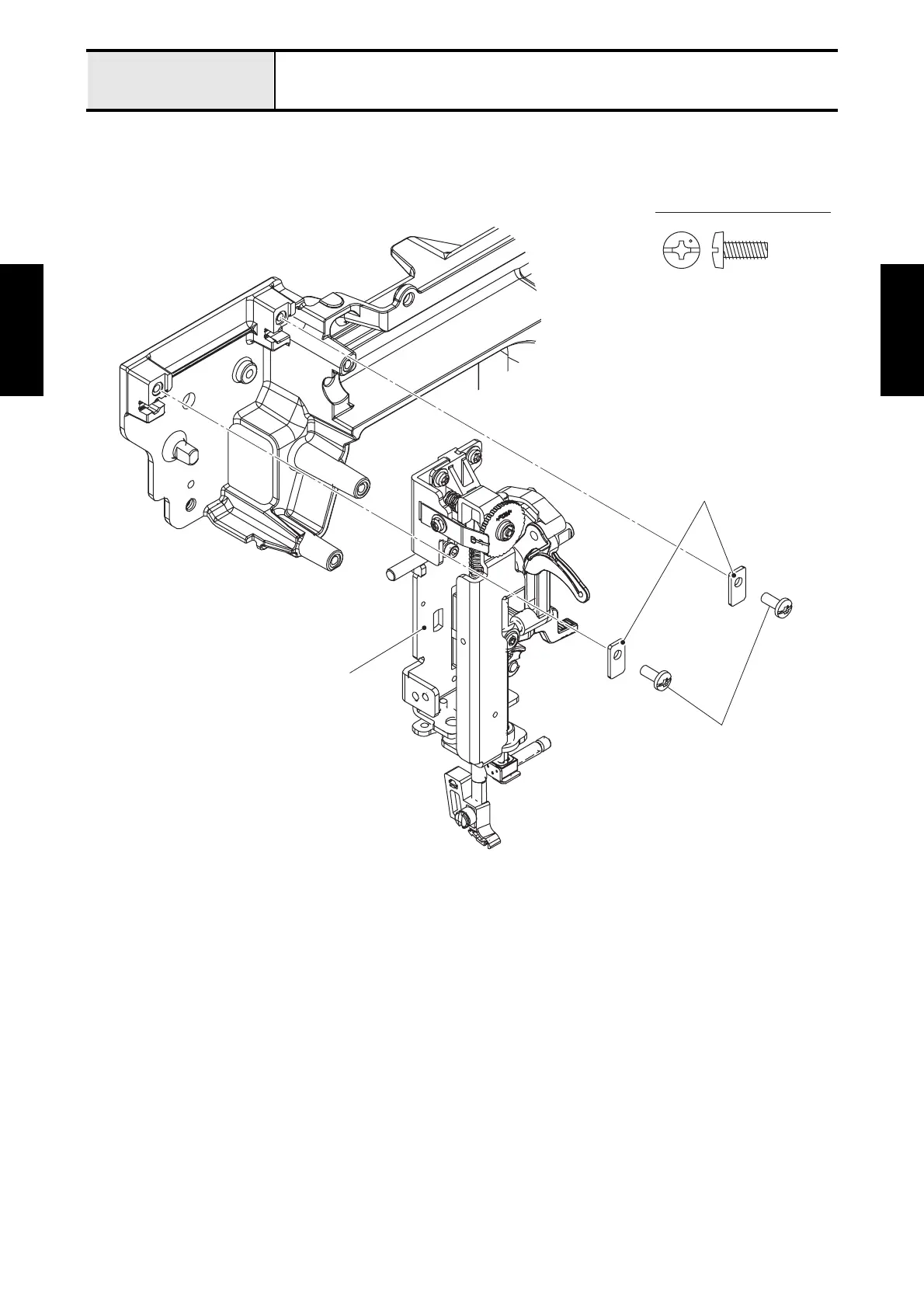

3. Remove the two screws (screw, bind M4X10) to remove the two presser plates from the arm bed. And
remove the needle-presser module from the arm bed.
→Refer to 3 - 26 Disassembly of Needle-presser module.
Screw, Bind M4X10
Needle-presser module
Presser plates
Screw, bind M4X10
