Brother JS1700 User Manual

Application of
Disassembly
3 - 13
Feed unit
Application o
f
Disassembly
Application of
Disassembly

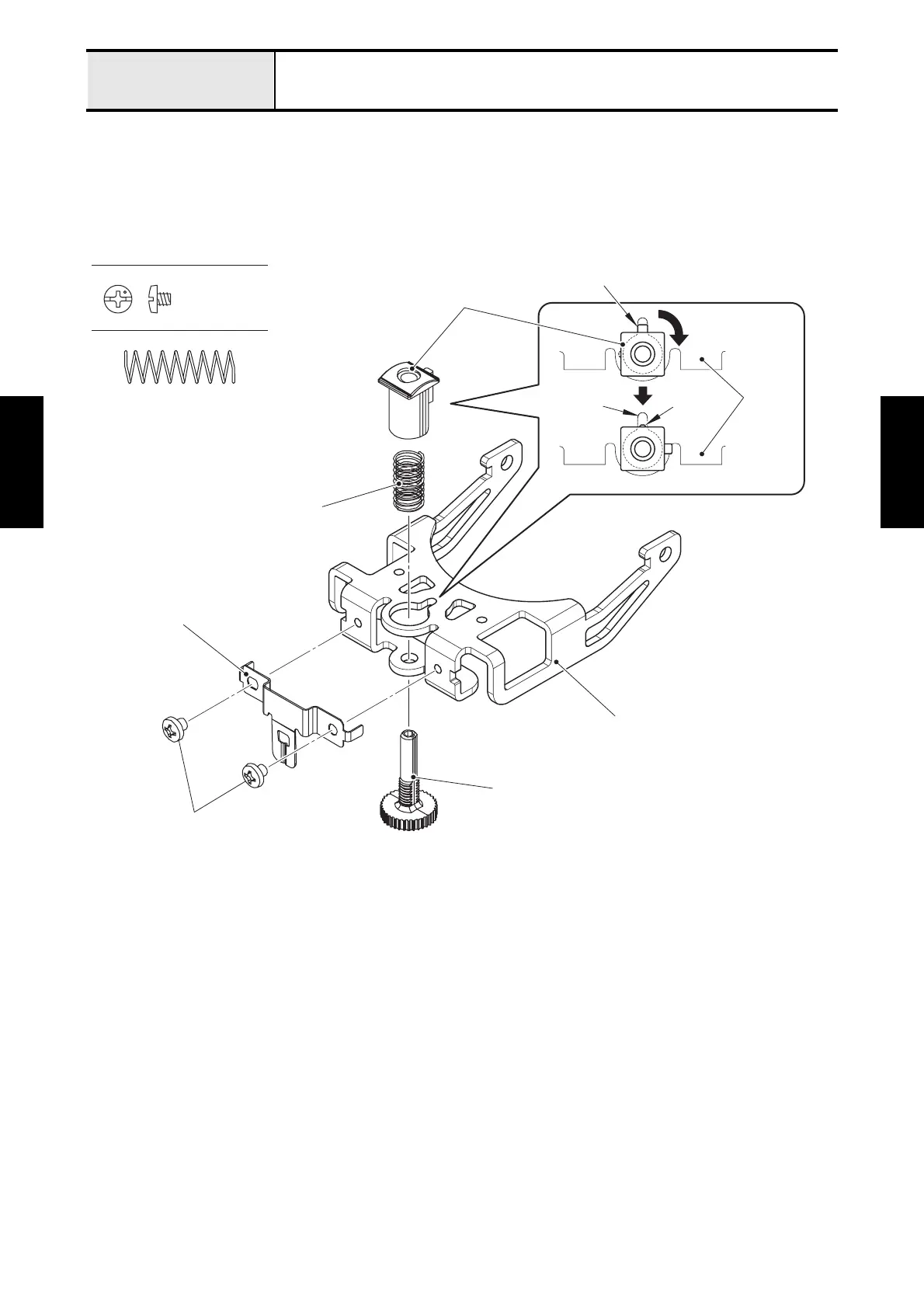

9. Remove the two screws (screw, bind M3X3) to remove the vertical feed spring plate from the feed
stand.
10.Turn the feed stand spring cap 90 degrees in the direction of the arrow to align the tab “B” of feed stand
spring cap with the notch part of feed stand, and remove it from the feed stand.
11.Remove the feed stand spring (XF3457) from the vertical adjuster screw. And remove the vertical
adjuster screw from the feed stand.
Screw, Bind M3X3
Feed stand spring (XF3457)
Feed stand
Feed stand spring cap
Feed stand spring
(XF3457)
Vertical feed spring plate
Screw, bind M3X3
Vertical adjuster screw
Tab A
Tab B
Feed
stand
Notch part
90°
