KNOWING YOUR SEWING MACHINE
———————————————————————————————————————
5
1 KNOWING YOUR SEWING MACHINE
NAMES OF MACHINE PARTS AND THEIR FUNCTIONS

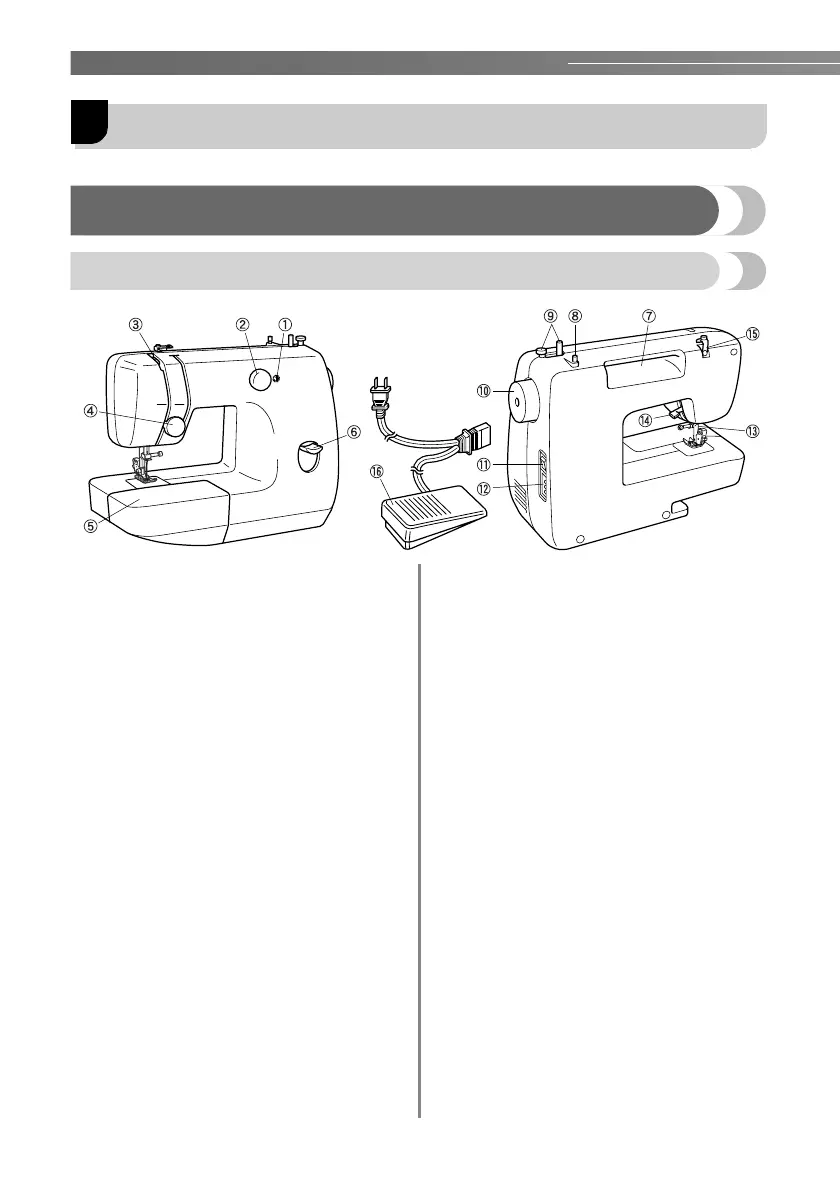

The main parts
a Buttonhole fine-adjusting screw (page 32)
Turn the buttonhole fine-adjusting screw to adjust
buttonhole stitching when it is not uniform.
b Pattern selection dial (page 22)
Turn the pattern selection dial to select the number of
the stitch that you want to use.
c Thread take-up lever (page 13)
d Upper tension control dial (page 24)
This controls the tension of the upper thread.
e Flat bed attachment with accessory storage (page 6 and
26)
f Reverse sewing lever (page 23)
Press and hold down the reverse sewing lever to sew in
the opposite direction.
g Built-in handle
h Spool pin (page 10 and 13)
The spool pin holds the spool of thread.
i Bobbin winder (page 10)
The bobbin winder winds thread onto the bobbin for
use as the lower thread.
j Handwheel
Use the handwheel to manually raise and lower the needle.
k Main power/sewing light switch (page 8)
Use this switch to turn on and off the main power and
sewing light.
l Foot controller jack/jack
Insert the foot controller plug into the foot controller
jack, which also supplies power to this machine.
m Thread cutter (page 23)
Pass the threads through the thread cutter to cut them.
n Presser foot lever (page 13)
Use the presser foot lever to raise and lower the presser foot.
o Bobbin winding pre-tension disc/thread guide (page 10
and 13)
The thread guide/bobbin winding pre-tension disc is
used when winding the thread onto the bobbin and
threading the machine.
p Foot controller (page 9)
Use the foot controller to control the sewing speed and
to start and stop sewing.
Part code;
XC7359-021 (110/120V Area), XC7438-321 (220/240V Area),
XC7456-321 (U.K.), XE0629-001 (Australia, New Zealand),
XD0852-021 (Korea), XC7438-321 (Russia),
XD0115-121(Argentina), XE3414-001(Brazil(120V)),
XE4302-001(Brazil(220V)),XE3447-001(Taiwan)
