3-51

Confidential

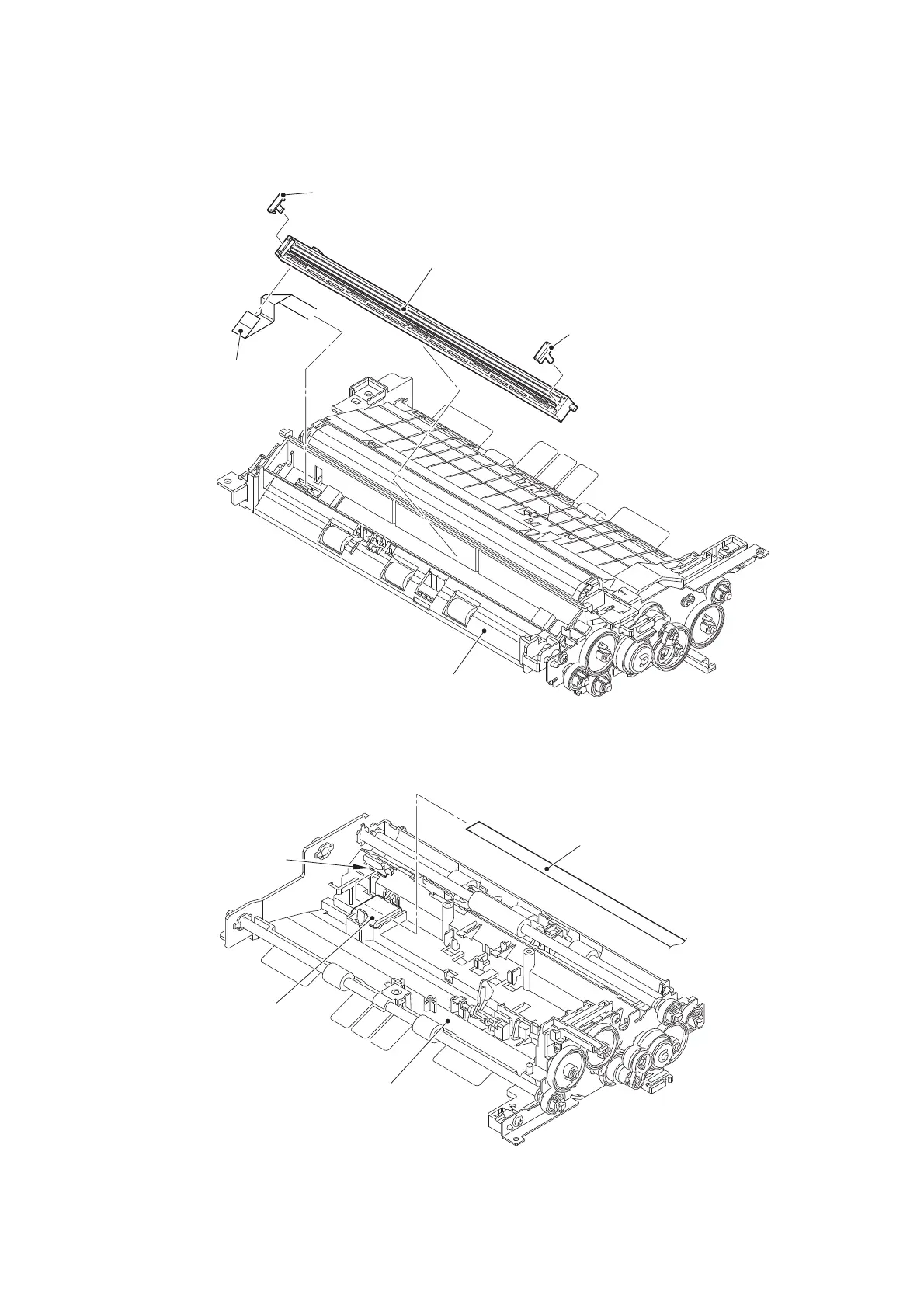

(7) Remove the Second side CIS unit from the Lower document chute, and disconnect the

Second side CIS flat cable from the Second side CIS unit.

(8) Remove the CIS spacer R and the CIS spacer F from the Second side CIS unit.

Fig. 3-42

(9) Pull out the Second side CIS flat cable from the Hole and the Flat core, and remove it from

the Lower document chute.

Fig. 3-43

Harness routing: Refer to “4. Lower document chute”.

Lower document chute

CIS spacer F

CIS spacer R

Second side CIS unit

Second side

CIS flat cable

Lower document chute

Hole

Second side

CIS flat cable

Flat core
