9.13 Panel unit (For Touch panel models)

9.13.1 Panel unit

(1) Remove the four Taptite cup B M3x10 screws.

(2) Release each Hook to remove the Panel unit. Disconnect the Panel flat cable from the

Panel PCB ASSY.

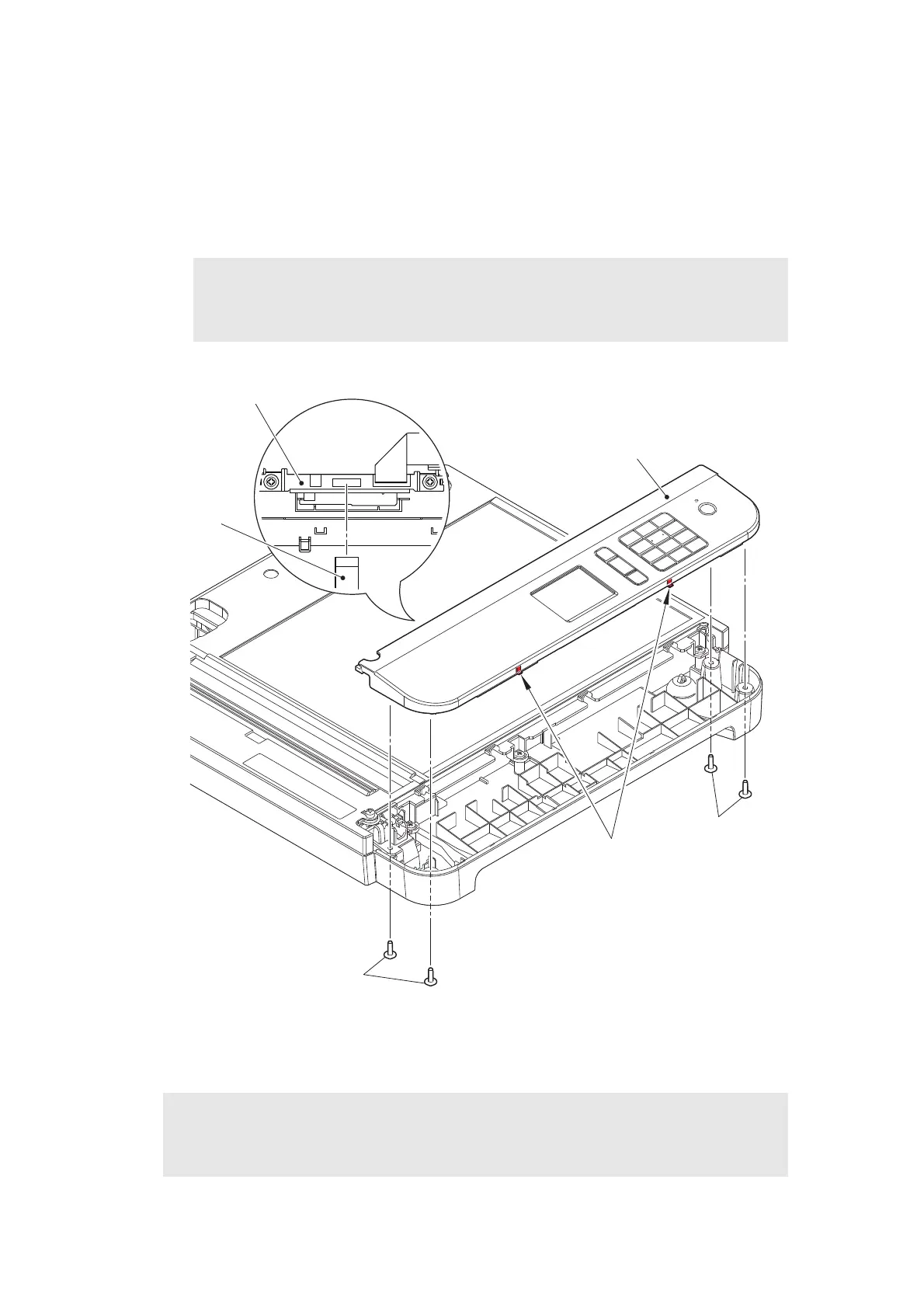

Fig. 3-47

Harness routing: Refer to “3. Document scanner unit”.

Note:

• When removing the Panel unit, DO NOT pull the Panel unit strongly because it is

connected to the Panel flat cable.

Assembling Note:

• If you replaced the Panel unit, refer to “4. IF YOU REPLACE THE PANEL UNIT OR

PANEL CONTROL PCB” in Chapter 4 to configure settings.

Panel PCB ASSY

Panel unit

Hooks

Taptite cup B M3x10

Panel flat cable
