3-54

Confidential

(2) Remove the three Taptite cup B M3x10 screws to remove the Hinge arm L and the Hinge L

from the Document cover ASSY.

(3) Remove the three Taptite cup B M3x10 screws to remove the Hinge arm R and the Hinge R

from the Document cover ASSY.

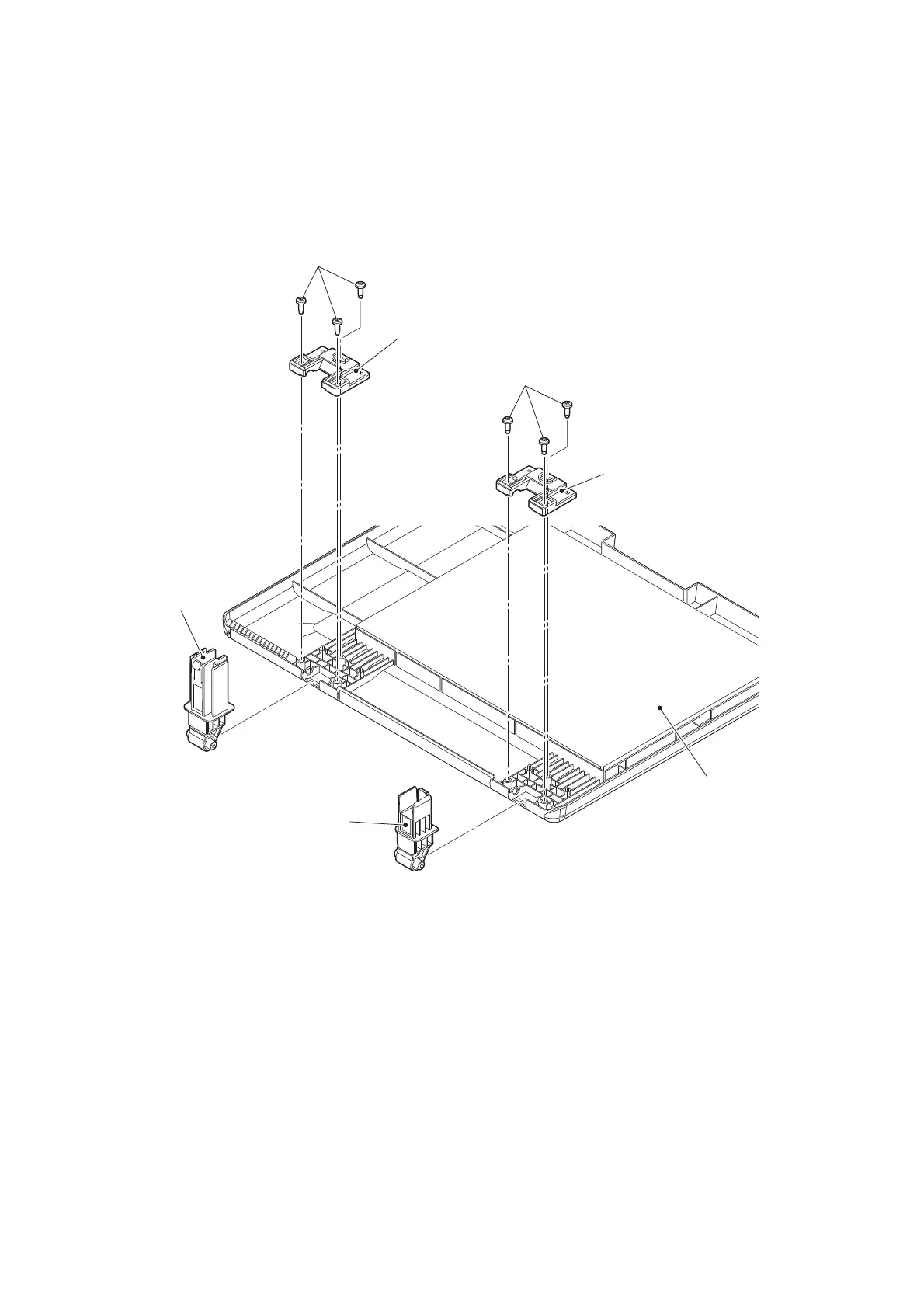

Fig. 3-46

Taptite cup B M3x10

Hinge arm R

Hinge arm L

Document cover ASSY

Hinge L

Hinge R

Default Chapter4
