3-65

Confidential

<Attachment Procedure>

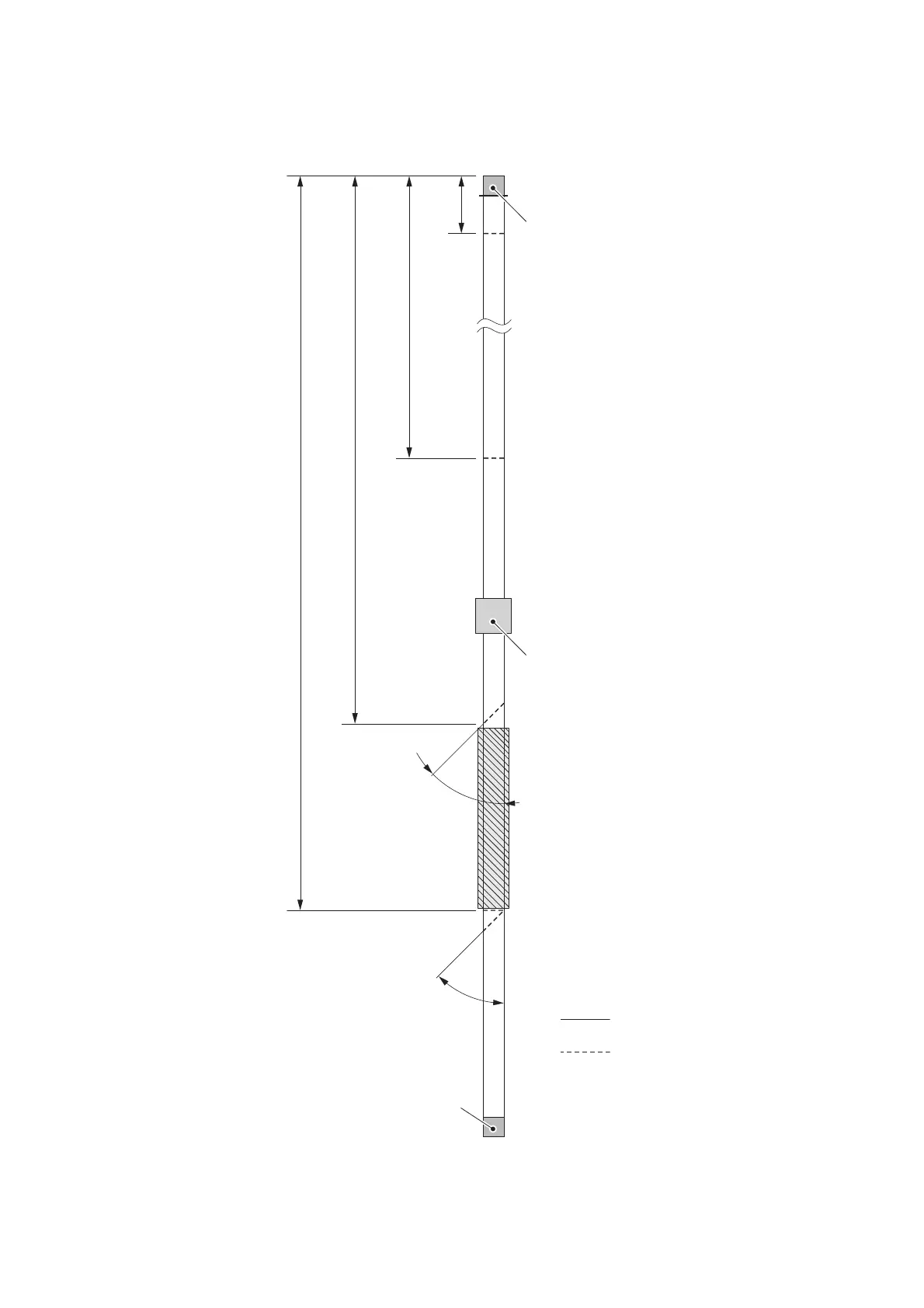

1) Fold the First side CIS flat cable as shown the illustration below.

Fig. 3-57

<CIS side>

<Main PCB side>

478±1

381±1

242±1

30±1

Reinforcing plate

Reinforcing plate

Flat core

45°

45°

Mountain fold

Valley fold
