App. 3-2
Confidential

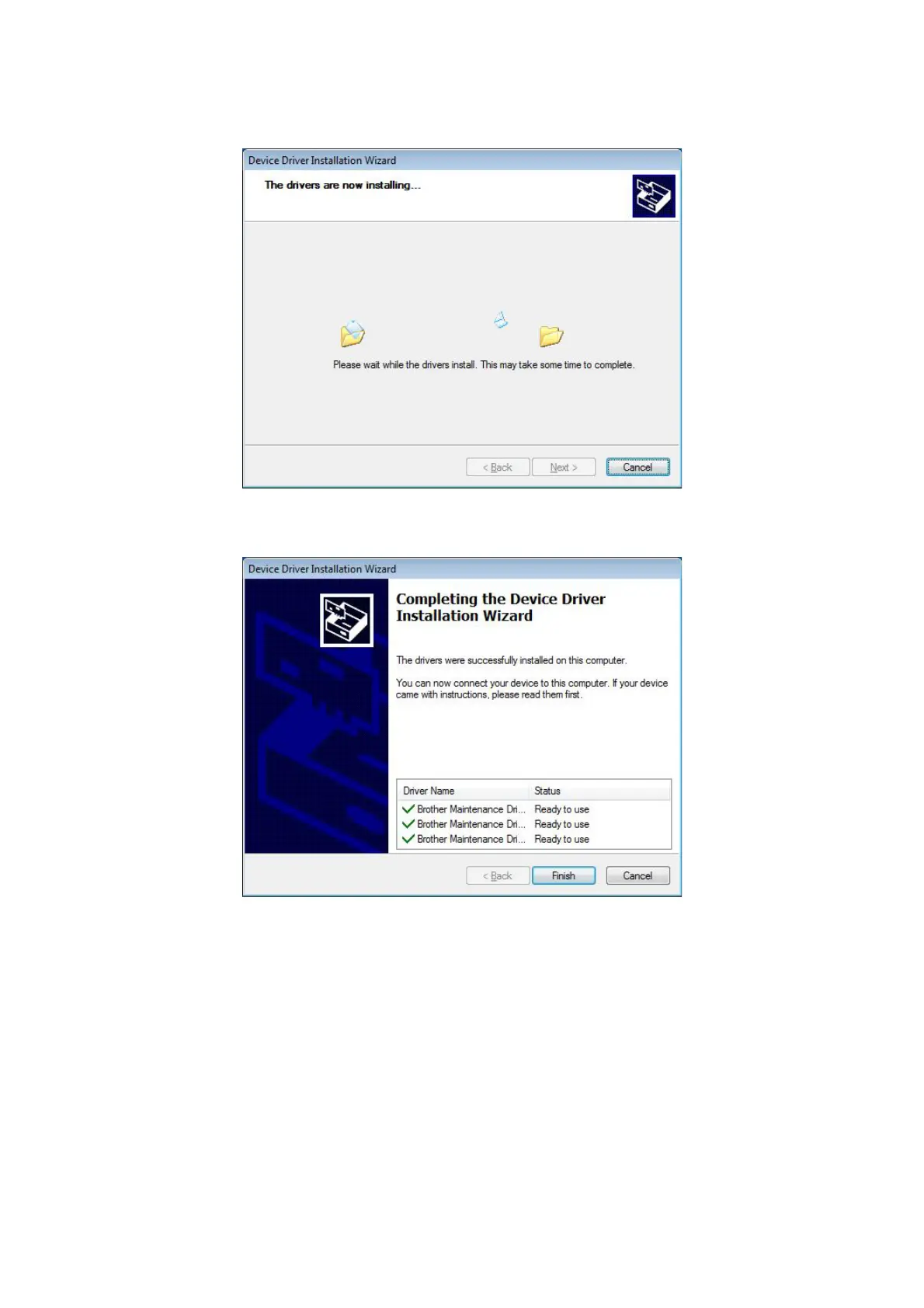

The following screen is disp
layed during installation.
(4)
W
ait for the following screen to
appear and click [Finish].
(5)
Plug th
e AC
cord of the machin
e
into an electrical ou
tlet.
(6)
Enter the maintenance mode.
(Refer to
“1.1
How to Enter Maintenance Mod
e” in Chapter 5
.)
(7)
Connect the machine to your
computer using a USB cable
and the installation will be
performed automatically
.
339
