Brother MFC-L2710DN Service Manual

3-93
Confidential
9.31 Paper feed motor / Paper feed motor flat cable
(1) Release the Paper feed motor flat cable and the Front cover sensor harness from the
securing fixtures.
(2) Remove the Taptite bind B M4x12 screw. Release the Hook, and slide the Flat cable guide
in the direction of the arrow to remove it from the Motor drive sub ASSY.
(3) Remove the Screw pan (S/P washer) M3x12DB, and remove the Laser L FG plate from the
Motor drive sub ASSY.
(4) Remove the three Taptite bind B M4x12 screws and the Taptite cup S M3x8 SR screw, and
remove the Motor drive sub ASSY from the Frame L unit.

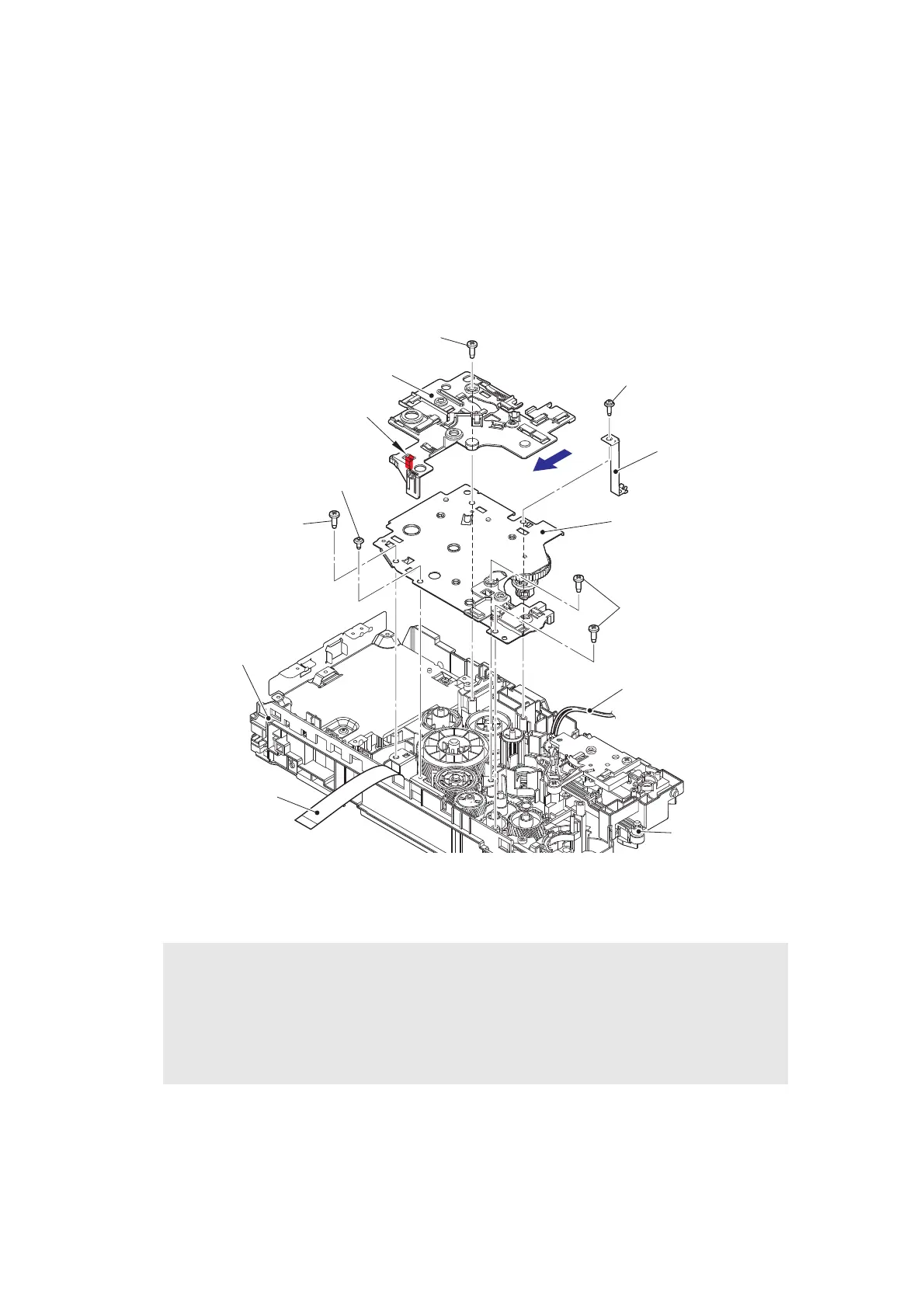

Fig. 3-92
Harness routing: Refer to “10. Frame L unit (Manual feed models)”.
Assembling Note:
• Be careful not to bend the Laser L FG plate.
• Attach the Motor drive sub ASSY to the Frame L unit while the Develop joint link is
pushed. Pull the Develop joint link back before tightening the screws for the Motor drive
sub ASSY. Failure to follow the procedure above may get the Develop joint link caught
and jammed.
Screw pan (S/P washer)
M3x12DB
Flat cable guide
Laser L FG plate
Taptite bind B M4x12
Motor drive sub ASSY
Hook
Taptite bind B M4x12
Taptite bind B M4x12
Frame L unit
Develop joint link
Taptite cup S M3x8 SR
Front cover sensor harness
Paper feed motor flat cable

Brother MFC-L2710DN Specifications

General

Internal memory	64 MB
Built-in processor	Yes
Card reader integrated	No
Sound pressure level (printing)	48 dB
Sound pressure level (quiet mode)	44 dB
Scan to	E-mail, File, Image, OCR
Scan drivers	SANE, TWAIN, WIA
Scanner type	ADF scanner
Duplex scanning	-
Grayscale levels	256
Maximum scan resolution	19200 x 19200 DPI
Document formats supported	PDF
Optical scanning resolution	600 x 600 DPI
Optical scanning resolution (black)	1200 x 1200 ppi
N-up printing	2, 4, 9, 16, 25
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Display	LCD
Product color	Black, Grey
Market positioning	Home & office
Display number of lines	2 lines
Display number of characters	16
Faxing	Mono faxing
Fax memory	500 pages
Modem speed	33.6 Kbit/s
Fax forwarding to	PC
Cabling technology	10/100Base-T(X)
Security algorithms	SMTP-AUTH, SNMPv3, SSL/TLS
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print, Mopria Print Service
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA (Auto IP), risoluzione dei nomi WINS/NetBIOS, DNS Resolver, mDNS, risponditore LLMNR, LPR/LPD, Custom Raw Port/Port9100, SMTP Client, IPP/IPPS, server FTP, SNMPv1/v2c/v3, server HTTP/HTTPS, client/server TFTP, ICMP, servizi web (stampa), client SNTP
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, risponditore LLMNR, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, client SMTP, server FTP, SNMPv1/v2c/v3, server HTTP/ HTTPS, client/server TFTP, ICMPv6, client SNTP, servizi web (stampa)
Copier resize	25 - 400 %
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4
Time to first copy (black, normal)	10 s
Copy speed (black, normal quality, A4)	30 cpm
Package depth	517 mm
Package width	580 mm
Package height	434 mm
Package weight	14700 g
Printing colors	Black
Duplex functions	Print
Maximum duty cycle	15000 pages per month
Recommended duty cycle	0 - 2000 pages per month
Number of print cartridges	1
Page description languages	GDI
Paper input type	Paper tray
Total input capacity	250 sheets
Total output capacity	120 sheets
Auto document feeder (ADF) input capacity	50 sheets
Custom media width	76.2 - 215.9 mm
Custom media length	127 - 355.6 mm
Duplex media weight	60 - 105 g/m²
Paper tray media types	Envelopes, Labels
Paper tray media weight	60 - 163 g/m²
ISO A-series sizes (A0...A9)	A4, A5, A6
Maximum ISO A-series paper size	A4
Power consumption (off)	0.03 W
Power consumption (ready)	42 W
Power consumption (sleep)	6.2 W
Power consumption (average operating)	440 W
Energy Star Typical Electricity Consumption (TEC)	1.232 kWh/week
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Included cartridge capacity (black)	700 pages
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Harmonized System (HS) code	84433100
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	398.5 mm
Width	410 mm
Height	318.5 mm
Weight	11800 g
