3 Document scanner unit

Harness colors are subject to change for some reason.

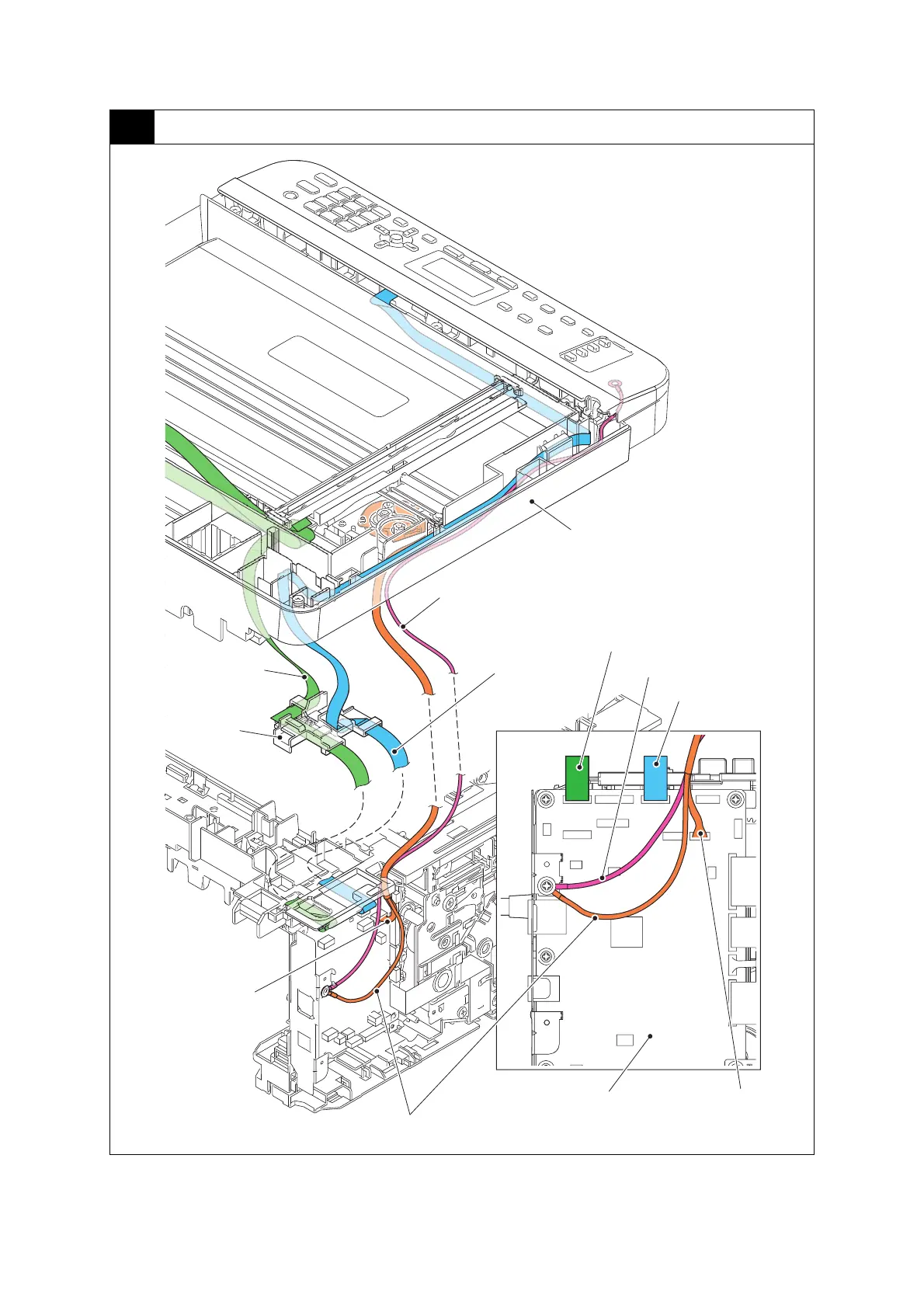

Document scanner unit

First side CIS flat cable

Document scanner

motor harness

(WH)

Panel flat cable

First side CIS

flat cable

Panel flat cable

FB ground harness (BK)

Document scanner

motor harness

(WH)

Main PCB ASSY

ADF FFC holder

Panel ground harness (BK)
