Brother MFC-L2712DW User Manual

3-90
Confidential
9.30 Frame L unit
 Manual feed models
(1) Remove the two Taptite bind B M4x12 screws and the Screw pan (S/P washer) M3x12DB
screw, and remove the Front chute ASSY.
(2) Release the LVPS harness, the Cartridge sensor harness (only for models without Toner
box) and the Paper feed sensor harness from the securing fixtures.
(3) Remove the Regist FG spring from the Motor drive sub ASSY and the Conductive bushing 5.
(4) Use a flat-blade screwdriver or similar tool to release the Hook from the Hole, and remove
the Conductive bushing 5.
(5) Release the Hook, and remove the Feeder gear 34.

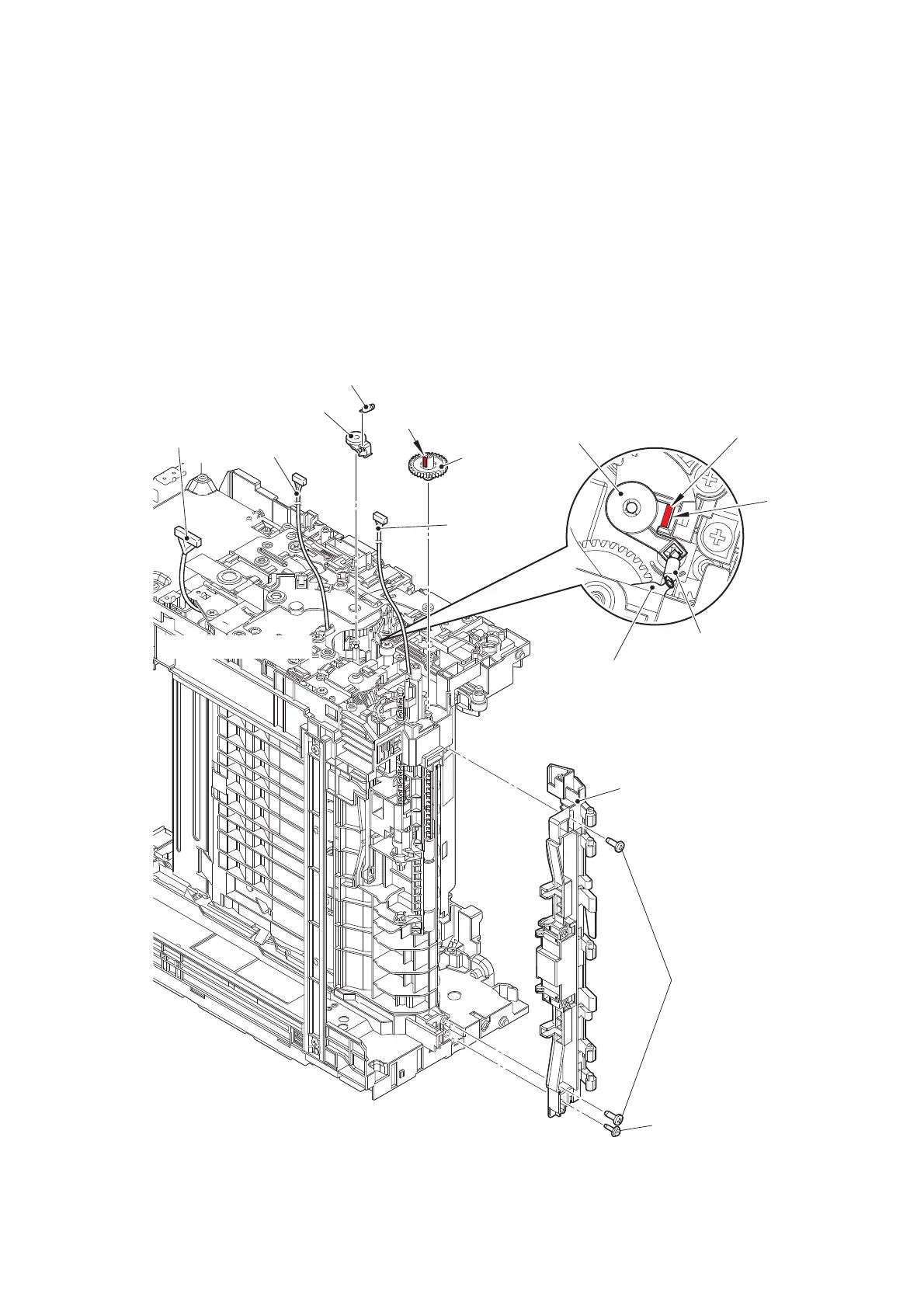

Fig. 3-89
Harness routing: Refer to “10. Frame L unit (Manual feed models)”.
Taptite bind B M4x12
Front chute ASSY
Hook
Regist FG spring
Conductive bushing 5
Conductive bushing 5
Feeder gear 34
<Front side>
Hook
Screw pan (S/P washer)
M3x12DB
Motor drive sub ASSY
Regist FG spring
LVPS
harness
Paper feed
sensor harness
<Upper side of Frame L>
Hole
Cartridge sensor harness
(Only for models without
Toner box)

Brother MFC-L2712DW Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Duplex print speed (black, normal quality, A4/US Letter)	15 ppm
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
N-in-1 copy function (N=)	2, 4
Copy speed (black, normal quality, A4)	30 cpm
Scan to	E-mail, File, Image, OCR
Grayscale levels	256
Output color depth	24 bit
Scan speed (black)	23.6 ppm
Scan speed (color)	7.5 ppm
Output grayscale depth	8 bit
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Fax speed dialing (max numbers)	200
Digital sender	-
Printing colors	Black
Maximum duty cycle	15000 pages per month
Page description languages	GDI
Display	LCD
Market positioning	Home & office
Display number of lines	2 lines
Paper input type	Paper tray
Total input capacity	250 sheets
Total output capacity	120 sheets
Total number of input trays	1
Auto document feeder (ADF) input capacity	50 sheets
Maximum print size	215 x 355 mm
Paper tray media types	Bond paper, Envelopes, Plain paper, Recycled paper
Paper tray media weight	60 - 163 g/m²
ISO A-series sizes (A0...A9)	A4, A5, A6
Multi-purpose tray media types	Executive, Letter
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 230 g/m²
Auto Document Feeder (ADF) media weight	64 - 105 g/m²
Sound power level (standby)	30 dB
Sound pressure level (printing)	48 dB
Sound pressure level (quiet mode)	44 dB
USB connector	USB Type-A
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	64-bit WEP, 128-bit WEP, SMTP-AUTH, SNMPv3, SSL/TLS, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPA2-TKIP
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print, Mopria Print Service
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, SMTP Client, IPP/IPPS, FTP Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Print), SNTP Client
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, SMTP Client, FTP Server, SNMPv1/v2c/v3, HTTP/ HTTPS server, TFTP client and server, ICMPv6, SNTP Client, Web Services (Print)
Power consumption (off)	0.03 W
Power consumption (ready)	42 W
Power consumption (sleep)	6.2 W
Power consumption (printing)	440 W
Power consumption (PowerSave)	260 W
Power consumption (average operating)	- W
Energy Star Typical Electricity Consumption (TEC)	1.232 kWh/week
Sustainability certificates	Blue Angel, ENERGY STAR
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Windows operating systems supported	Windows 7, Windows 8
Package depth	517 mm
Package width	580 mm
Package height	434 mm
Package weight	14900 g
Included cartridge capacity (black)	1 pages

Weight and Dimensions

Depth	398.5 mm
Width	410 mm
Height	318.5 mm
