Brother MFC-L5700DN User Manual

Home > Introduction to Your Brother Machine > Control Panel Overview
Control Panel Overview
4
321
5

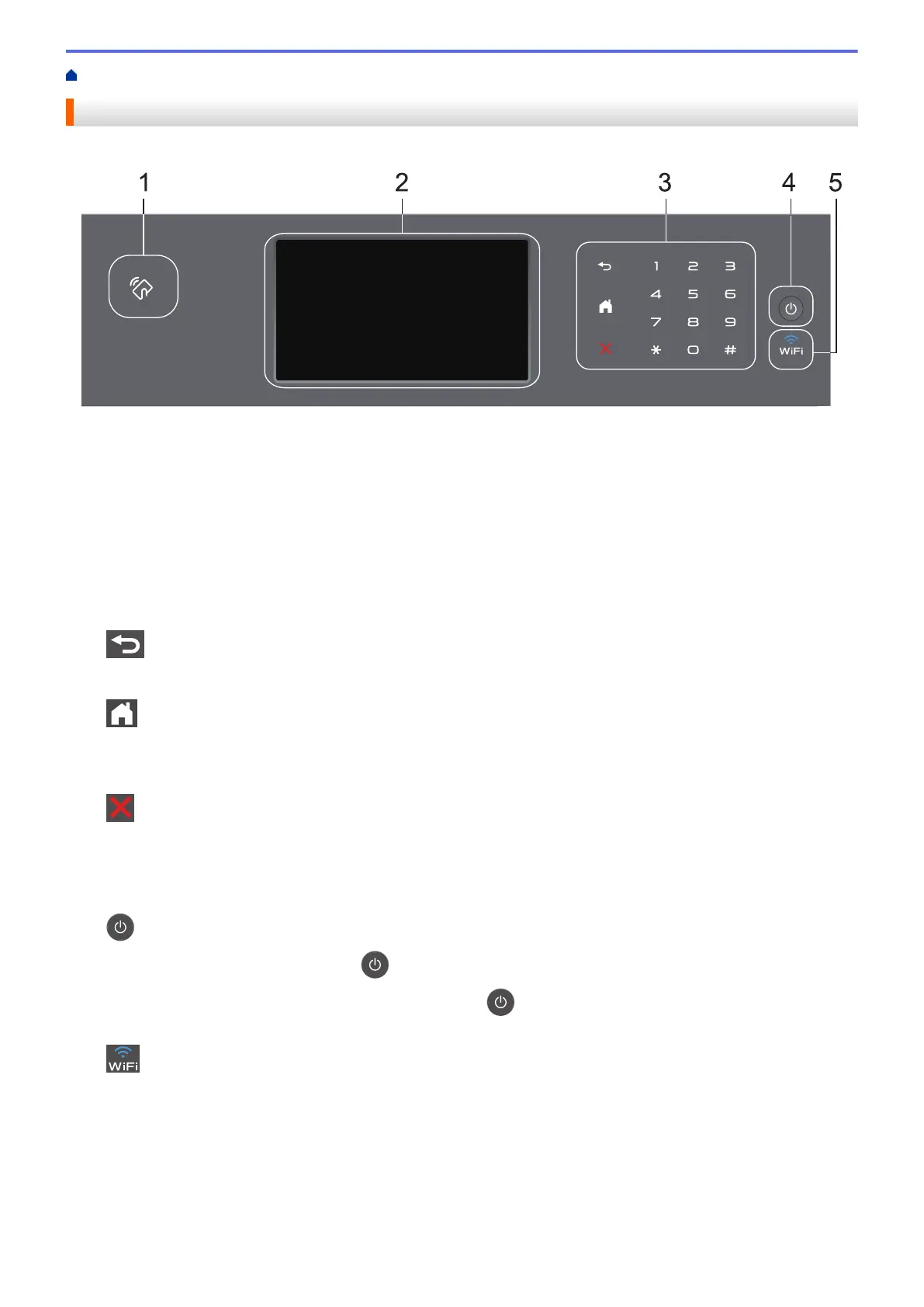

1. Near Field Communication (NFC) Reader (available only for certain models)
You can use card authentication by touching the IC card to the NFC Reader on the control panel.
If your Android
™
device supports the NFC feature, you can print from your device or scan documents to your
device in the same way.
2. Touchscreen Liquid Crystal Display (LCD)
Access menus and options by pressing them on the Touchscreen.
3. Touchpanel
(Back)
Press to go back to the previous menu.
(Home)
• Press to return to the Home screen.
• While the machine is in Sleep Mode, the Home icon blinks.
(Cancel)
Press to cancel an operation (available when lit).
Dial Pad (Numerical buttons)
Press the numbers on the Touchpanel to dial telephone or fax numbers and to enter the number of copies.
4.
Power On/Off
• Turn the machine on by pressing
.
• Turn the machine off by pressing and holding down . The LCD displays [Shutting Down] for a few
seconds before going off. If you have an external telephone or TAD connected, it is always available.
5.
(WiFi)
(For infrastructure mode)
When the WiFi light is on, your Brother machine is connected to a wireless access point. When the WiFi light
blinks, the wireless connection is down, or your machine is in the process of connecting to a wireless access
point.
(For Ad-Hoc mode)
The WiFi LED is always off.
8

Brother MFC-L5700DN Specifications

General

N-up printing	2, 4, 9, 16, 25
Secure printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Duplex print speed (black, normal quality, A4/US Letter)	10 ppm
Scan to	E-mail, E-mail Server, FTP, File, Image, OCR, USB
Scan drivers	ICA, ISIS, SANE, TWAIN, WIA
Scanner type	Flatbed & ADF scanner
Grayscale levels	256
Input color depth	48 bit
Maximum scan area	A4 (210 x 297) mm
Output color depth	24 bit
Scan speed (black)	24 inch/min
Scan speed (color)	20 inch/min
Image formats supported	JPG, TIF
Maximum scan resolution	19200 x 19200 DPI
Document formats supported	PDF
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4
Copy speed (black, normal, US Letter)	42 cpm
Copy speed (black, normal quality, A4)	40 cpm
Faxing	Mono faxing
Fax memory	500 pages
Modem speed	33.6 Kbit/s
Fax coding methods	JBIG
Fax transmission speed	2.5 sec/page
Fax speed dialing (max numbers)	300
Digital sender	No
Printing colors	Black
Maximum duty cycle	50000 pages per month
Recommended duty cycle	0 - 3500 pages per month
Number of print cartridges	1
Page description languages	BR-Script 3, Epson FX, IBM ProPrinter, Microsoft XPS, PCL 6, PDF 1.7
Display	TFT
Control type	Touch
Product color	Black, Graphite
Display diagonal	3.7 \
Market positioning	Business
Email protocols	IMAP4, POP3
Cabling technology	10/100Base-T(X)
Security algorithms	64-bit WEP, 128-bit WEP, 802.1x RADIUS, APOP, EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, HTTPS, IPPS, IPSEC, LEAP, PEAP, SMTP-AUTH, SNMP, SSL/TLS, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK
Ethernet LAN data rates	10, 100 Mbit/s
Online services supported	Box, Dropbox, Evernote, Facebook, Flickr, Google Drive, OneDrive, OneNote, Picasa
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print, Mopria Print Service
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, POP3, SMTP Client, IPP/IPPS, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Print/Scan), SNTP Client, LDAP, IMAP4
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, POP3*, SMTP Client, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c, HTTP/HTTPS server, TFTP client and server, ICMPv6, SNTP Client, LDAP, Web Services (Print/Scan), IMAP4
Processor family	ARM
Sound power level (standby)	35 dB
Sound pressure level (copying)	54 dB
Sound pressure level (quiet mode)	52 dB
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Package depth	520 mm
Package width	545 mm
Package height	641 mm
Package weight	20100 g
Power consumption (off)	0.04 W
Power consumption (sleep)	7.5 W
Power consumption (standby)	34 W
Power consumption (PowerSave)	390 W
Power consumption (average operating)	645 W
Energy Star Typical Electricity Consumption (TEC)	1.832 kWh/week
Sustainability certificates	Nordic Swan Ecolabel, Blue Angel, ENERGY STAR
Envelopes sizes	10, C5, DL, Monarch
Custom media width	76.2 - 215.9 mm
Custom media length	127 - 355.6 mm
Paper tray media types	Plain paper, Recycled paper, Thick paper, Thin paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Multi-purpose tray media types	Bond paper, Envelopes, Labels, Letterhead, Plain paper, Recycled paper, Thick paper, Thicker paper, Thin paper
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 200 g/m²
Auto Document Feeder (ADF) media weight	64 - 90 g/m²
Total input capacity	250 sheets
Total output capacity	150 sheets
Total number of input trays	-
Auto document feeder (ADF) input capacity	50 sheets
Certification	GS Mark
Harmonized System (HS) code	84433100

Weight and Dimensions

Depth	427 mm
Width	435 mm
Height	486 mm
