Brother MFC-L5800DW User Manual

Home > Fax > Voice Operations and Fax Numbers > Voice Operations > Special Line
Considerations > Install Your Brother Machine, an External Two-Line TAD and Two-Line Telephone
Install Your Brother Machine, an External Two-Line TAD and Two-Line
Telephone
Related Models: MFC-L5700DW/MFC-L5800DW/MFC-L5850DW/MFC-L5900DW/MFC-L6700DW/
MFC-L6800DW
When you are installing an external two-line telephone answering device (TAD) and a two-line telephone, your
machine must be isolated on one line at both the wall jack and at the TAD.
• This feature is available only in the USA and Canada.
• The most common connection is to place the machine on Line 2, which is explained in the following steps.
The back of the two-line TAD must have two telephone jacks: one labeled L1 or L1/L2, and the other labeled
L2. You will need at least three telephone line cords, the one that came with your machine and two for your
external two-line TAD. You will need a fourth line cord if you add a two-line telephone.
1. Place the two-line TAD and the two-line telephone next to your machine.
2. Plug one end of the telephone line cord for your machine into the L2 jack of the triplex adapter. Plug the other
end into the LINE jack of the machine.
3. Plug one end of the first telephone line cord for your TAD into the L1 jack of the triplex adapter. Plug the other
end into the L1 or L1/L2 jack of the two-line TAD.
4. Plug one end of the second telephone line cord for your TAD into the L2 jack of the two-line TAD. Plug the
other end into the EXT. jack of the machine.

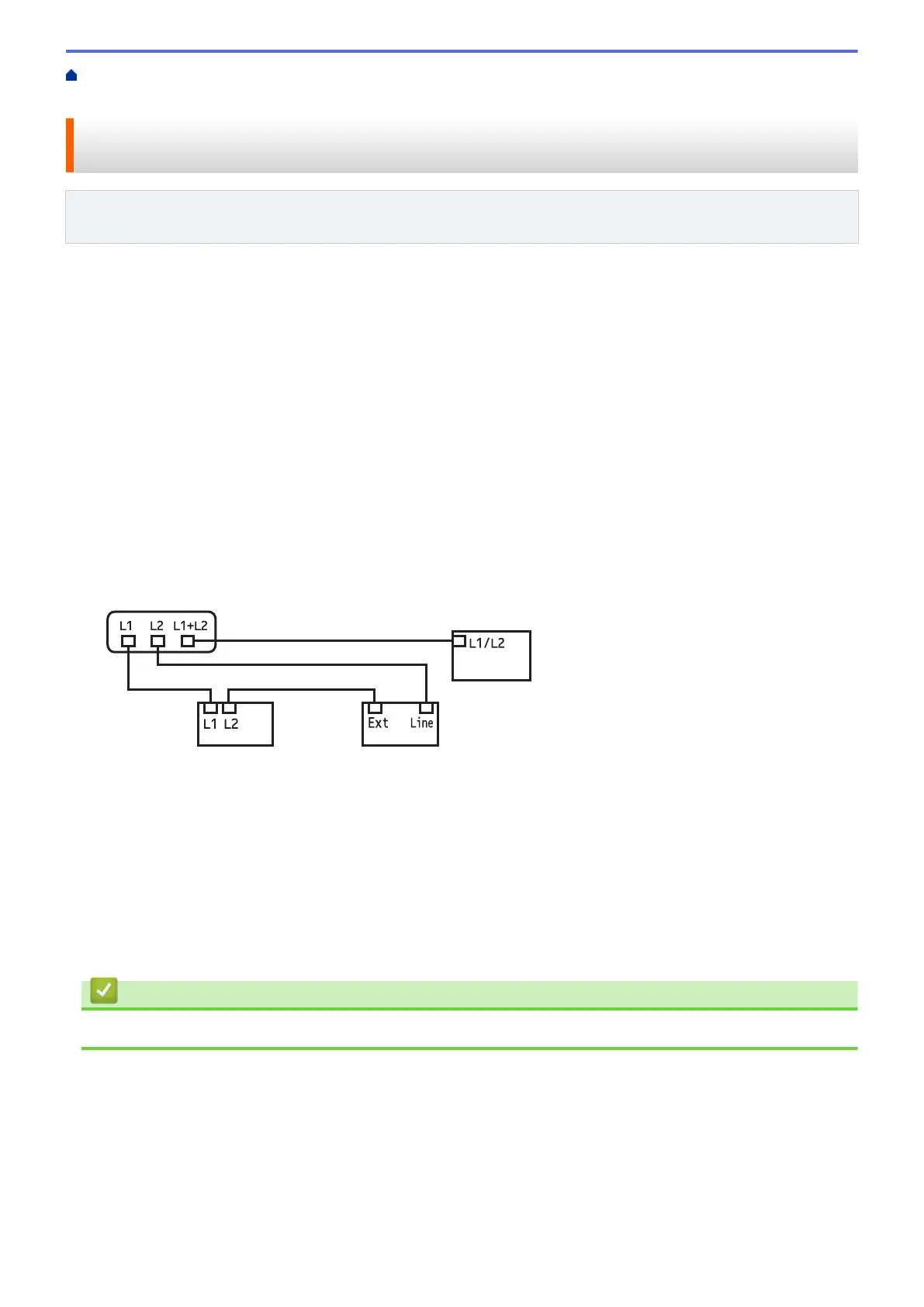

a
b
c
d
a. Triplex Adapter
b. Two Line Telephone
c. External Two Line TAD
d. Machine
You can keep two-line telephones on other wall outlets as always. There are ways to add a two-line telephone to
the machine's wall outlet. You can plug the telephone line cord from the two-line telephone into the L1+L2 jack of
the triplex adapter. Or, you can plug the two-line telephone into the TEL jack of the two-line TAD.
Related Information
• Special Line Considerations
266

Brother MFC-L5800DW Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	42 ppm
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	999 copies
N-in-1 copy function (N=)	2, 4
Time to first copy (black, normal)	9.2 s
Copy speed (black, normal quality, A4)	42 cpm
Scan to	CIFS, Cloud, E-mail, E-mail Server, FTP, File, OCR, USB
Scan drivers	ICA, ISIS, SANE, TWAIN, WIA
Scanner type	Flatbed & ADF scanner
Input color depth	48 bit
Output color depth	24 bit
Scan speed (black)	28 ppm
Scan speed (color)	20 ppm
Input grayscale depth	16 bit
Output grayscale depth	8 bit
Image formats supported	JPEG, JPG, PNG, TIF, TIFF
Maximum scan resolution	19200 x 19200 DPI
Document formats supported	DOCX, HTM, HTML, PDF, PPTX, RTF, TXT, XLS, XLSX, XML, XPS
Faxing	Mono faxing
Fax memory	500 pages
Modem speed	33.6 Kbit/s
Fax coding methods	JBIG, JPEG, MH, MMR (Fax coding method), MR
Fax speed dialing (max numbers)	300
Digital sender	No
Printing colors	Black
Maximum duty cycle	50000 pages per month
Number of print cartridges	1
Page description languages	BR-Script 3, Epson FX, IBM ProPrinter, PCL 5c, PCL 5e, PCL 6, PDF 1.3
Display	LCD
Control type	Touch
Display diagonal	3.7 \
Market positioning	Business
Email protocols	APOP, IMAP4, POP3, SMTP
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print, Mopria Print Service
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA (Auto IP), WINS/NetBIOS Name Resolution, DNS Resolver, mDNS, LLMNR Responder, LPR/LPD, Custom Raw Port/Port 9100, POP3, SMTP Client, IPP/IPPS, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS Server, TFTP Client and Server, ICMP, Web Services (Print/Scan), SNTP Client, LDAP, IMAP4
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, POP3, SMTP Client, FTP Client y Server, CIFS Client, TELNET Server, SNMPv1/v2c, HTTP/HTTPS server, TFTP client y server, ICMPv6, SNTP Client, LDAP, Web Services (Print/Scan), IMAP4
Paper input type	Paper tray
Total input capacity	250 sheets
Total output capacity	150 sheets
Multi-Purpose tray input capacity	50 sheets
Auto document feeder (ADF) input capacity	70 sheets
Paper tray media types	Bond paper, Envelopes, Labels, Letterhead, Plain paper, Recycled paper
Paper tray media weight	60 - 120 g/m²
ISO A-series sizes (A0...A9)	A4, A5, A6
Multi-purpose tray media types	Envelopes, Legal, Letter
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 200 g/m²
Auto Document Feeder (ADF) media weight	60 - 105 g/m²
Package depth	525.8 mm
Package width	599.4 mm
Package height	629.9 mm
Package weight	20820 g
Quantity per pack	1 pc(s)
Card reader integrated	-
Sound pressure level (printing)	55 dB
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Power consumption (max)	1248 W
Power consumption (off)	0.03 W
Power consumption (ready)	36 W
Power consumption (sleep)	8.4 W
Power consumption (printing)	630 W
Power consumption (average operating)	- W
Energy Star Typical Electricity Consumption (TEC)	0.567 kWh/week
Storage temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Storage relative humidity (H-H)	35 - 85 %
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	EPEAT Silver, ENERGY STAR
Cables included	Phone
Bundled software	Nuance PaperPort SE with OCR for Windows, Presto! PageManager with OCR for Mac
Included cartridge capacity (black)	3000 pages
Recommended monthly print volume	3500 pages

Weight and Dimensions

Depth	426.7 mm
Width	495.3 mm
Height	485.1 mm
