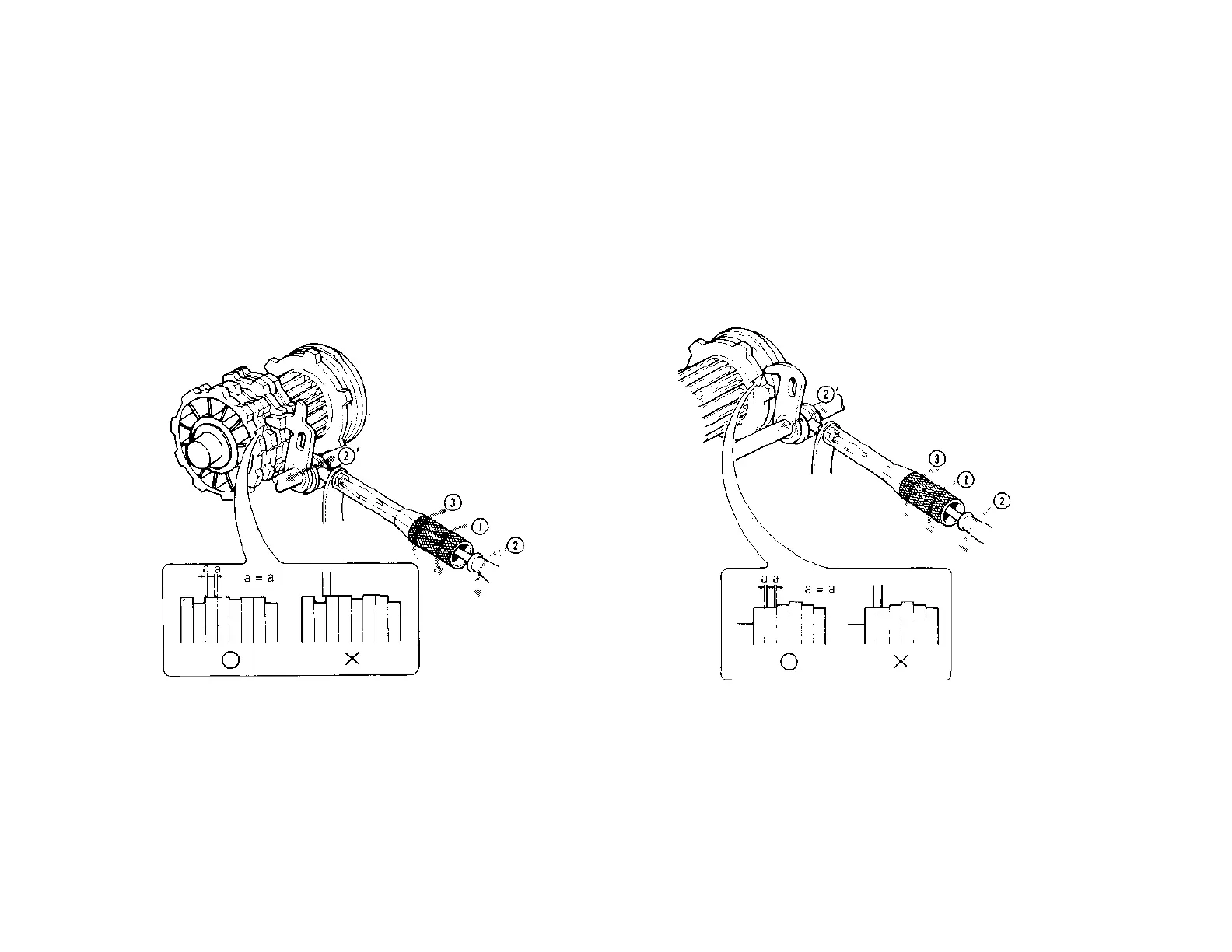

20-1 A. Position of cam finger for pattern cam
20-1B. Position of cam finger for feed cam
VX541, VX561, VX581, VX546, VX566, VX586
VX641, VX661, VX681, VX646, VX666, VX686
VX720, VX740, VX760, VX780
VX541, VX561, VX581, VX546, VX566, VX586
VX641, VX661, VX681, VX646, VX666, VX686
VX720, VX740, VX760, VX780
Before adjustment: Set the pattern dial at SS (stretch
stitch).
Before adjustment: Set the pattern dial at SS (stretch
stitch).
Cam finger VS Pattern cam.
Cam finger VS Feed cam.
