OPERATING INSTRUCTIONS
ENGINE
The Brouwer BTR 30 Turf Roller is fitted with a Honda GX160 Engine. The owner’s manual for
the engine is supplied with the machine.
It is important to follow the operating and service inst
ructions contained in the manual.
CONTROLS

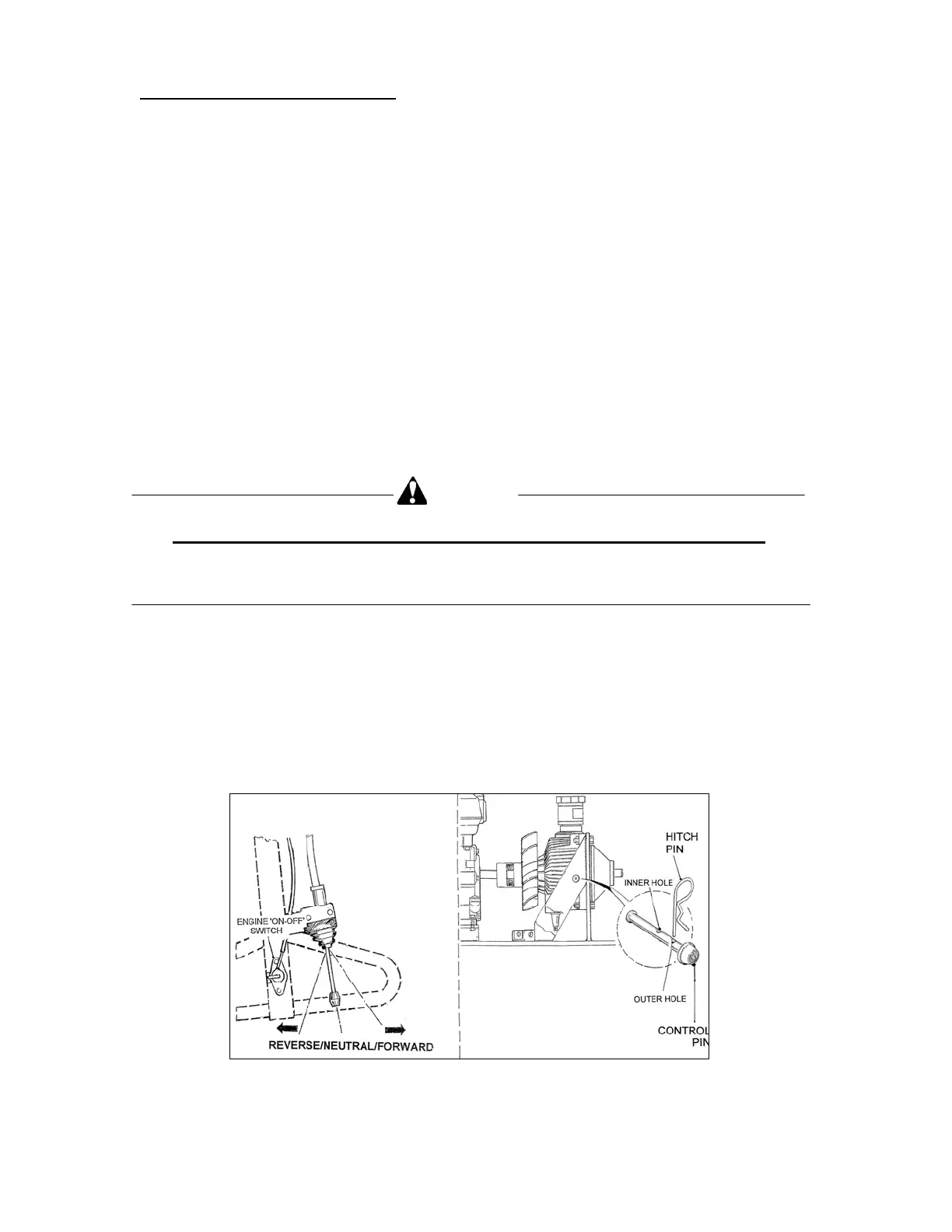

FIG. 3
The hand control lever for the hydrostatic transmission is located on the Turf Roller Handle.
Move the lever to the right for ‘FORWARD’ and move to the left for ‘REVERSE’.
The transmission is fitted with a “FREE-WHEEL” control. This allows easy movement of the
machi
ne when the engine is not running. The control is located on the front of the transmission
mounting support, between the fan shroud and chain guard.
To put the transmission into “FREE WHEEL”, remove the Hitch Pin from the ‘inner hole’ and
pre
ss the Control Pin – ‘fully inward’, insert the Hitch Pin into the ‘center hole’. Reverse the
procedure for ‘DRIVE’ mode.
WARINING
Do not activate the Free-Wheel control if the engine is running or the machine
is stoppe
d on an incline.
To prevent sudden movement of the machine, which may cause injury to the
operator or others, operate the Control Lever slowly and smoothly from
NEUTRAL to FORWARD and REVERSE.
When the hand control lever is in the NEUTRAL (ce
ntered) position, the engine is DISENGAGED
from the transmission.
When the engine is stopped and the hand control lev
er is in the NEUTRAL (centered) position,
the transmission is locked.
The engine ’ON-OFF’ switch has been relocated from the engine to the handle, for operator
conve
nience and safety.
Fig.3
5
