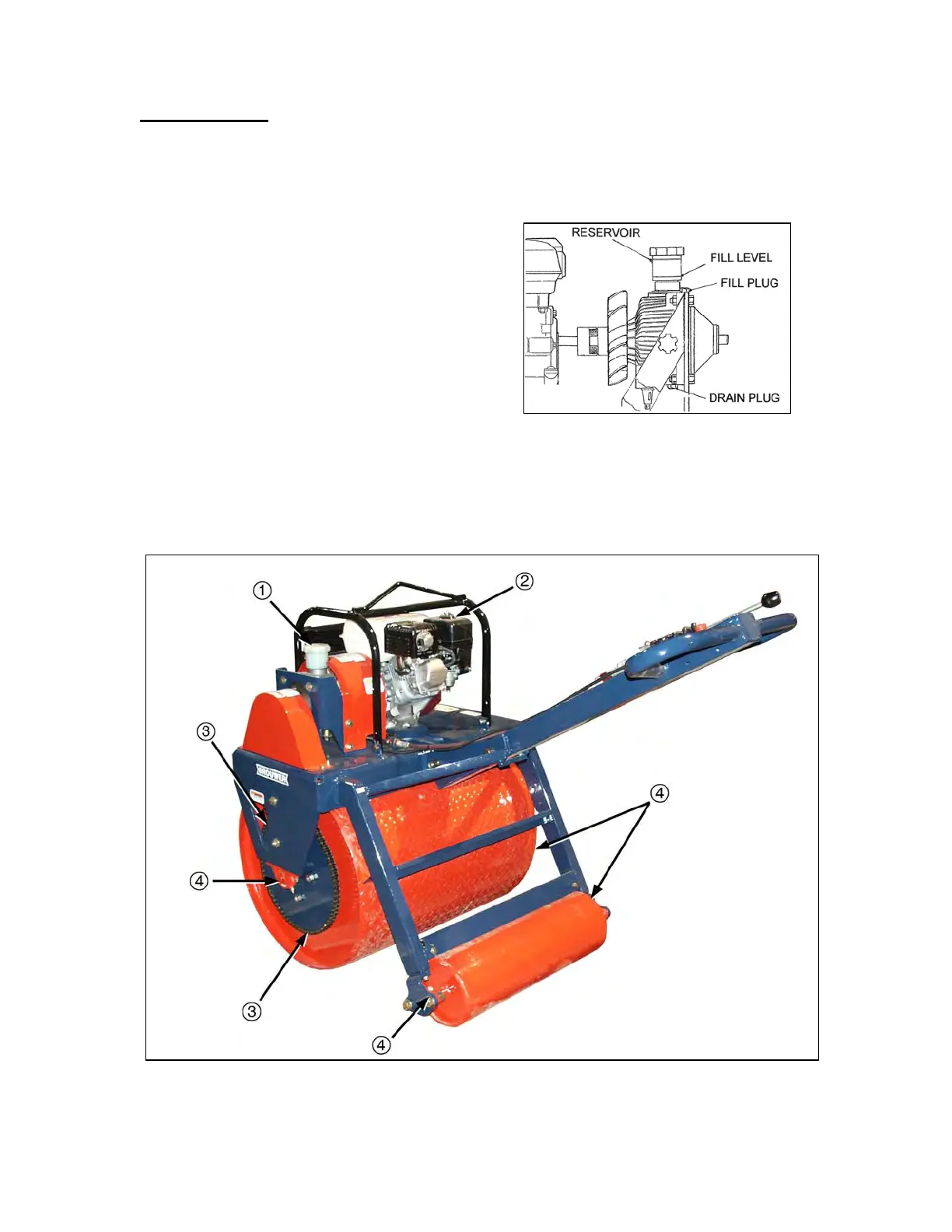

LUBRICATION
Fig.8
1. TRANSMISSION: SYNTHETIC SAE 5W40. Check
oil level daily.
If the Roller is used daily it is recommended to cha
nge the transmission oil every 2 months.
Occasional service would allow that period to be extended accordingly, but not to exceed 12
months. To change the oil:
• Remove the
Fan Shroud.
• Remove the t
ransmission drain plug
and the fill plug.
• Drai
n the oil into a suitable container.
• Repl
ace the drain plug
• Refill with 20
fl. oz. (600ml.) of the correct
oil to the bottom of the fill plug hole.
• Repl
ace the fill plug.
• Top up the re
servoir to the correct level
• Repl
ace the Fan Shroud. Fig.8
Fig.9
2. ENGINE: Refer to the Honda Engine Owners Manual. Supplied with the machine
3. CHAINS: SAE 30 OIL. Daily. (DO Not Us
e Grease On The Chains.)
4. FRONT & REAR ROLLER BEARINGS: Greas
e Monthly
Fig.9
Regular washing and cleaning of your Brouwer Tu
rf Roller will be a benefit in operation,
maintenance and reliability.
10
