MAINTENANCE
FORWARD-NEUTRAL-REVERSE ADJUSTMENT
It is important that the F – N – R Control Lever and the transmission Lever Arm are adjusted to
give the corre
ct forward and reverse speeds. When replacing parts or servicing the unit, adjust
as follows.
• Remove the
Cooling Fan Shroud.
• Remove the
Cable End Clevis from the Transmission Lever Arm.
• Rele
ase the four nuts on the Adjusting Bolts and screw in the bolts fully.
• Adjust the Ca
ble End Clevis to allow the Clevis Pin to fit through the Lever Arm but NOT
moving the Lever Arm from it’s neutral position. A bushing is fitted in the lever arm.
Check that it is in place.
• Refit the Split Pin.
• Move the Co
ntrol Lever to the ‘FORWARD’ position until the transmission Lever Arm hits
its internal stop. Hold the Control Lever in this position and unscrew the ‘FORWARD’
Adjusting Bolt until it touches the transmission Lever Arm. Tighten the Locking nuts.
• Repeat the above adjus
tment for the ‘REVERSE’ setting except that the reverse
Adjusting Bolt should be unscrewed a further ¼ inch after touching the Lever Arm, This
reduces the maximum reverse speed.

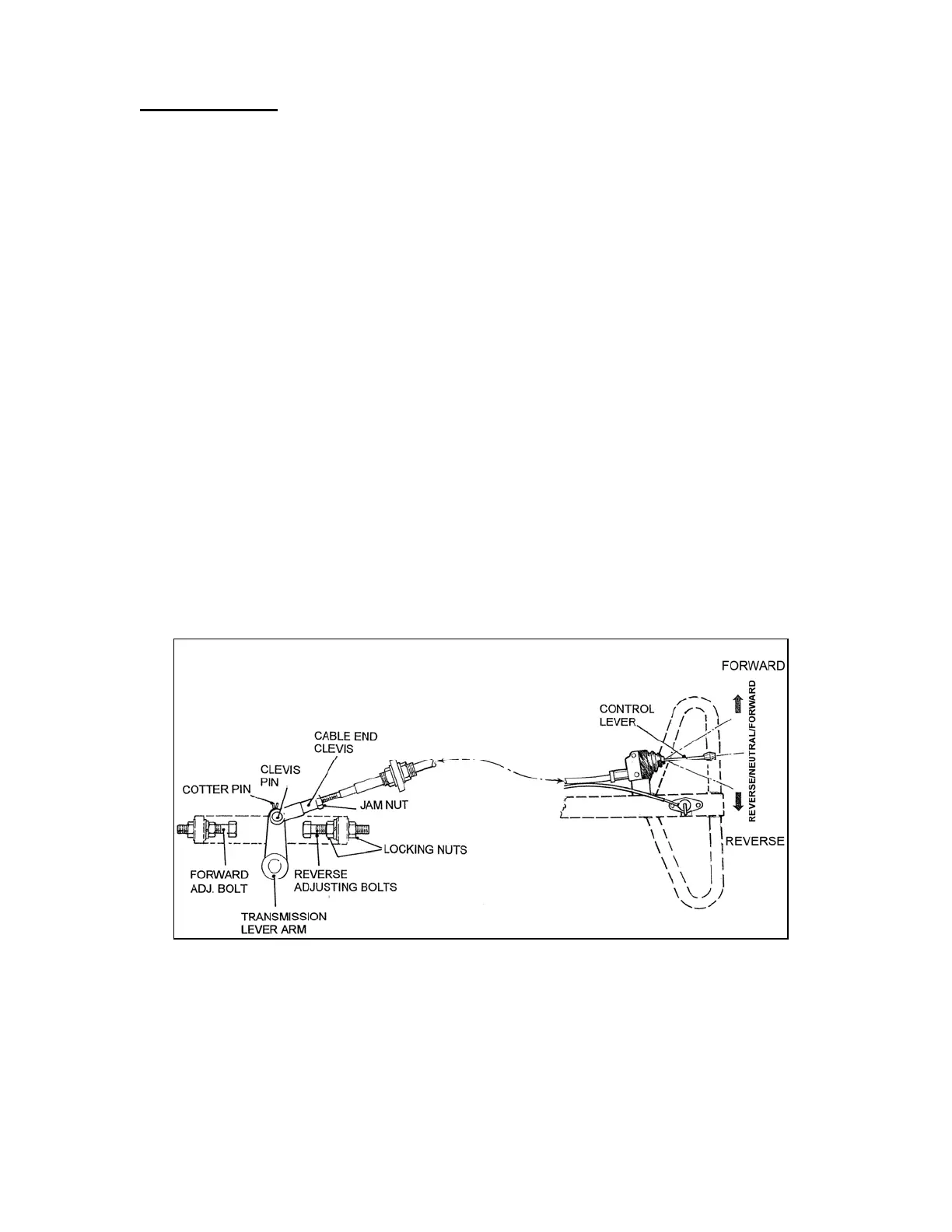

Fig.5
7
