BROWN 815 - Hydraulic System Overview

24

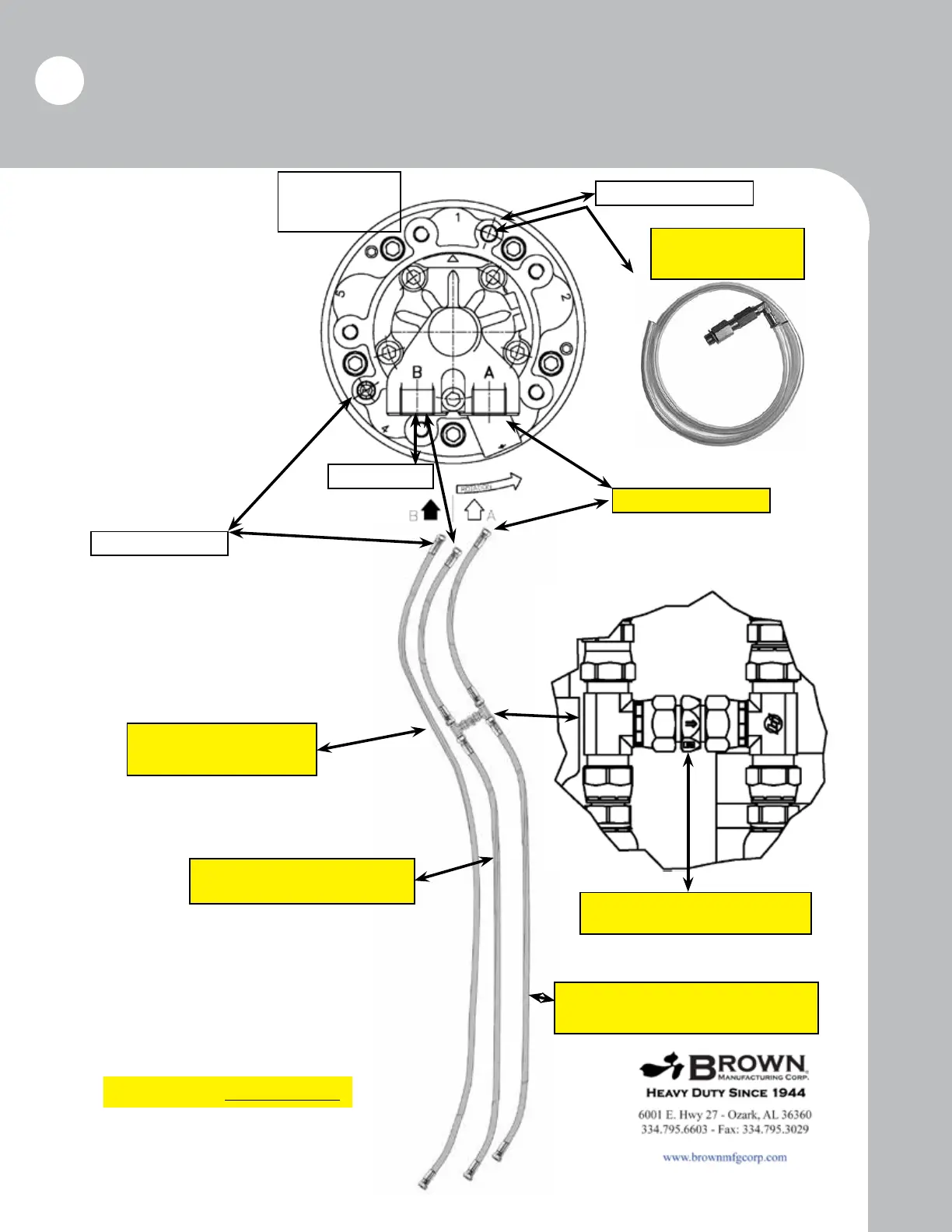

Hydraulic Plumbing
High Pressure Port A
Return Port B
Case Relief Port
Case Drain Port
Case Drain Hose
with Flat Face Connector
High Pressure Hose to Port A
with Female Flat Face Connector
Return Hose to Port B
with Male Flat Face Connector
Check Valve
Arrow MUST point at High Pressure Hose
232-0840
Case Relief Kit
MUST be installed
816 - 233-82027
826 - 233-83547
Hydraulic Motor
Blade rotation is counterclockwise.
Brown 800 Series
Hydraulic Cutter
Plumbing
