This document describes the Broyhill Fire Pit Fountain, Model #19524 (UPC 671424 605678), an outdoor appliance designed to function as both a fire pit and a fountain. It is intended for outdoor use only and requires installation and service by a qualified installer, service agency, or gas supplier.

Function Description:

The Broyhill Fire Pit Fountain serves a dual purpose, offering the ambiance of a fire pit and the soothing presence of a water fountain. It operates on a 1LB propane tank for the fire pit function and includes a pump for the fountain feature. The fire pit provides heat and light, while the fountain circulates water, creating a decorative and relaxing element for outdoor spaces. The unit features a control knob for adjusting the flame height (LOW or HIGH) and for shutting down the gas supply.

Important Technical Specifications:

Model Number: 19524
UPC: 671424 605678
Fuel Type: Propane (1LB propane tank)
Gas Supply: Regulator assembly (Part 6) connects to a 1LB propane tank.
Burner Material: SUS430 (Part 2, Part 5)
Thermocouple Material: Q235 (Part 7)
Minimum Clearances (Combustible Materials):
- 24 inches (60.96 cm) from the sides and rear of the unit.
- 48 inches (121.9 cm) from the top of the unit.
Gas Supply Pressure:
- Minimum inlet pressure: 10psi.
- Manifold pressure: 11 in wc (2.74 kPa).
LP Propane Tanks: Dimensions: 12in height, 18in capacity, 20lbs. Must be 80% full.
Electrical Requirements (Fountain): The pump outlet must be plugged into a properly grounded outlet.

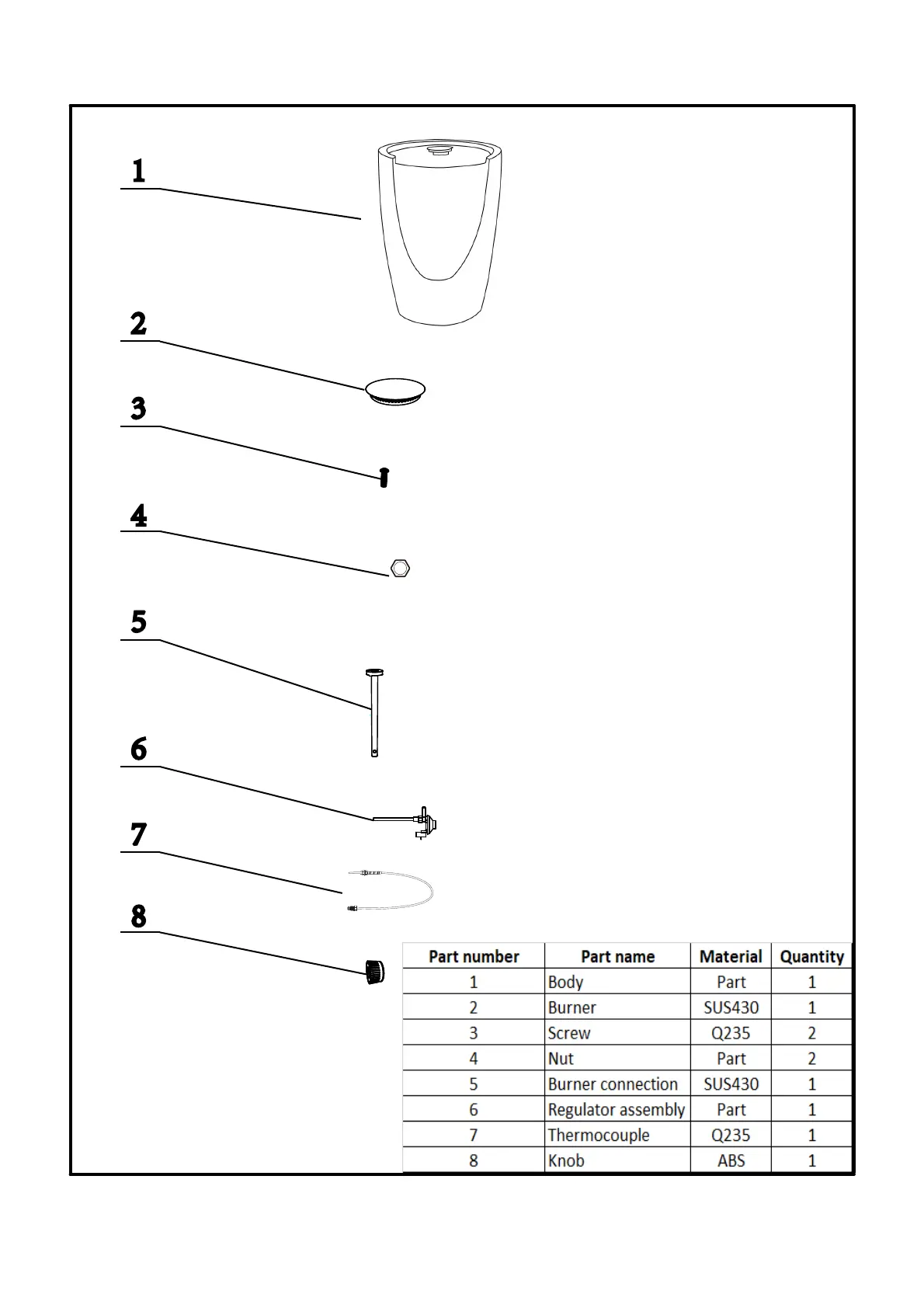

Components:
- Body (Part 1)
- Burner (Part 2)
- Screw (Part 3)
- Nut (Part 4)
- Burner connection (Part 5)
- Regulator assembly (Part 6)
- Thermocouple (Part 7)
- Knob (Part 8)

Usage Features:

Installation: The unit is pre-assembled before shipment. Users must carefully unpack all components and ensure no pieces are missing. The body is placed on a flat, non-combustible floor, ensuring a minimum of 24 inches of clearance from combustible walls. The valve on the control panel should be turned clockwise to the "OFF" position before installation.
Fountain Setup: The basin stand should be placed on a clean, level surface. The pump is placed in the fountain basin, with its cord laid in the door opening. The hose is connected to the pump, and a 1LB propane tank is connected to the metal connection inside the column. The fountain is then filled with clean water, and the pump outlet is plugged into a grounded electrical outlet to check water flow.
Lighting the Fire Pit: Before lighting, ensure the valve knob is in the "OFF" position. Push in and turn the control knob anti-clockwise to the LOW position. A leak test must be performed before lighting. Hold a lit match within 1/4" of the lava logs until the burner ignites. If the burner fails to light, turn to "OFF," wait 5 minutes, and attempt to re-light. The control knob can then be turned to the desired heat setting (LOW or HIGH).
Shut-down: Turn the control knob gently to the "OFF" position. Disconnect and remove the gas tank when the fire pit is not in use.
Safety Warnings:
- This item is heavy; exercise caution when lifting and assembling.
- Do not assemble if parts are missing.
- Improper installation, alteration, service, or maintenance can cause injury or property damage.
- Do not store or use gasoline or other flammable vapors and liquids near the appliance.
- A LP-cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.
- Carbon Monoxide Hazard: This appliance can produce carbon monoxide, which has no odor. Using it in an enclosed space can kill you. Never use this appliance in an enclosed space such as a camper, tent, car, or home.
- Always check for leaks after connecting the unit or if the unit has not been used for long periods.
- Do not obstruct the flow of combustion and ventilation air.
- Do not use the unit if any part has been submerged in water.
- Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns or clothing ignition.
- Young children should be carefully supervised when they are in the area of the appliance.
- Clothing or other flammable materials should not be hung from the appliance or placed on, in, or near the appliance.
- Any guard or other protective device removed for servicing the appliance shall be replaced prior to operating the appliance.
- Installation and repair should be done by a qualified service person.
- Do not use solid fuel or charcoal with this unit.
- Do not paint or color any part of this heating unit.
- Keep flammable items away and do not use any other fireplace cover for this unit.
- Keep a safe distance to avoid burning skin or clothing.
- Do not sit or rest hands or feet on this heating unit.
- Never place hands or fingers on the upper portion of this unit while in use.
- Keep all electrical cords and fuel supply hose away from heated surfaces.

Maintenance Features:

Flame Appearance: The flames should look like those depicted in the manual. Adjust the control knob to achieve different flame heights.
Weather Protection: If it is raining, the burner should be turned off and stored indoors.
Winter Storage: It is recommended that the fireplace be stored indoors in freezing temperatures. The cylinder must be disconnected and removed from the appliance before storage.
Propane Canister Storage: The propane canister must be stored outdoors and never close to the operating unit.
Cleaning: If the igniter pin and burner are wet, dry them with a soft cloth.
Troubleshooting:
- Unit won't light using the igniter pin: Check igniter battery direction, igniter pin for breakage, electrode wire for looseness or disconnection, and electrode wire for shorting.
- Burner won't light while using a match: Check if the gas tank is empty or if burner ports are clogged.
- Unit emits a lot of black smoke: Check if the flame is obstructed at burner ports.
- Sudden drop in gas flow: Check for no gas flow or if the excess flow safety valve has been activated.
- Flame blows out easily: Check for high or gusting winds or no gas flow.
Warranty: The manufacturer warranty is voided by modification of the unit and/or components (including the gas valve assembly), use of any component part not manufactured or approved by CTM International, or use and installation other than what is listed in this manual. For replacement parts, contact the manufacturer.
