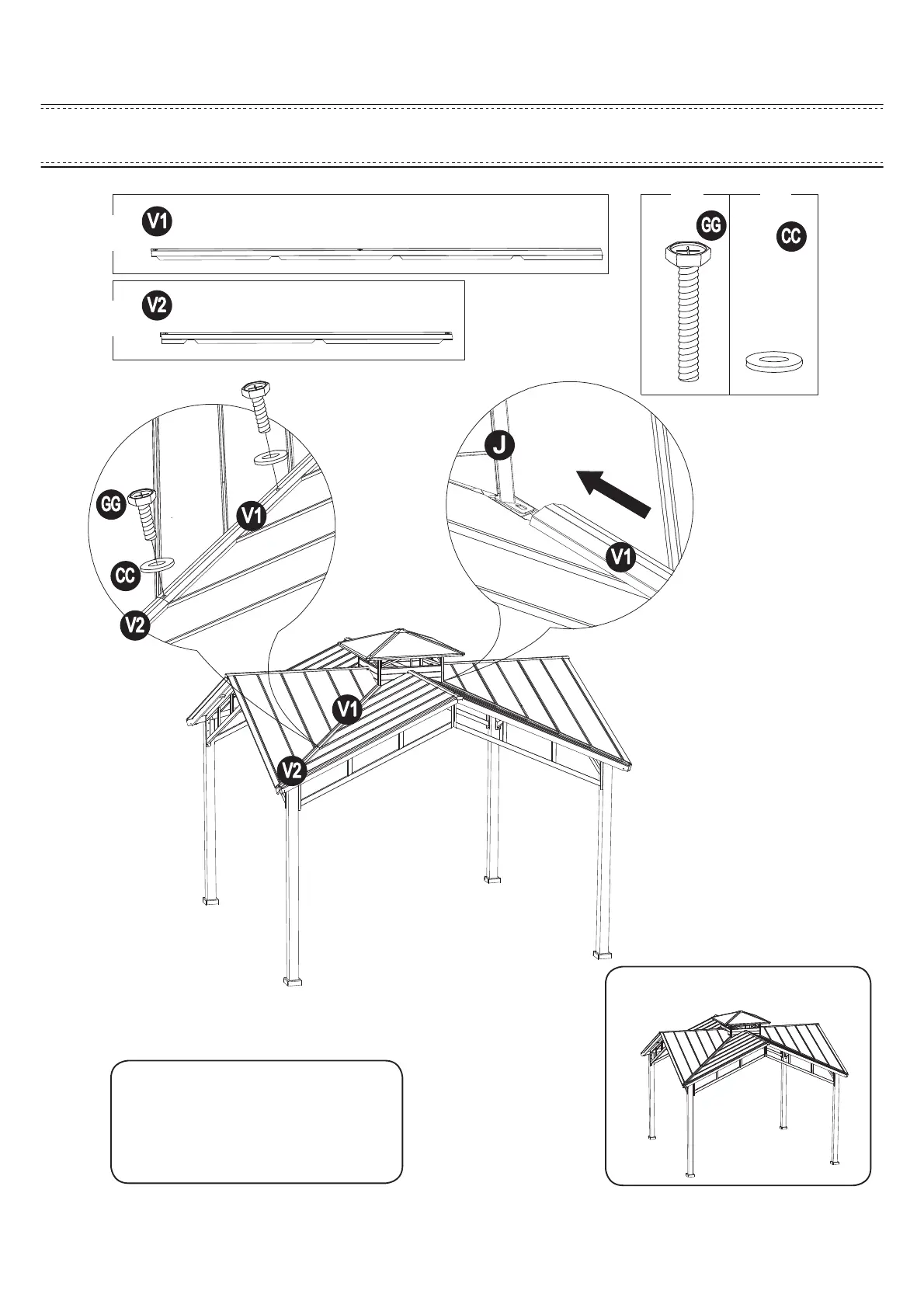

Assembled View:
Insert inclined beam top cover (V1) to the
small top inclined beam support rod (J),
then connect inclined beam top cover (V1),
inclined beam lower cover plate (V2) and
skew beam (F1/F2) using bolt (GG) and
flat washer (CC), tighten with wrench (Z1).
67(3
29/31
8X
4X
4X
8X
