BRP BUDS2 - Active;Occurred and Inactive Faults; Environmental Data

14

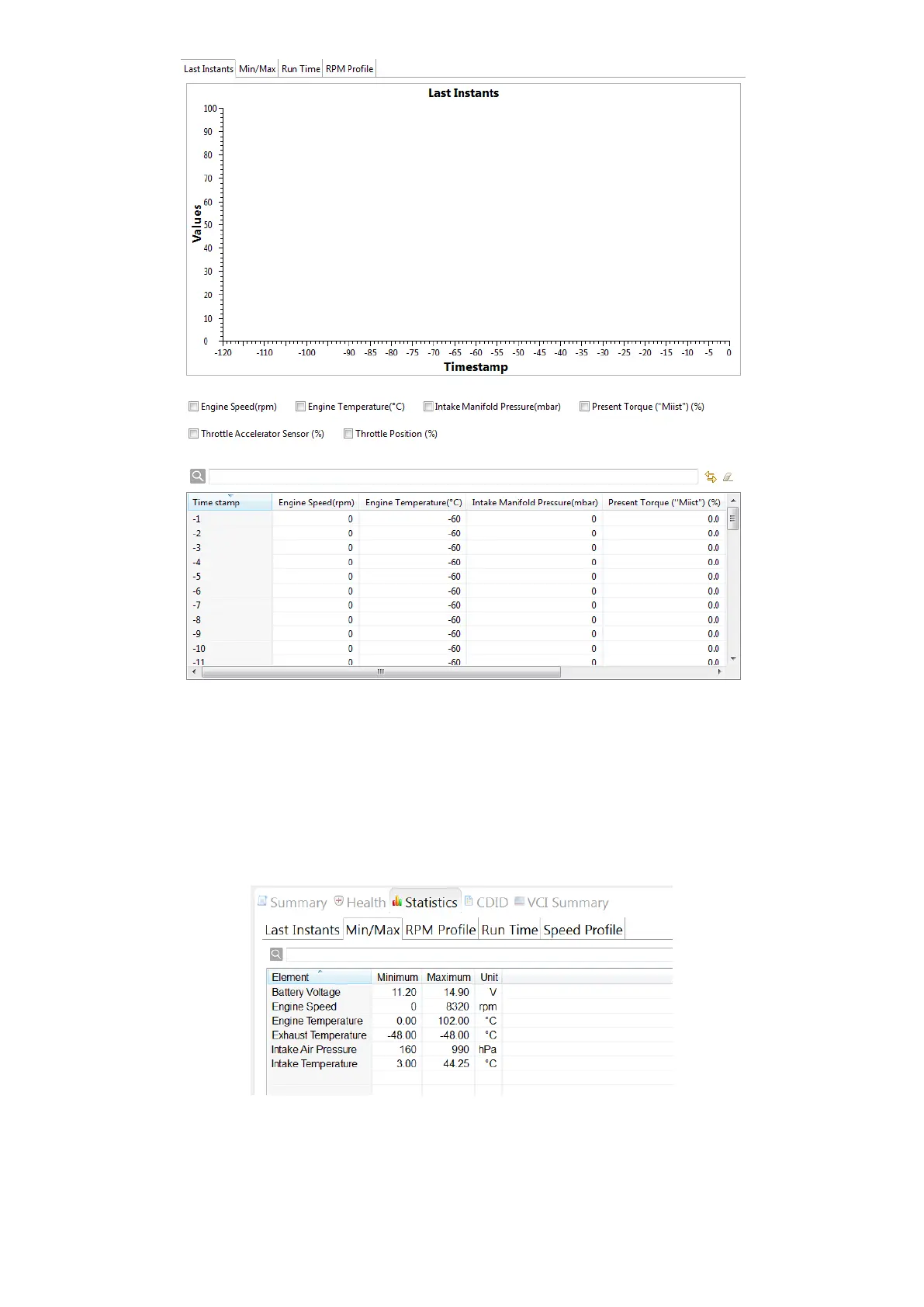

Figure 29: Last Instants Page
By selecting the refresh or clear button on the top right of the Last Instants tab, values are reloaded from
the vehicle, or cleared, respectively.
Min/Max
The module saves the minimum and maximum value of the following elements: Battery Voltage, Engine
Temperature, Exhaust Temperature, Intake Air Pressure, Intake Temperature).
Figure 30: Min/Max Page
By selecting the refresh or clear button on the top right of the Min/Max tab, values are reloaded from the
vehicle, or cleared, respectively.
