119
SYSTEM ANALYSIS
DIAGNOSTIC PROCEDURES
5
Symptoms
Outboard will not crank, starter does not
operate:
Check condition of battery and cables (main
battery switch and cables). Make sure battery
cables are not reversed.
Confirm that B+ is present at “A” terminal (pur-
ple wire) of starter solenoid with key switch in
the ON position.
Proceed to START CIRCUIT on p. 122. Repair
starter or start circuit as needed.
Outboard cranks, will not start:
Use LED indicators of EMM for initial diagnostic
information.
Perform a spark test using the Evinrude Diag-
nostics Software program. Refer to IGNITION
OUTPUT on p. 127.
Results:
Steady spark on all cylinders and proper ignition
voltage:
Check operation of all fuel injectors. Refer to
FUEL COMPONENT TESTS on p. 184.
Check fuel quality and that fuel is present at
injectors.
Refer to FUEL COMPONENT TESTS on p. 184
for fuel system pressure tests.
No spark on one or more cylinders:
Note cylinder with no ignition output. Refer to
IGNITION OUTPUT on p. 127.
Monitor cranking RPM using the diagnostic pro-
gram (approximately 175 RPM, minimum 75
RPM).
Check CPS operation (verify RPM reading.)
Perform ignition circuit resistance test(s). Refer
to Ignition Primary Circuit Resistance Test
on p. 130 and IGNITION COIL TESTS on
p. 141.
Outboard runs:
Use Evinrude Diagnostics Software program to
perform Dynamic Tests. See Dynamic Tests on
p. 133.
Use the engine Monitor screen of the Evinrude
Diagnostics Software program to observe circuit
voltages. Refer to Engine Monitoring Informa-
tion on p. 121.
Use the diagnostic software Logging function to
record engine data as a runability problem is
occurring.
Use an inductive timing light to monitor the
injector circuits and ignition primary circuits.
Refer to Testing with Timing Light on p. 120,
IGNITION OUTPUT on p. 127, FUEL DELIV-
ERY on p. 131 and FUEL COMPONENT
TESTS on p. 184.
Use an inductive amp meter to monitor injector
circuit current. Compare readings of all circuits
to identify possible failure.

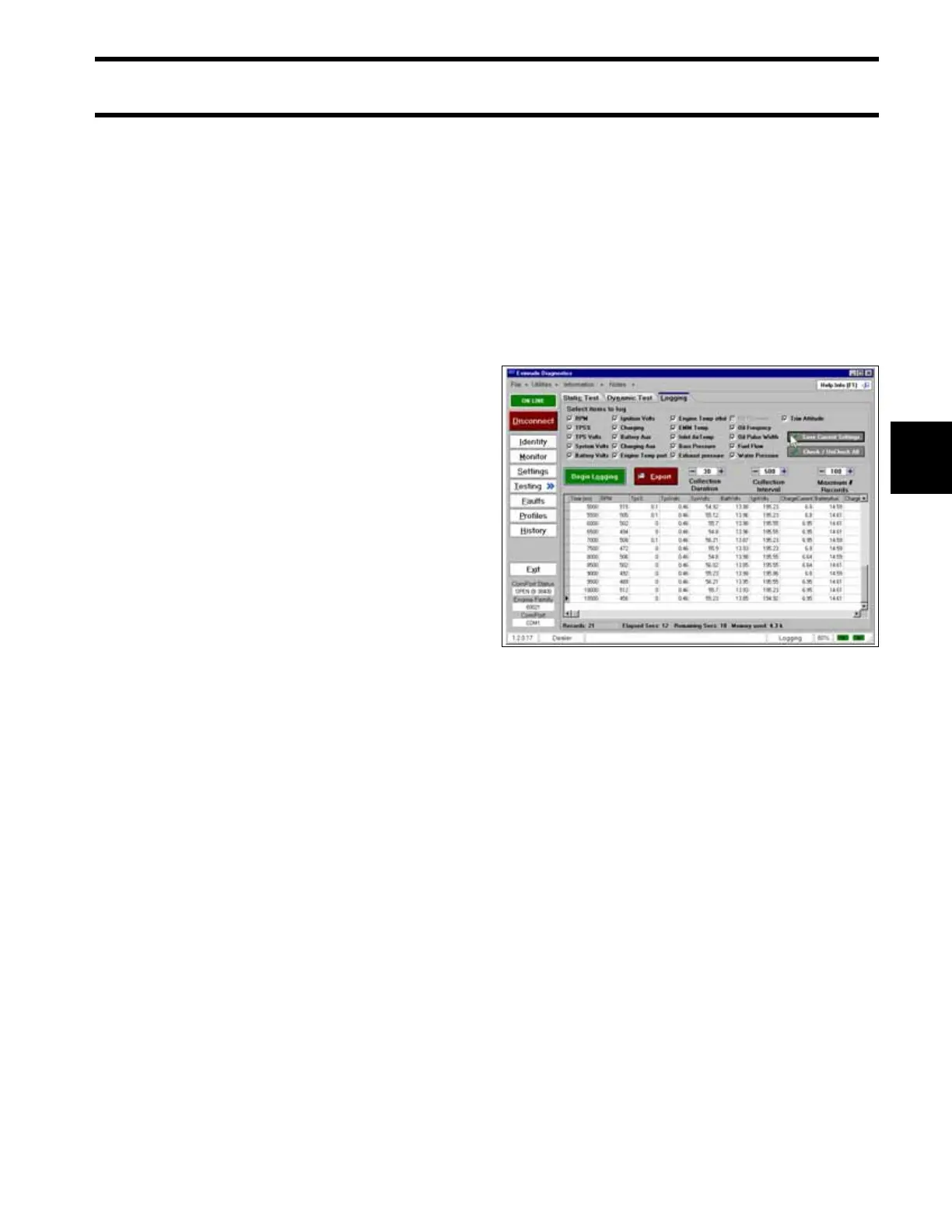

Logging Screen 005154
