INSTALLATION AND PREDELIVERY
OUTBOARD RIGGING
2
Install trunnion cover and screw. Tighten retaining
screw to a torque of 60 to 80 in. lbs. (7 to 9 N·m).
Throttle Cable Installation and Adjustment
Rotate the propeller shaft and shift control lever to
FORWARD, then pull control lever half-way back
to NEUTRAL.
Position throttle cable on throttle lever pin and
install washer and retainer clip.
With throttle cable attached to the throttle linkage,
pull cable to remove slack and ensure that idle
stop of the throttle linkage is against the crank-
case.
Adjust the throttle cable trunnion to align with the
trunnion block. Place the cable trunnion in the
trunnion block.
IMPORTANT: Make sure that the idle stop on
the throttle linkage firmly contacts the crankcase
when the remote control is in the IDLE position.
The roller on the cam follower should spin freely.
Install the trunnion cover and screw. Tighten the
retaining screw to a torque of 60 to 80 in. lbs. (7 to
9 N·m).

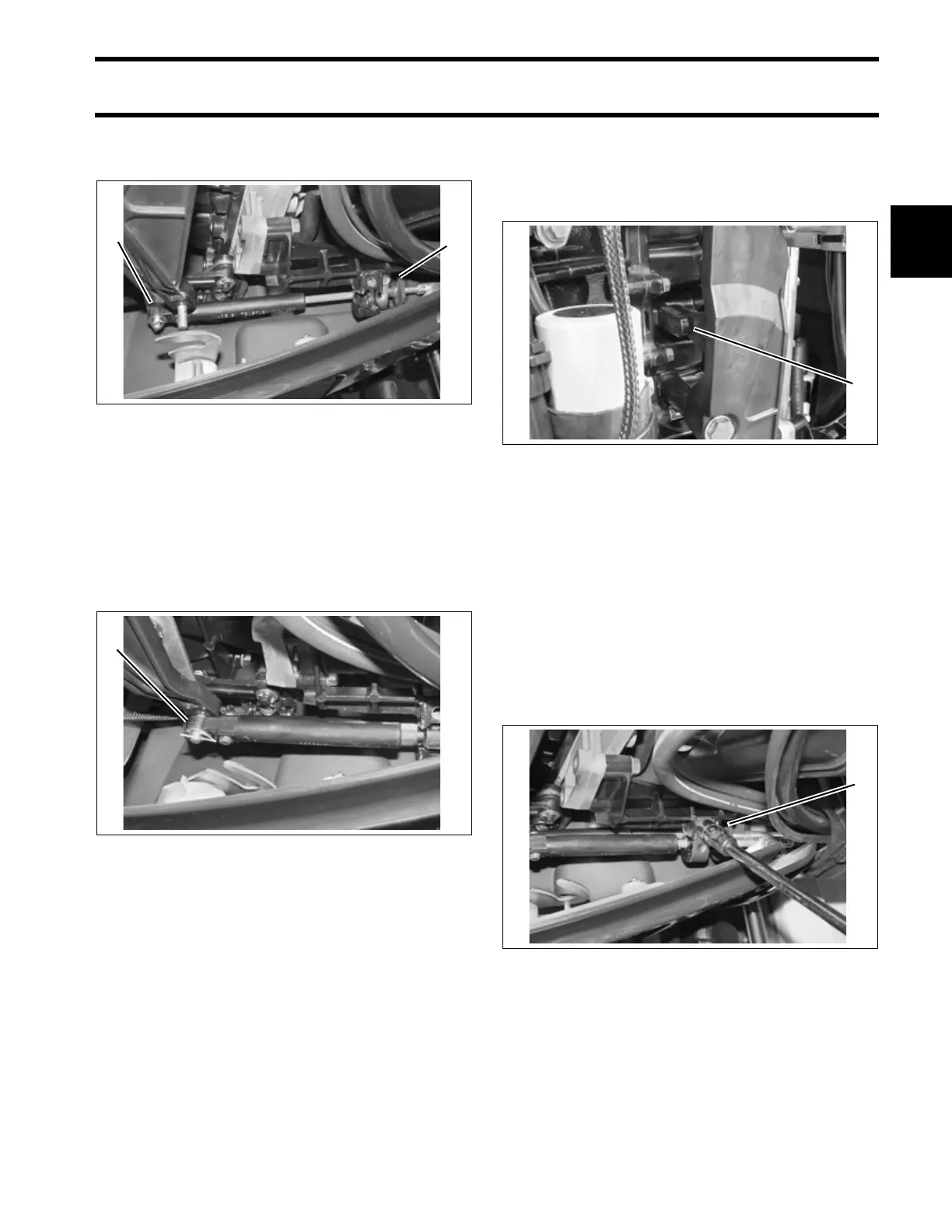

1. Shift cable retainer clip and washer
2. Shift cable trunnion
004956
1. Throttle cable retainer clip and washer 004957
21
1
1. Throttle linkage, idle stop against crankcase 004947
1. Trunnion cover and screw, throttle cable 004958
1
1
