BRP Evinrude E-Tec E115DSLSUC - Service Chart

300
GEARCASE
SERVICE CHART
SERVICE CHART

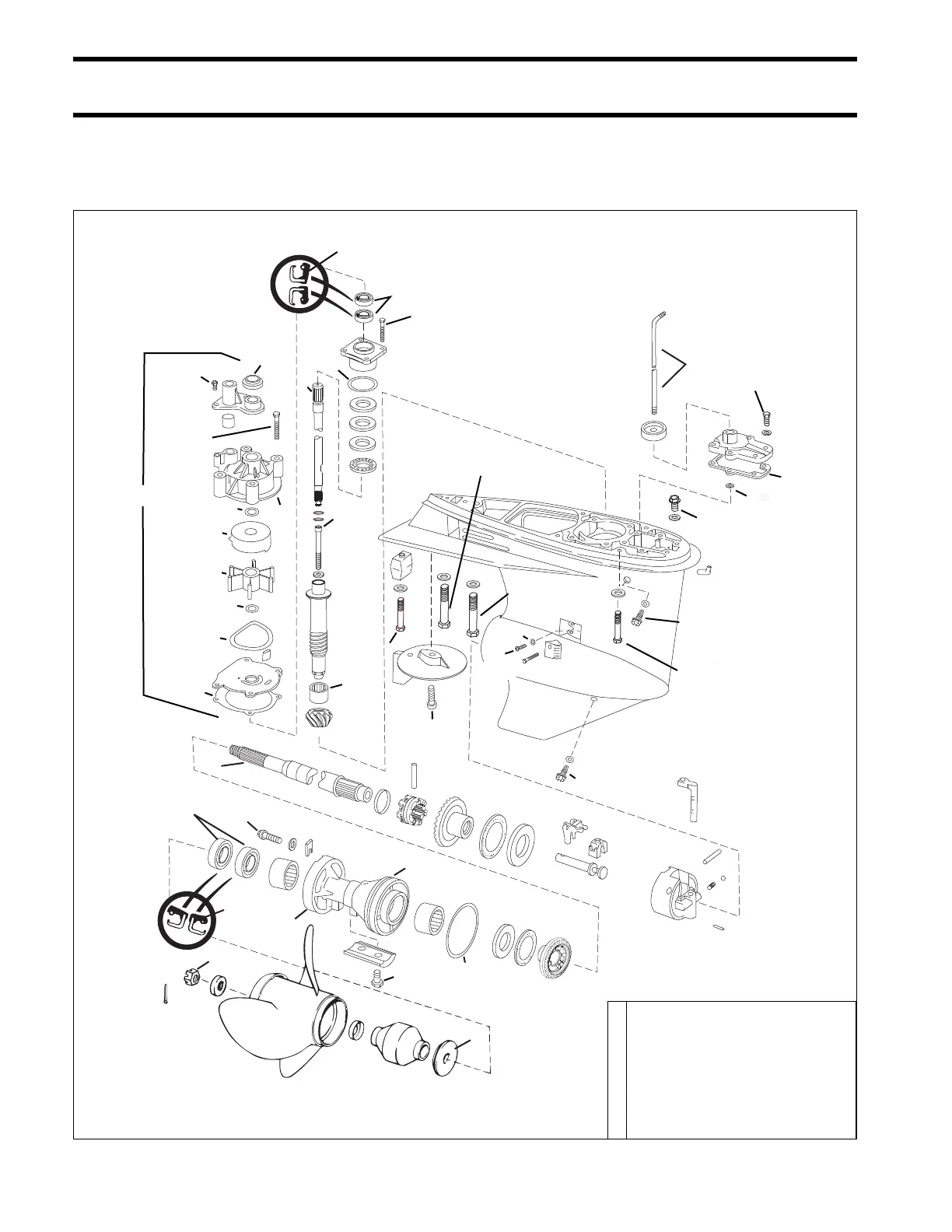

V4 20 IN. MODELS “S2”–TYPE GEARCASE
120-144 In. lbs.
(13.6-16.3 N·m)
108-132 In. lbs.
(12.2-14.9 N·m)
18-20 Ft. lbs.
(24-27 N·m)
A
A
B
E
B
B
60-84 In. lbs.
(6.8-9.5 N·m)
35-40 Ft. lbs.
(47-54 N·m)
C
B
G
B
60-84 In. lbs.
(6.8-9.5 N·m)
20-24 Ft. lbs.
(27-33 N·m)
26-28 Ft. lbs.
(35-38 N·m)
45-50 Ft. lbs.
(61-68 N·m)
215-240 in. lbs.
(24-27 N·m)
B
B
26-28 Ft. lbs.
(35-38 N·m)
B
F
60-84 In. lbs.
(6.8-9.5 N·m)
F
A
B
120-144 In. lbs.
(13.6-16.3 N·m)
B
B
A
B
24-36 In. lbs.
(2.7-4.1 N·m)
D
See Water Pump
A
ssembly instructions
C
A
A
B
A
A
60-84 In. lbs.
(6.8-9.5 N·m)
F
C
A
B
B
F
60-84 In. lbs.
(6.8-9.5 N·m)
37-41 Ft. lbs.
(50-56 N·m)
DSS133-2
A Triple-Guard Grease
B Gasket Sealing Compound
C Adhesive 847
D Moly Lube
E Red Ultra Lock
F Blue Nut Lock
G Needle Bearing Grease
