57
INSTALLATION AND PREDELIVERY
OUTBOARD INSTALLATION
2

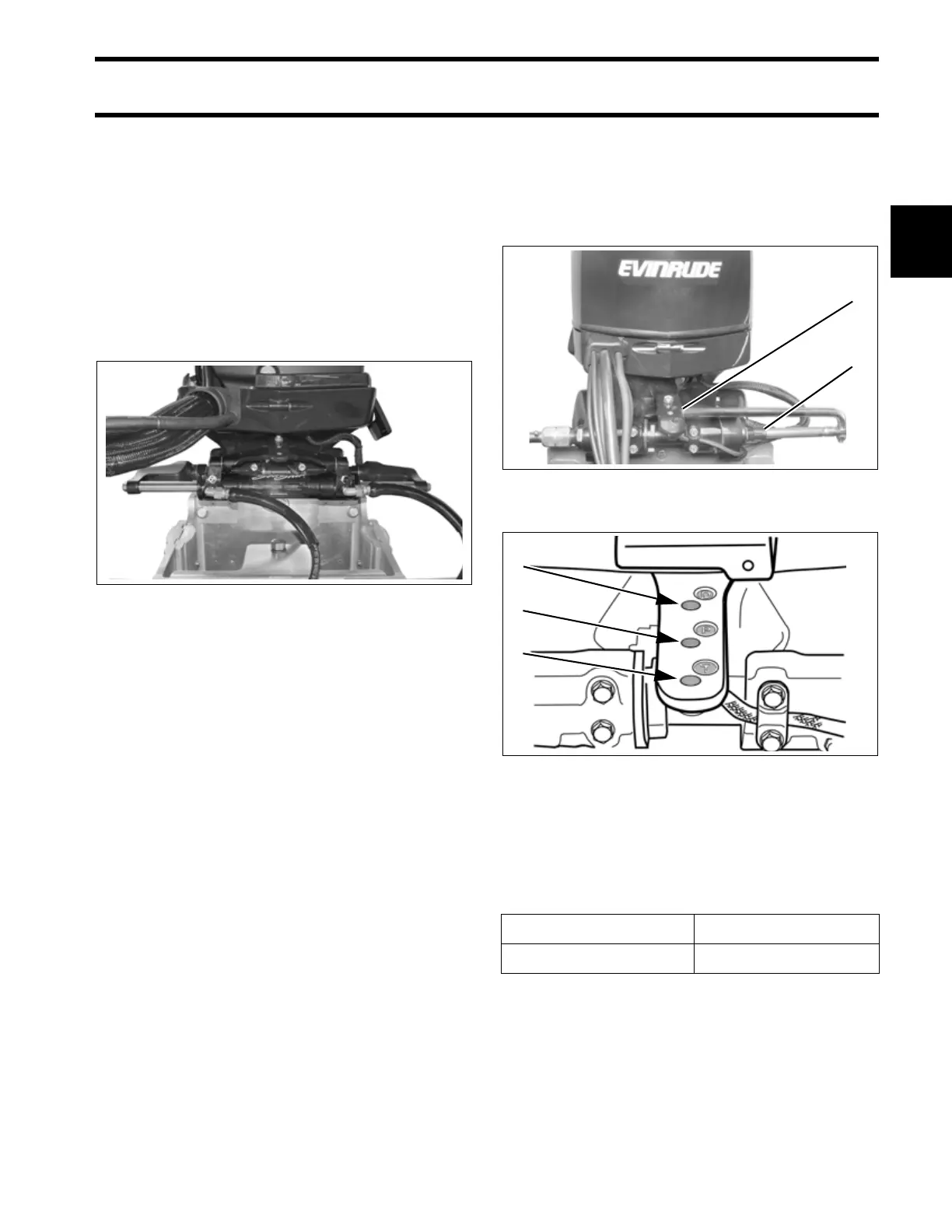

Manual Hydraulic Steering
Manual hydraulic steering systems use hydraulic
fluid to transfer motion and load from the helm to
the outboard. Hydraulic steering systems offer
certain design advantages that can be beneficial
in some applications.
Use only a hydraulic steering system designed for
the specific application. Refer to the steering sys-
tem manufacturer’s specifications for recom-
mended applications.
IMPORTANT: Some hydraulic steering systems
require additional centerline spacing in dual-out-
board installations. Refer to steering system man-
ufacturer’s recommendations and to Dual-
Outboard Centerlines on p. 52.
Drag Links
Install cable wiper nut on tilt tube and connect
drag link to the correct location on the steering
arm. For single motor, single cable applications,
the drag link should be installed in the rear hole.
Use the correct drag link to allow full steering
travel:
TYPICAL Manual Hydraulic Steering 004948
1. Drag link connection
2. Wiper nut
002097
1. Rear Location (D)–Steering drag link connection
2. Middle Location (P)–Power steering connection
(Refer to manufacturer’s instructions for hydraulic
steering systems.)
3. Front Location (T)–Bar connection (multiple out-
board installations)
DRC7162
Model Drag Link
Evinrude E-TEC 60° V P/N 175125
1
2
1
2
3
