ELECTRICAL AND IGNITION
FLYWHEEL AND STATOR SERVICING
6

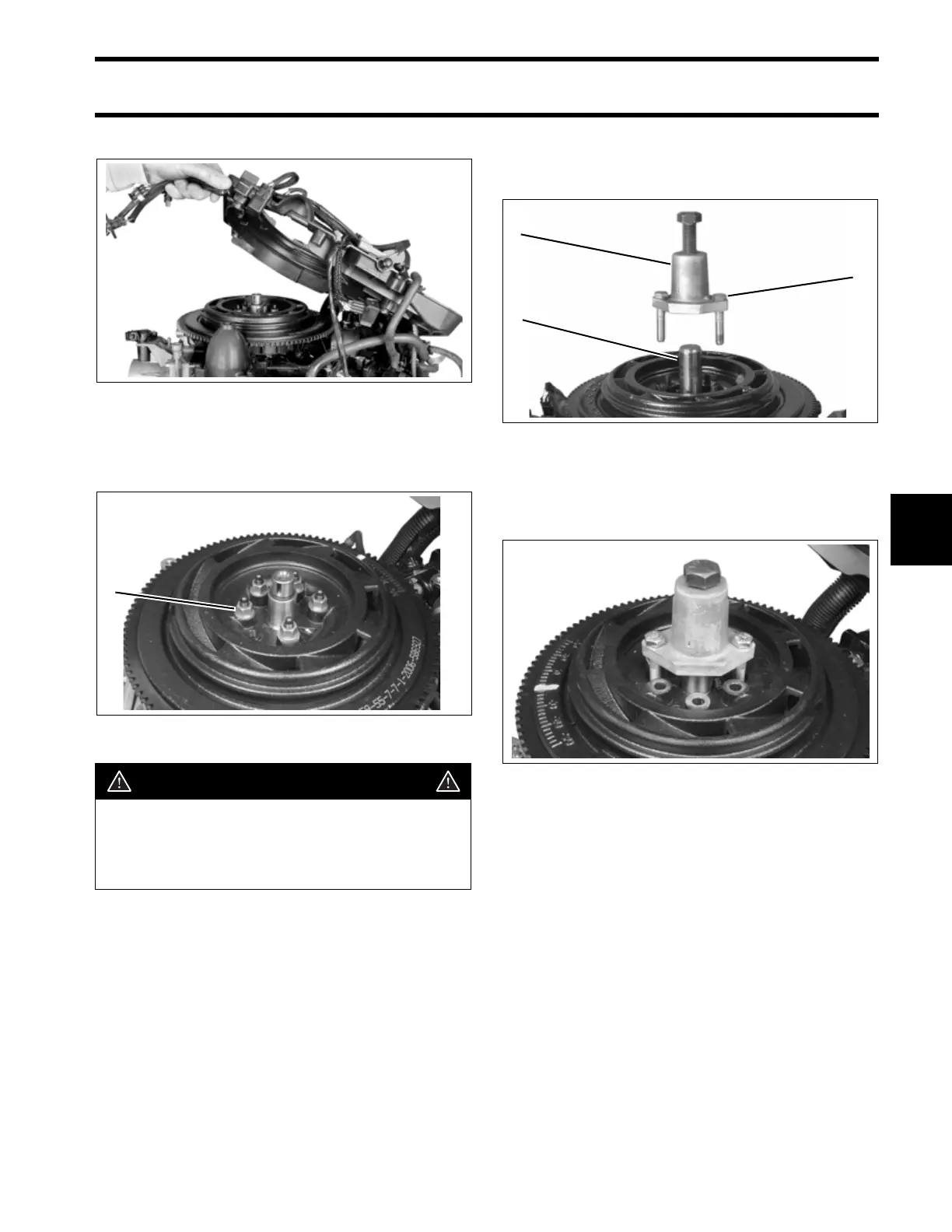

Lift the electrical harness base out of the way.
Use Flywheel Holder, P/N 771311, or equivalent,
to remove the five flywheel retaining nuts and
washers. Discard the nuts.
Install bushing from Flywheel Puller Adaptor Kit,
P/N 5007181, on top of crankshaft. Place puller
from Flywheel Service Kit, P/N 434649, over
bushing.
Use two 3/8-24x2 in. screws from the adaptor kit
to attach the tool to the flywheel. Two holes are
tapped in the flywheel for the tool.
Turn the center screw of the puller in to lift the fly-
wheel off of the crankshaft.
005379
1. Flywheel retaining nuts 005380
CAUTION
To avoid damage to flywheel magnets, or
injury to fingers, Flywheel service kits,
P/N 434649 and P/N 5007181, must be
used to remove or install the flywheel.
1
1. Puller
2. Bushing
3. Screws - 3/8 - 24 x 2 in. (2)
005369
005381
3
1
2
