389
TRIM AND TILT
SERVICING–SINGLE PISTON SYSTEM
13

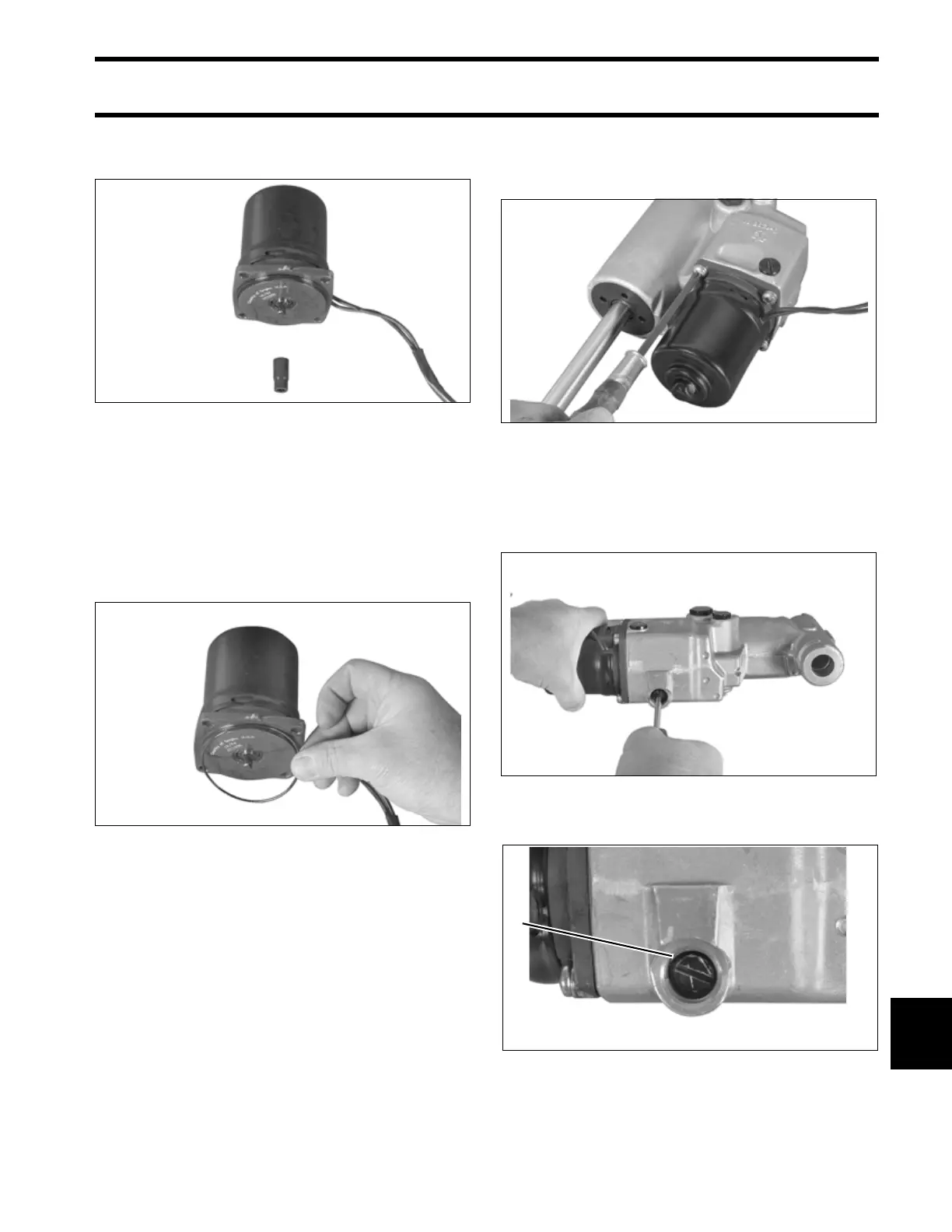

Remove drive coupler from either the motor or the
pump assembly.
Assembly
IMPORTANT: Use only Evinrude/Johnson Bio-
degradable TNT Fluid to fill the hydraulic system.
Install drive coupler in pump assembly.
Install a new motor O-ring.
Position the motor on the manifold and install four
new screws and lock washers. Tighten the screws
35 to 50 in. lbs. (4 to 6 N·m).
Oil O-rings and install them on the manual release
valve. Oil and install the manual release valve.
Tighten the valve to a torque of 45 to 55 in. lbs. (5
to 6 N·m).
Install new retaining ring in groove.
004281
004280
004282
004285
1. Retaining ring 004283
1
