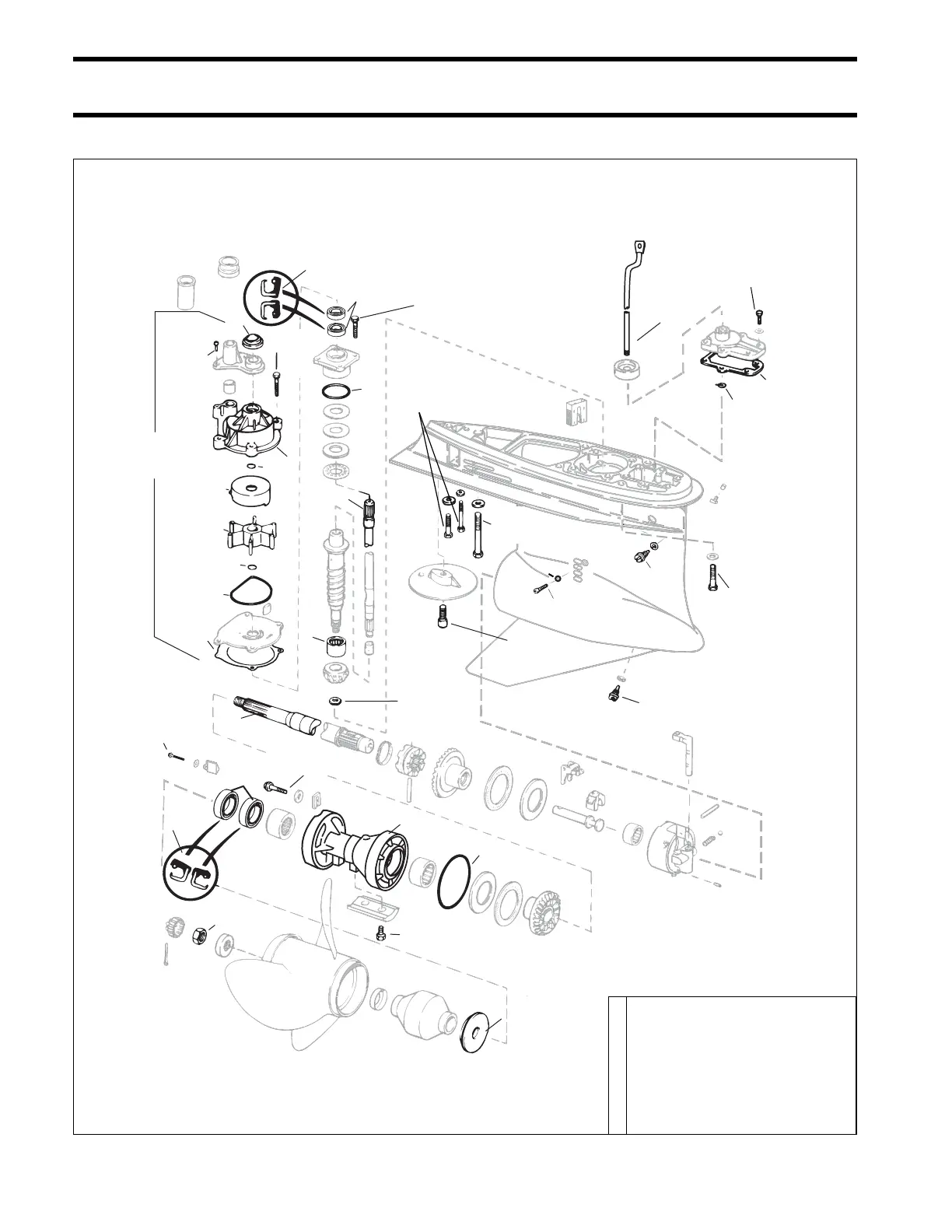

GEARCASE
SERVICE CHART
PERFORMANCE MODELS “L”-TYPE GEARCASE
A
B
E
B
B
108-132 In. lbs.
(12.2-14.9 N·m)
18-20 Ft. lbs.
(24-27 N·m)
70-80 Ft. lbs.
(95-109 N·m)
E
A
15-20 In. lbs.
(1.7-2.3 N·m)
100-110 Ft. lbs.
(136-149 N·m)
Use Gearcase
Lubricant on threads
only, taper must be
clean and dry.
35-40 Ft. lbs.
(47-54 N·m)
60-84 In. lbs.
(6.8-9.5 N·m)
G
D
26-28 Ft. lbs.
(35-38 N·m)
40-50 Ft. lbs.
(54-68 N·m)
B
B
B
A
26-28 Ft. lbs.
(35-38 N·m)
60-84 In. lbs.
(6.8-9.5 N·m)
60-84 In. lbs.
(6.8-9.5 N·m)
B
A
B
B
120-144 In. lbs.
(13.6-16.3 N·m)
A
60-84 In. lbs.
(6.8-9.5 N·m)
F
See Water Pump
Assembly instructions
B
C
A
A
B
C
F
24-36 In. lbs.
(2.7-4.1 N·m)
A
B
F
B
C
A
60-84 In. lbs.
(6.8-9.5 N·m)
40-50 Ft. lbs.
(54-68 N·m)
B
DSS151
A Triple-Guard Grease
B Gasket Sealing Compound
C Adhesive 847
D Moly Lube
E Red Ultra Lock
F Blue Nut Lock
G Needle Bearing Grease
