328
GEARCASE

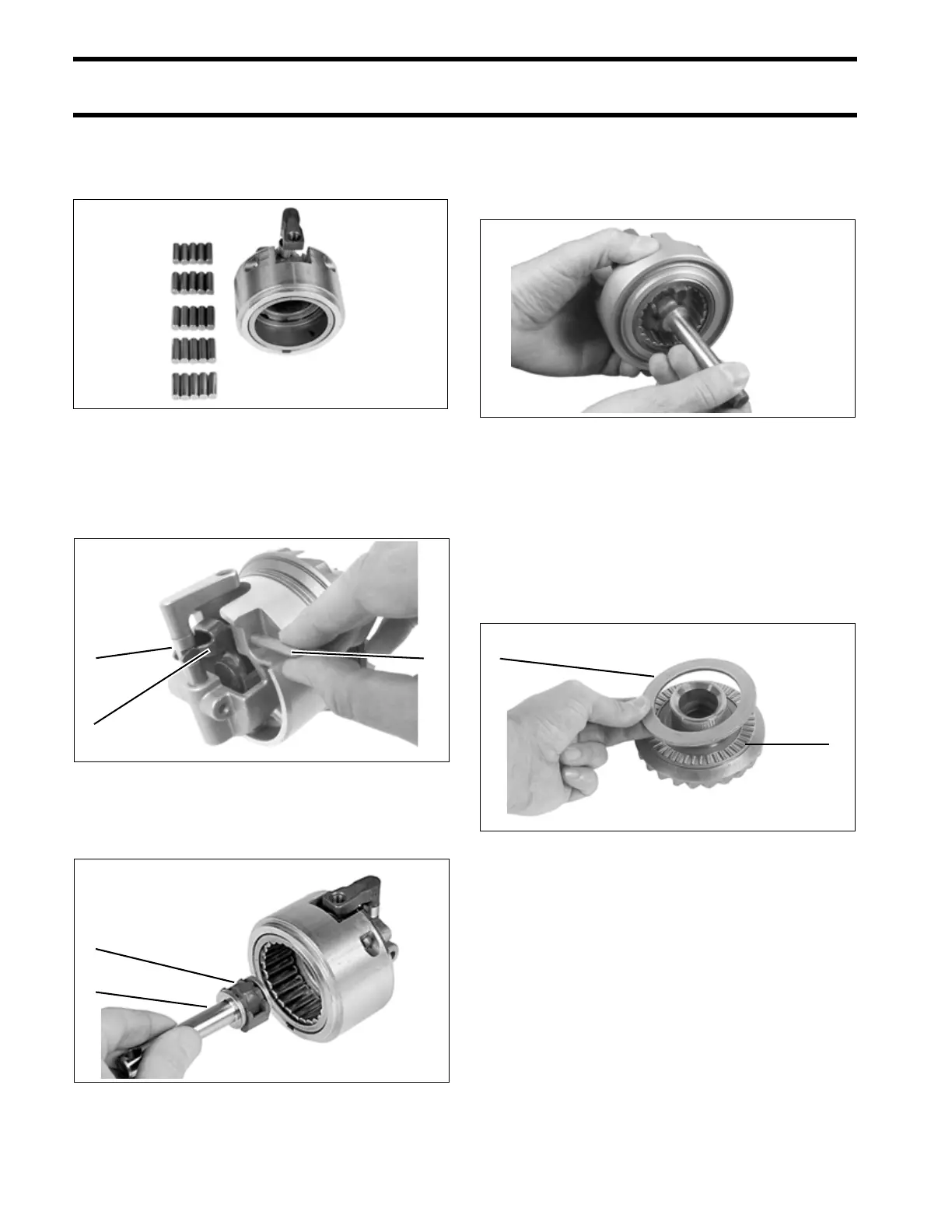

BEARING AND SEAL INSTALLATION
Thoroughly grease 25 needle bearings with Nee-
dle Bearing grease and place in the bearing case
(except “S” Type).
With shifter detent in NEUTRAL, install arms of
shift lever into detent slots. Align the pivot holes
and insert the retaining pin. Push shifter detent
down.
Rest the cradle on the shift shaft.
Position the shift lever arms into the recesses of
the shift cradle. Pull shifter detent back up to
NEUTRAL position to hold the cradle and shaft in
place.
Coat thrust bearing and thrust washer with Needle
Bearing grease. Place the bearing on the back of
the gear. Set the washer on top of the thrust bear-
ing. Insert the gear, bearing, and washer into the
bearing housing.
IMPORTANT: Bearing and washer must be
installed in the correct order.
4520
1. Shifter detent
2. Shift lever
3. Pin, shift lever
DSC02449
TYPICAL
1. Cradle
2. Shift shaft
4512
31
2
1
2
001219
1. Thrust bearing
2. Thrust washer
DSC02297
1
2
