Evinrude E-TEC

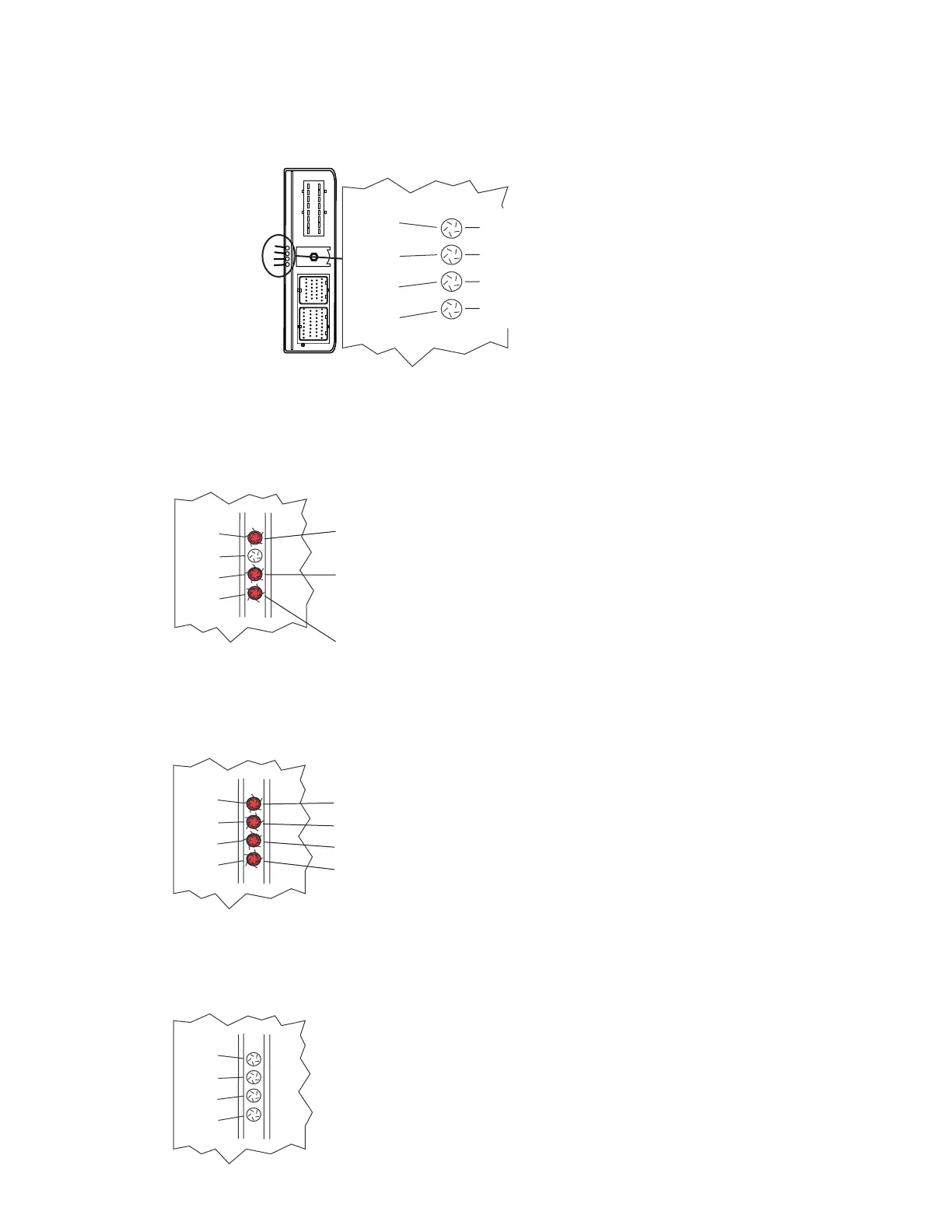

EMM LED Diagnostic Indicators
1
2
3
4
Charging/55V Circuit
Injection/Ignition/Fuel
Sensors/5V Analog Circuits
No Oil/
Overheat
Key ON: LED’s illuminate to indicate circuit function
Starting Mode: LED’s illuminate to indicate circuit function
Running Mode: LED’s illuminate to indicate circuit fault
1
2
3
4
1
2
3
4
1
2
3
4
Exception: ALL LED’s ON indicates outboard
running in Winterization Mode.
Stop circuit not grounded
FLASHING LED –
Use Diagnostic Software and see Service
Code Chart. Indicates URGENT engine overheat or no oil condition.
Sensor circuits – TPS, CPS and 5V circuits
FLASHING LED –
Use Diagnostic Software and see Service
Code Chart. Indicates URGENT conditon – Code 57.
Indica
tes 30V (or higher) on 55V circuit
Indicates CPS function and EMM SYNC
Start assist circuit (SAC), V-EMM models only
Stop circuit not grounded
Sensor circuits functional
