BRP Evinrude E-Tec E150DPXSUF - Page 177

FUEL SYSTEM
SERVICE CHART
175
7

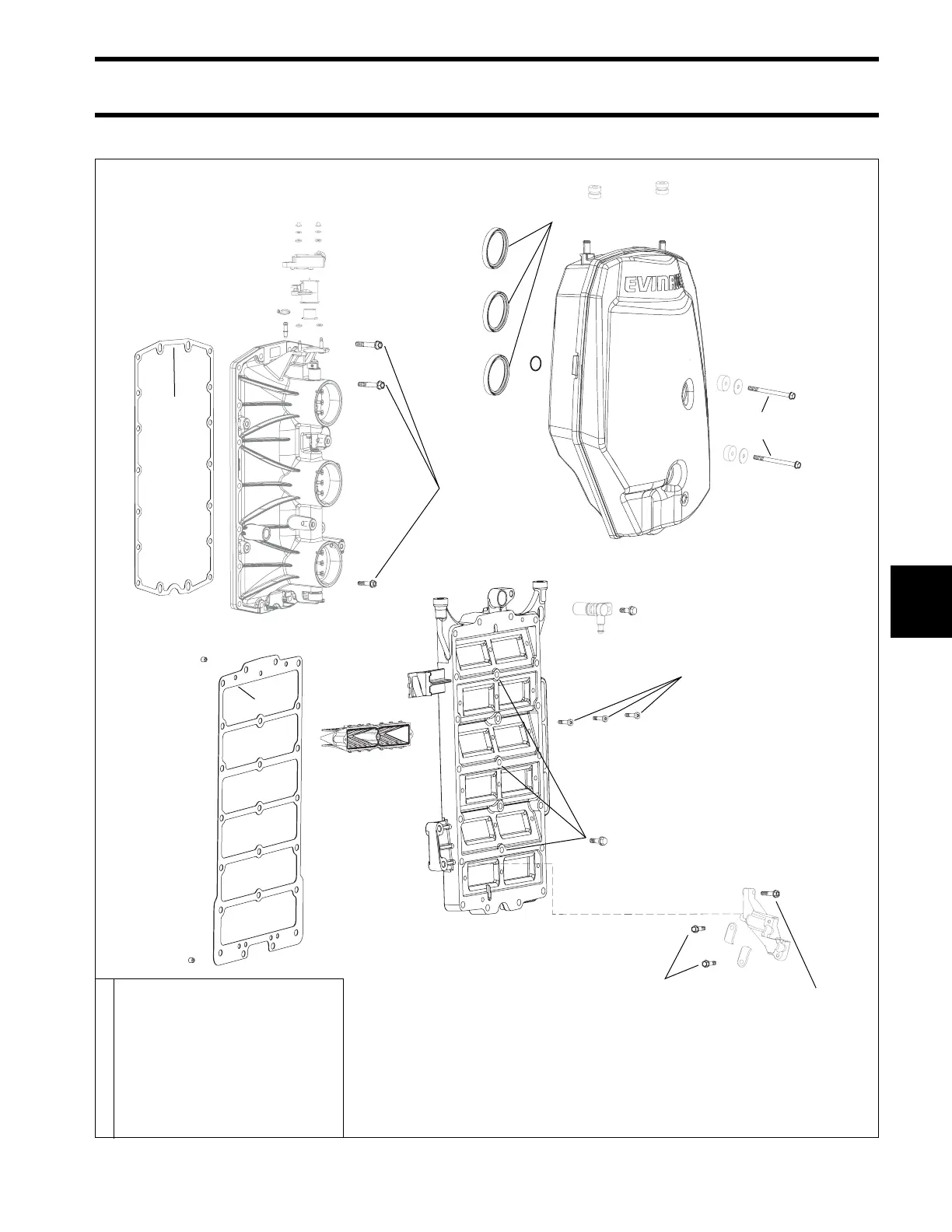

REED PLATE ASSEMBLY AND THROTTLE BODY
30-42 in. lbs.
(3-5 N·m)
60-80 in. lbs.
(7-9 N·m)
60-80 in. lbs.
(7-9 N·m)
72-96 in. lbs.
(8-11 N·m)
F
96-120 in. lbs.
(11-13.5 N·m)
10-18 in. lbs.
(1-2 N·m)
96-120 in. lbs.
(11-13.5 N·m)
C
Start at center and use
a spiral torque pattern
Bond seals
to air silencer
F
K
B
B
IMPORTANT:
DO NOT lubricate TPS
to throttle shaft surface
A Triple-Guard Grease
B Gasket Sealing Compound
C Adhesive 847
D Moly Lube
E Red Ultra Lock
F Blue Nut Lock
G Needle Bearing Grease
K Purple, Screw Lock
