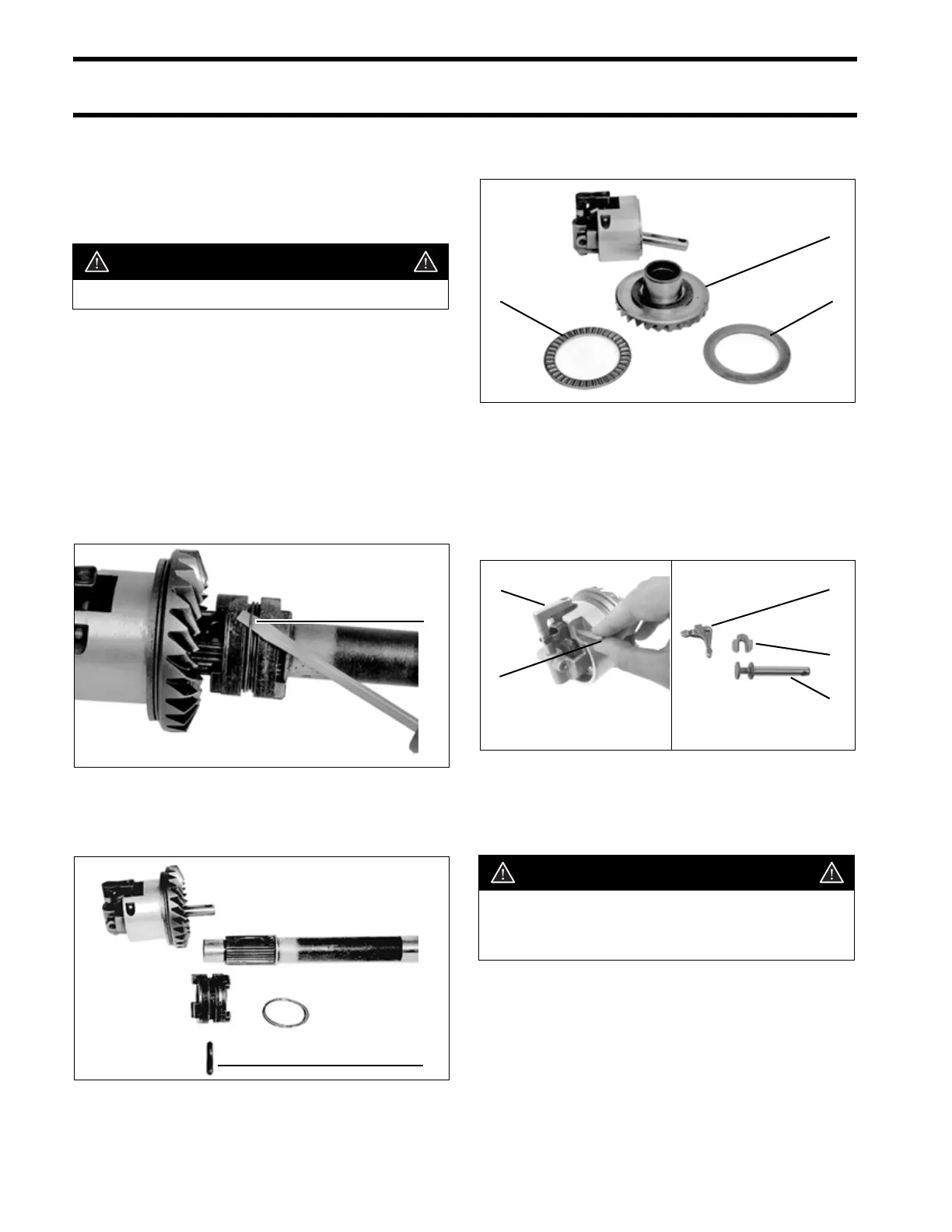

BRP Evinrude E-Tec E150DPXSUF - Bearing and Seal Removal; Shift Housing

324
GEARCASE
BEARING AND SEAL REMOVAL
BEARING AND SEAL
REMOVAL
Shift Housing
IMPORTANT: The shift housing and forward
gear bearing are serviced as an assembly. If
either are worn or damaged, replace the complete
assembly.
Disassembly
Insert a suitable tool under one end of the clutch
dog spring and remove it from its groove by
unwrapping it from around the clutch dog. Dis-
card the spring.
Push the pin out of the clutch dog. Remove all
components.
Remove the gear, thrust bearing, and thrust
washer from the shift housing.
Remove the shift lever pin from the housing.
Remove shift shaft, cradle and shift lever. Move
shifter detent accordingly to assist in removal of
components.
WARNING
Wear safety glasses to avoid injury.
1. Clutch dog spring COA3560
1. Pin COA3561
1
1
1. Gear
2. Thrust bearing
3. Thrust washer
COA3562
1. Shift lever pin
2. Shift shaft
3. Cradle
4. Shift lever
5. Shifter detent
DSC02449
DSC02489
WARNING
Wear safety glasses to avoid personal
injury. The detent ball and spring and
come out with great force.
1
32
4
3
2
5
1
