FUEL SYSTEM
FUEL COMPONENT SERVICING

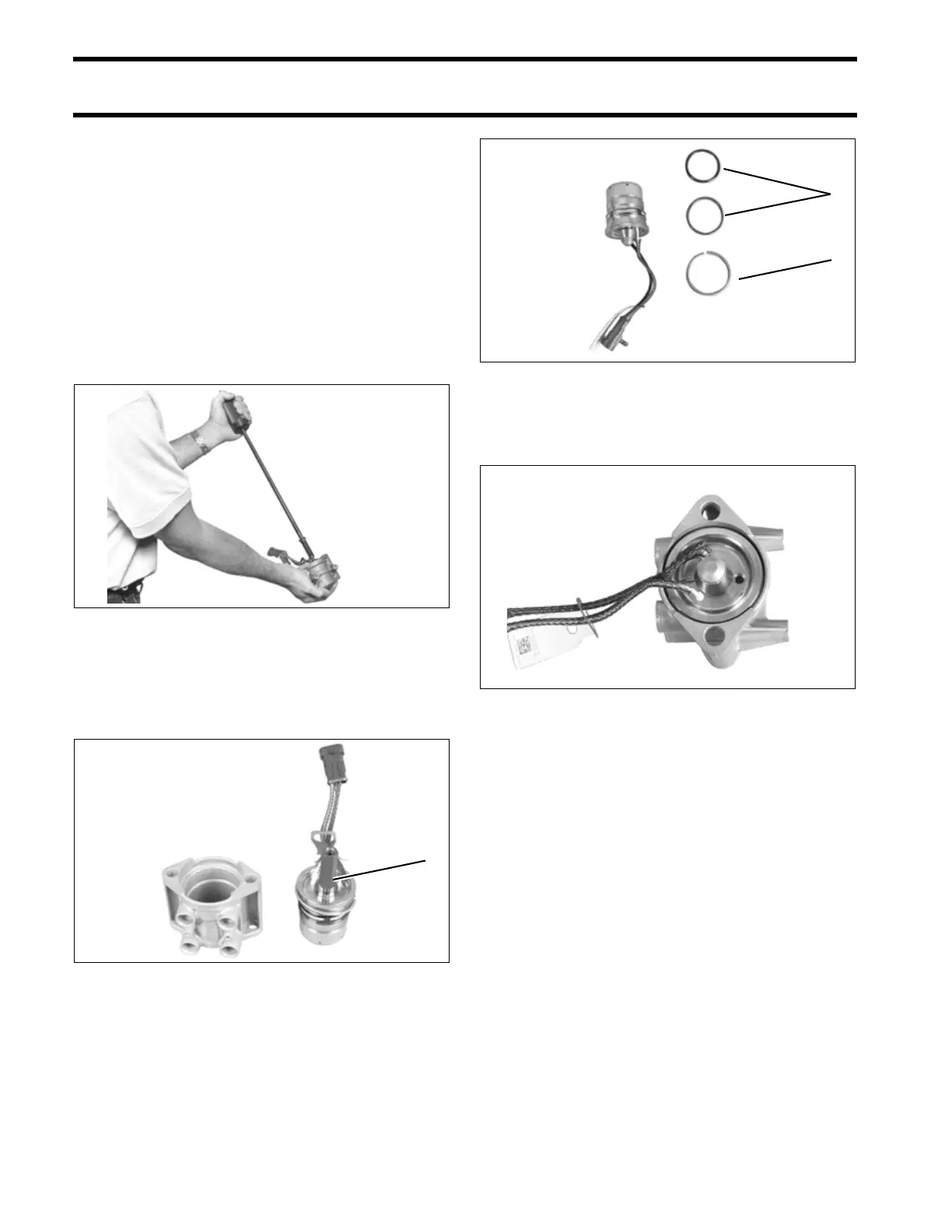

Crush Ring Replacement
IMPORTANT: Injector crush rings must be
replaced if injector is installed in a different head
or cylinder location.
Use Slide Hammer assembly, P/N 391008, with
Slide Hammer Adaptor kit, P/N 390898, compo-
nents to remove injector from mounting cup.
Thread adaptor and stud into face of injector. Hold
mounting cup securely. Work slide hammer to
separate injector from mount housing.
Remove adaptor from injector. Remove crush ring
and O-rings from injector. Inspect and clean injec-
tor filter. Install new crush ring and O-rings. Lubri-
cate O-rings with STP
†
Oil Treatment.
Reinstall injector into mount housing. Press on
injector face until injector seats in mount housing.
Installation
IMPORTANT:
All injectors must be installed in
the correct cylinder by serial number. Improper
injector installation can result in outboard failure.
Installation of replacement injectors requires the
use of diagnostic software and coefficient data
002345
1. Adaptor 002196
1
1. Crush ring
2. O-rings
002317
002318
2
1
