321
GEARCASE
DISASSEMBLY
12
Installation

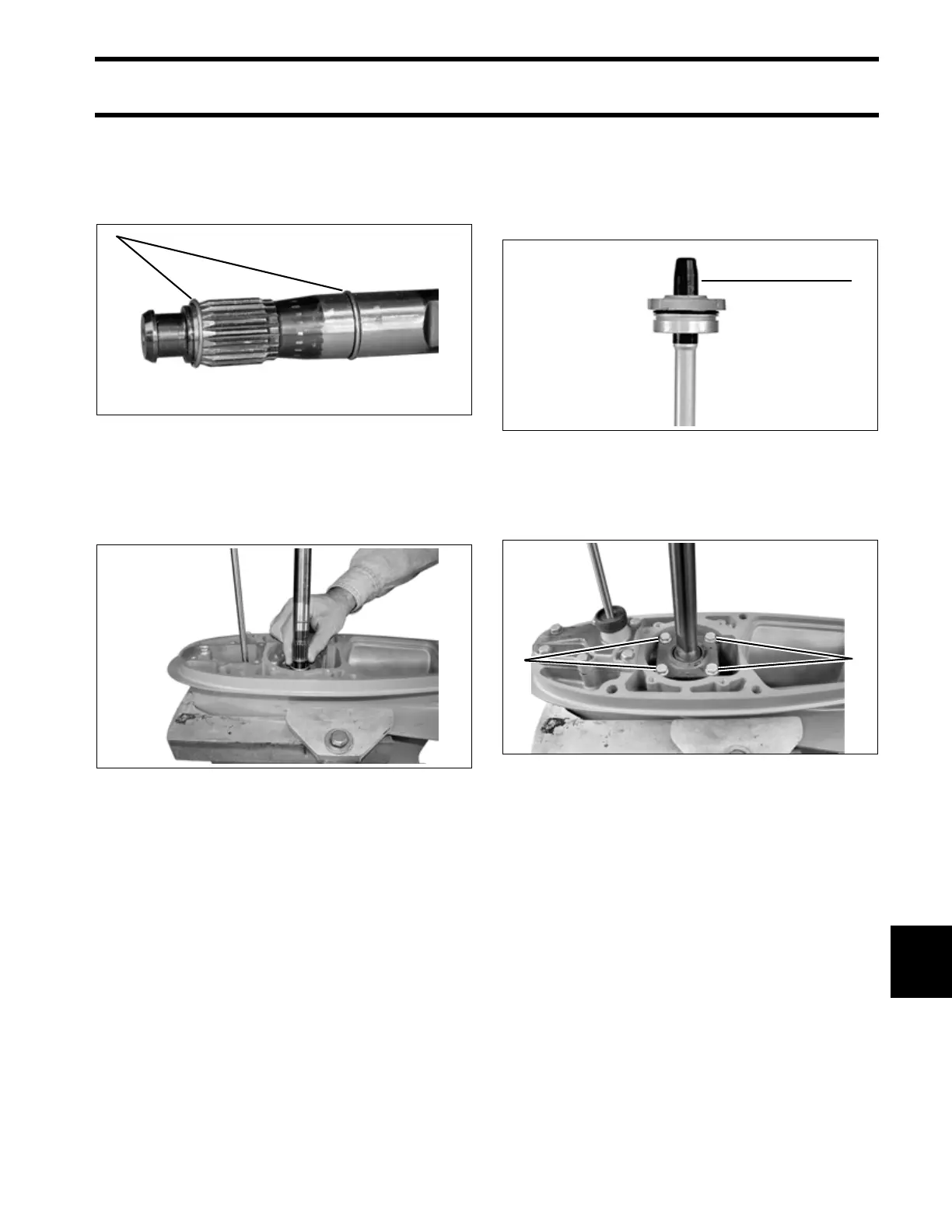

To install upper driveshaft into lower driveshaft,
position new retainers (circlip type) on upper
driveshaft as shown.
Hold lower retainer in place and align upper drive-
shaft with lower driveshaft. Force upper driveshaft
down until seated. Make sure upper driveshaft is
locked in place.
Install new seals in driveshaft bearing housing.
Refer to Driveshaft Bearing Housing on p. 326.
Using Driveshaft Seal Protector, P/N 318674,
slide the driveshaft bearing housing onto the
driveshaft.
Apply Gasket Sealing Compound to the threads of
the screws. Install screws and torque to 120 to
144 in. lbs. (13.6 to 16.3 N·m).
1. Retainer(s) 005412
005413
1
1. Seal protector COA3130
1. Driveshaft bearing housing screws 005425
1
11
