BRP Evinrude - Battery and Switch Wiring Diagrams

18
BOAT RIGGING
BATTERY INSTALLATION

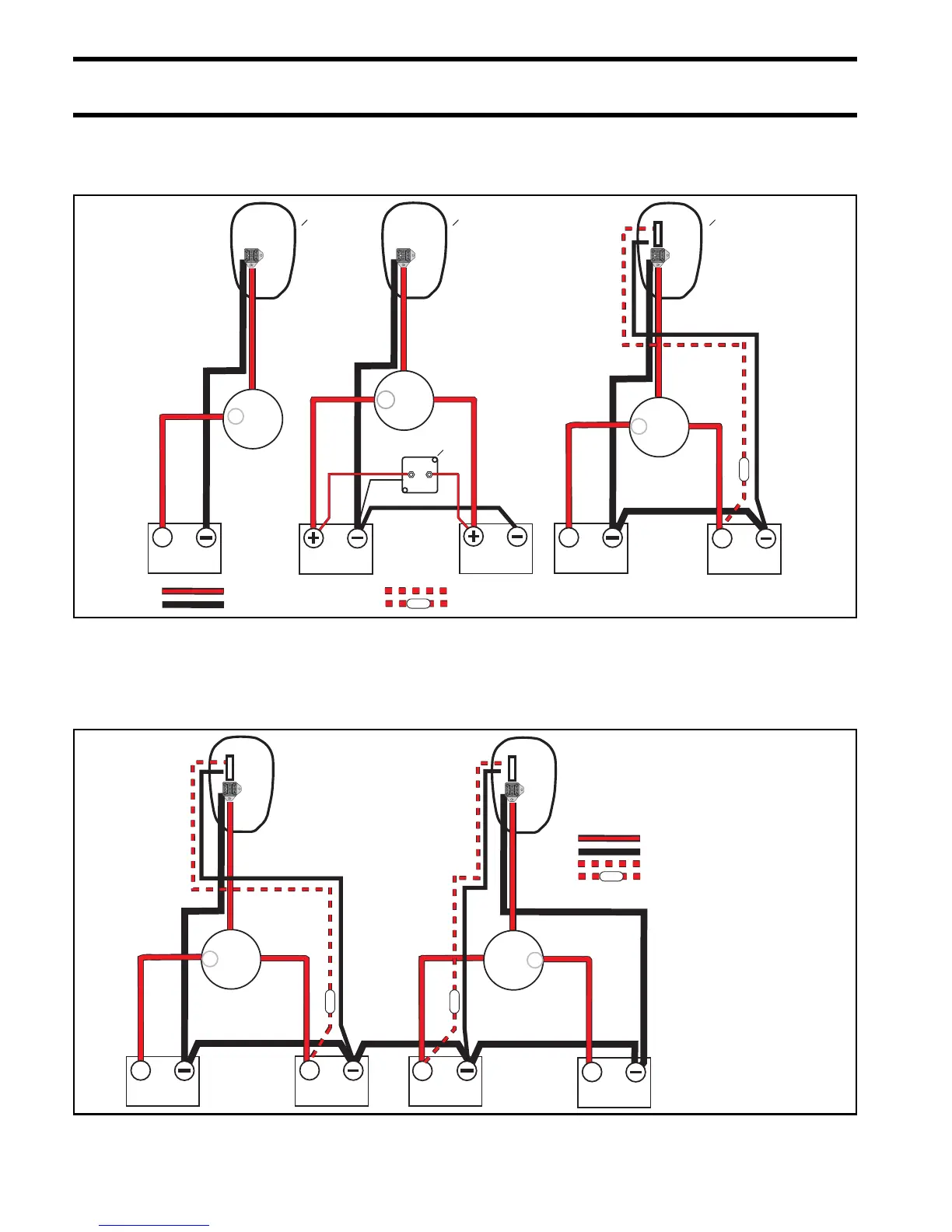

Battery and Switch Wiring Diagrams
Single outboard
Two outboards: Two starting batteries each
S
BOTH
OFF
12
VSR
OFF
ON
+
PRIMARY
#1
S
1
2
OFF
BOTH
SECONDARY
+
PRIMARY
#1
S
+
#2
PRIMARY
#1
SECONDARY
#2
12 4
3
Positive (+) Battery Cable
Negative (–) Battery Cable
Accessory charge wire (V models)
50 amp fuse
1. Single starting battery with ON/OFF switch
2. Two starting batteries with isolator/combiner (15 – 90 HP models)
3. Voltage sensitive relay
4. Two starting batteries with Auxiliary charging kit (V models)
008056
SECONDARY
+
PRIMARY
S
+
1
2
OFF
BOTH
SECONDARY
+
PRIMARY
#1
S
+
#2
#1
#1
#2
#2
1
2
OFF
BOTH
Positive (+) Battery Cable
Negative (–) Battery Cable
Accessory charge wire (V models)
50 amp fuse
008055
