OUTBOARD INSTALLATION

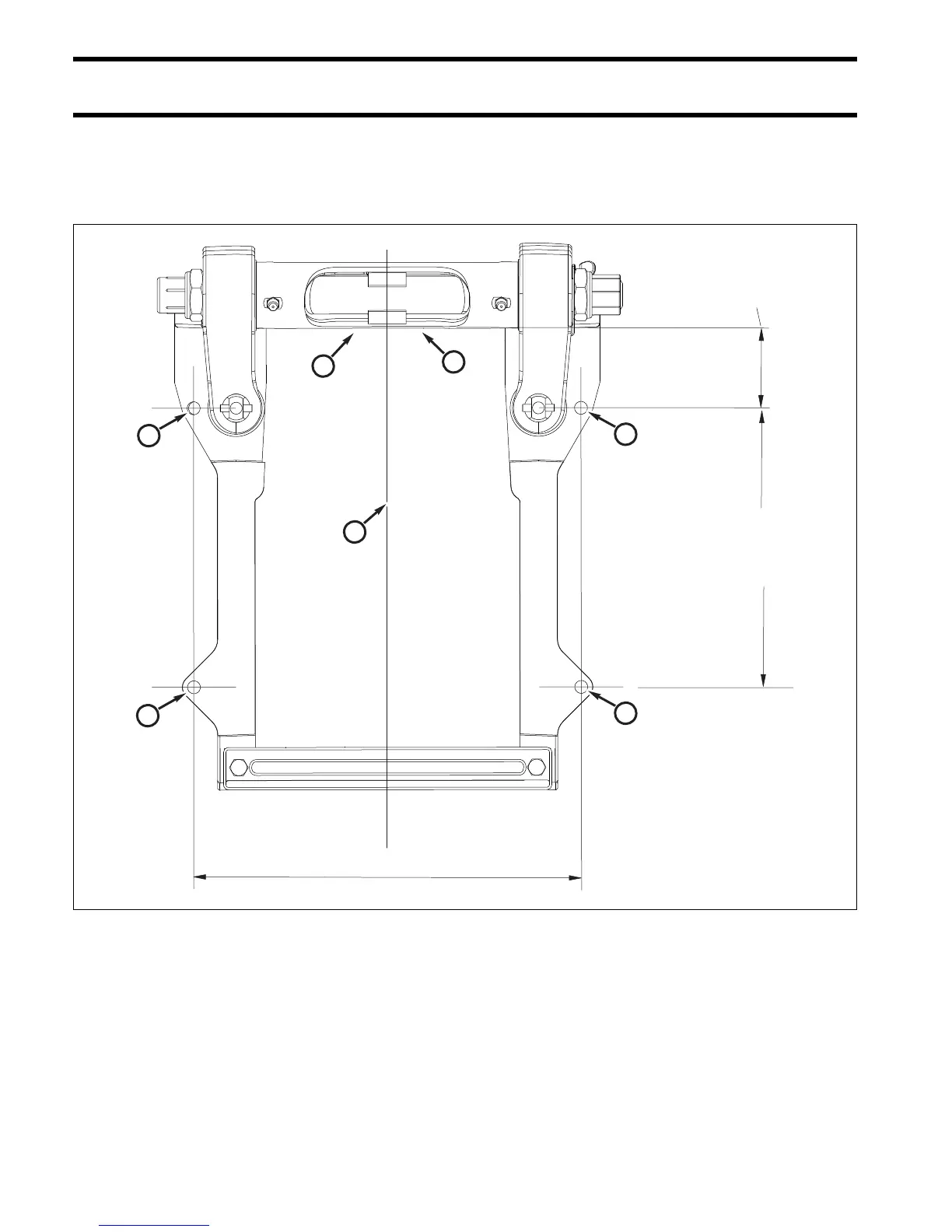

TRANSOM MEASURING AND DRILLING
15 HP, POWER TILT MODELS
IMPORTANT: This is not a template.
1. Center of Transom
2. Top of Transom
3. 5/16” Bolt Hole Locations
7.39 in.
(187.6 mm)
2.1 in.
(53.1 mm)
10.25 in. (260.4 mm)
2
2
1
3
3
3
3
