OUTBOARD RIGGING
EVINRUDE E-TEC MODELS 40–90 HP
3

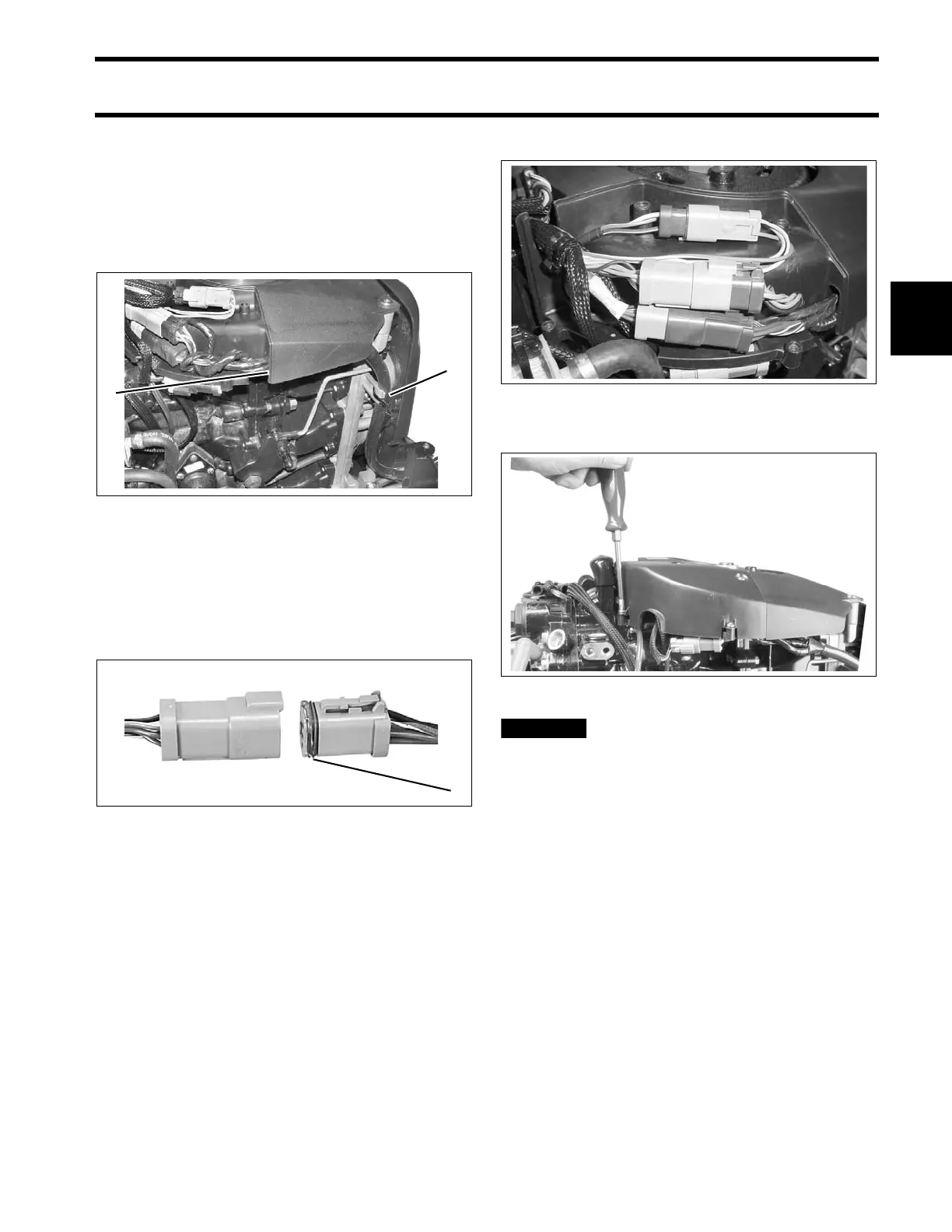

SystemCheck Harness
Connections
Place the wiring harness through notch in lower
motor cover and route to the recess in the fly-
wheel cover. Secure the cable with a tie strap as
shown:
Before installing electrical connectors, check that
the seal is in place. Clean off any dirt from con-
nectors. Apply a light coat of Electrical Grease to
the seal only. DO NOT fill connectors with Electri-
cal Grease.
Arrange connectors in flywheel cover.
Install electrical cover and secure with screws.
BE SURE all harnesses and wires
are not pinched, cannot contact flywheel, and
do not interfere with moving throttle or shift
linkages.
1. Recess
2. Tie strap
002011
1. Seal 42079A
001999
002102
