188
MIDSECTION
STERN BRACKETS, STEERING ARM, AND SWIVEL BRACKET
IMPORTANT: An insulation washer must be
installed between the bonding wire terminal and
the exhaust housing.
Attach the bonding wire to the exhaust housing.
Tighten the screw securely.
STERN BRACKETS,
STEERING ARM, AND
SWIVEL BRACKET
Removal
Remove the exhaust housing and the oil pan.
Refer to “EXHAUST HOUSING AND OIL PAN” on
page 181.
Remove the screws and the bonding wires from
the stern bracket and the lower mount bracket.
IMPORTANT: Before removing the lower mount
bracket, use sandpaper to tear the black paint off
the lower portion of the pilot shaft for easier
removal.

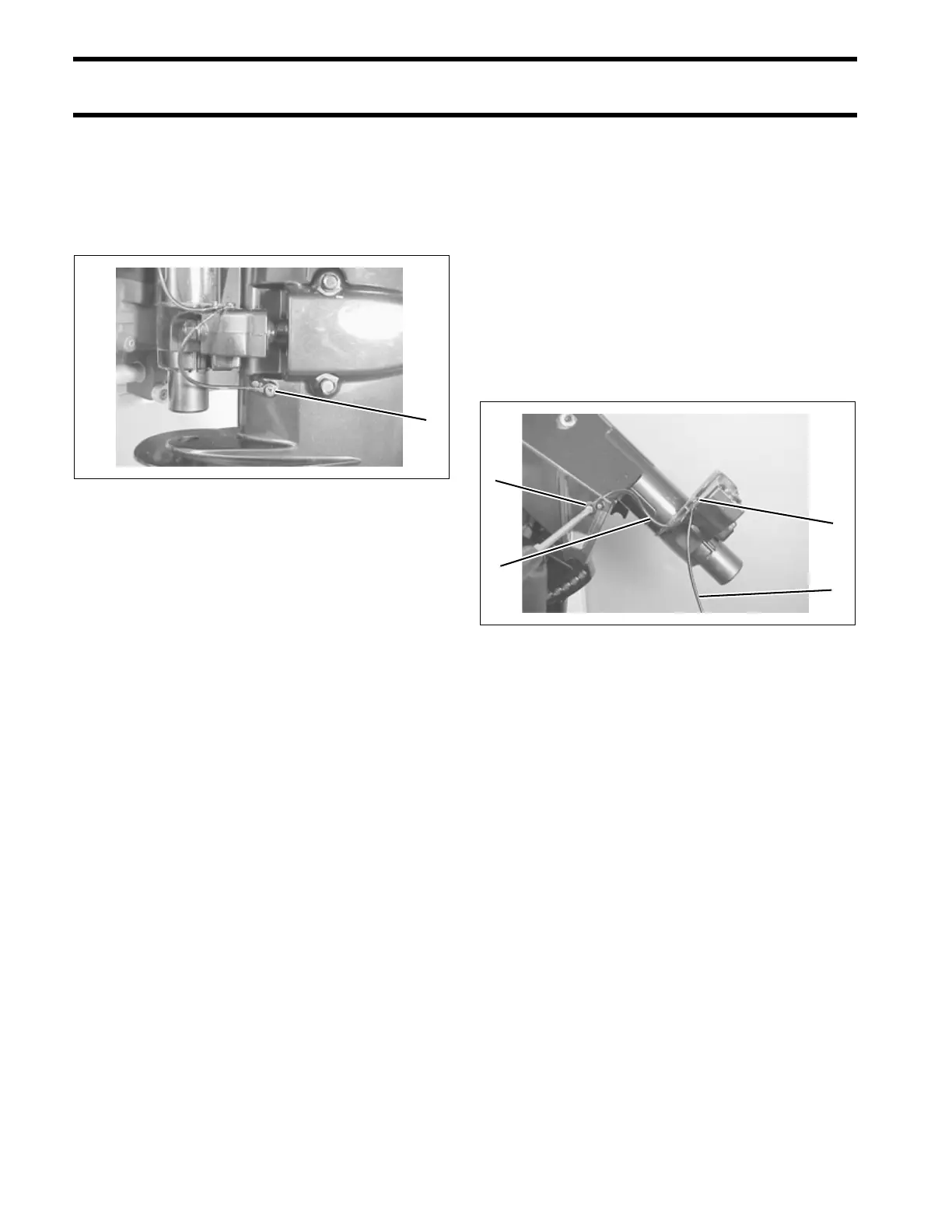

1. Bonding wire 001762
1
1. Screws
2. Bonding wires
001793
1
2
1
2
