LUBRICATION
Overview

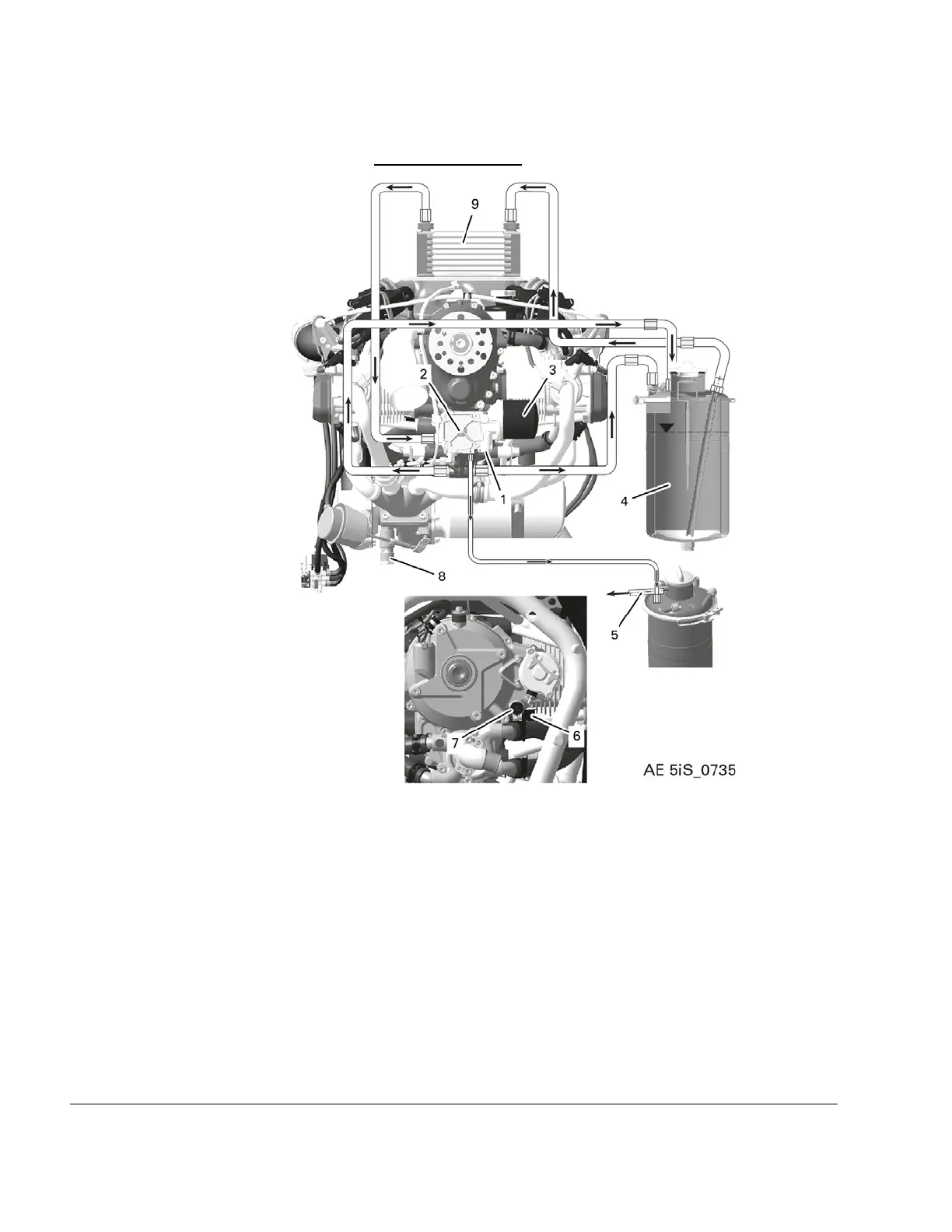

Figure 7.12
1
Oil pressure regulator
2
Oil pump
3 Oil filter 4 Oil tank
5
Venting hose
6
Oil temperature sensor
7
Oil pressure sensor
8
Plug screw assy. (oil sump turbocharger)
9 Oil radiator
