BRP-Rotax
MAINTENANCE MANUAL LINE
ELECTRIC SYSTEM
916 i TYPE A

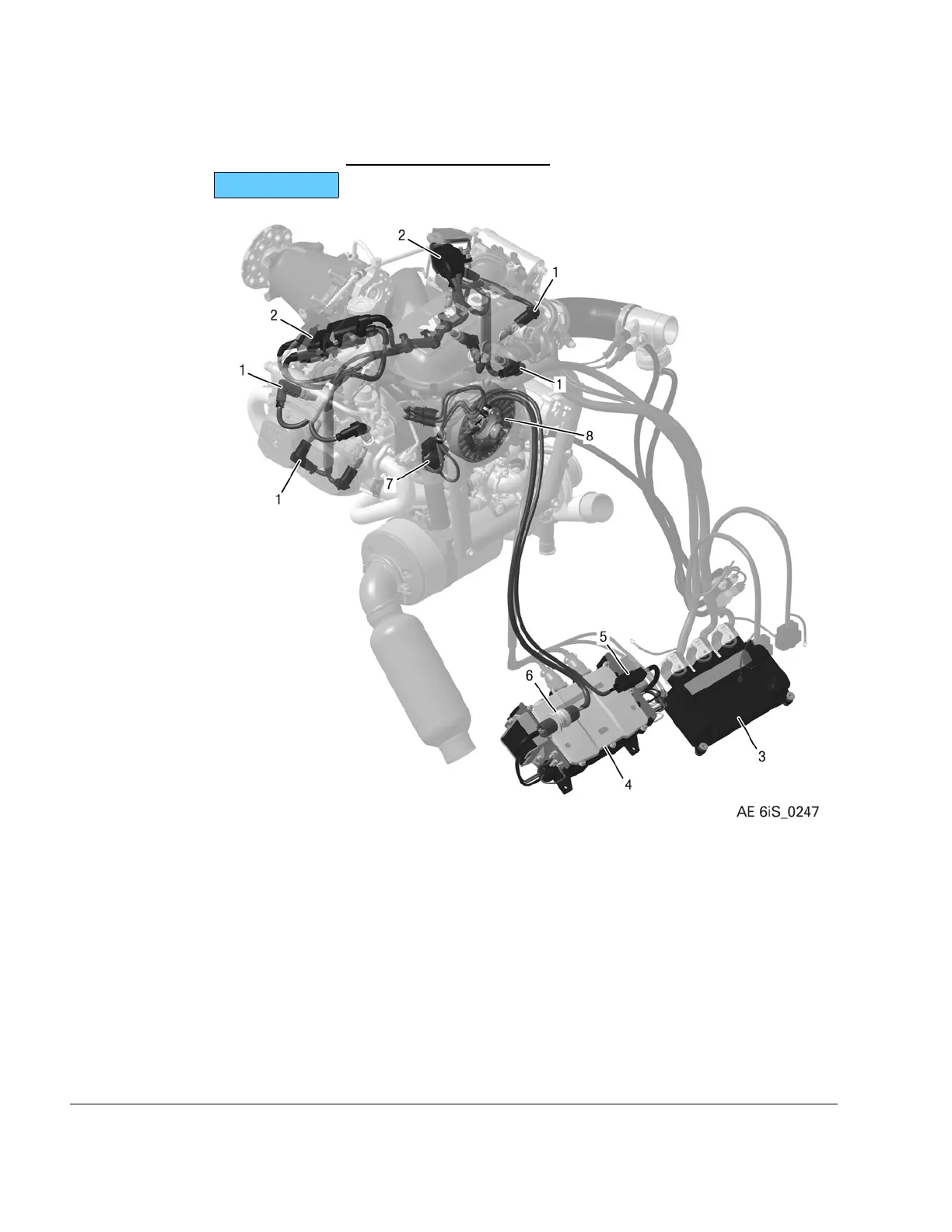

Figure 7.18: Overview
1
Spark plug connectors
2
Double ignition coil
3
Engine Control Unit (ECU)
4
FUSE BOX assy.
5 Connector Generator A 6 Connector Generator B
7
Crankshaft Position Sensor (CPS 1/2)
8 Generator A and B
12–20–00
Page 42
December 01 2023
Effectivity: 916 i A / C24
Edition 0/Rev. 1
