TURBOCHARGER
Checking the
waste gate lever
Step
Procedure
1

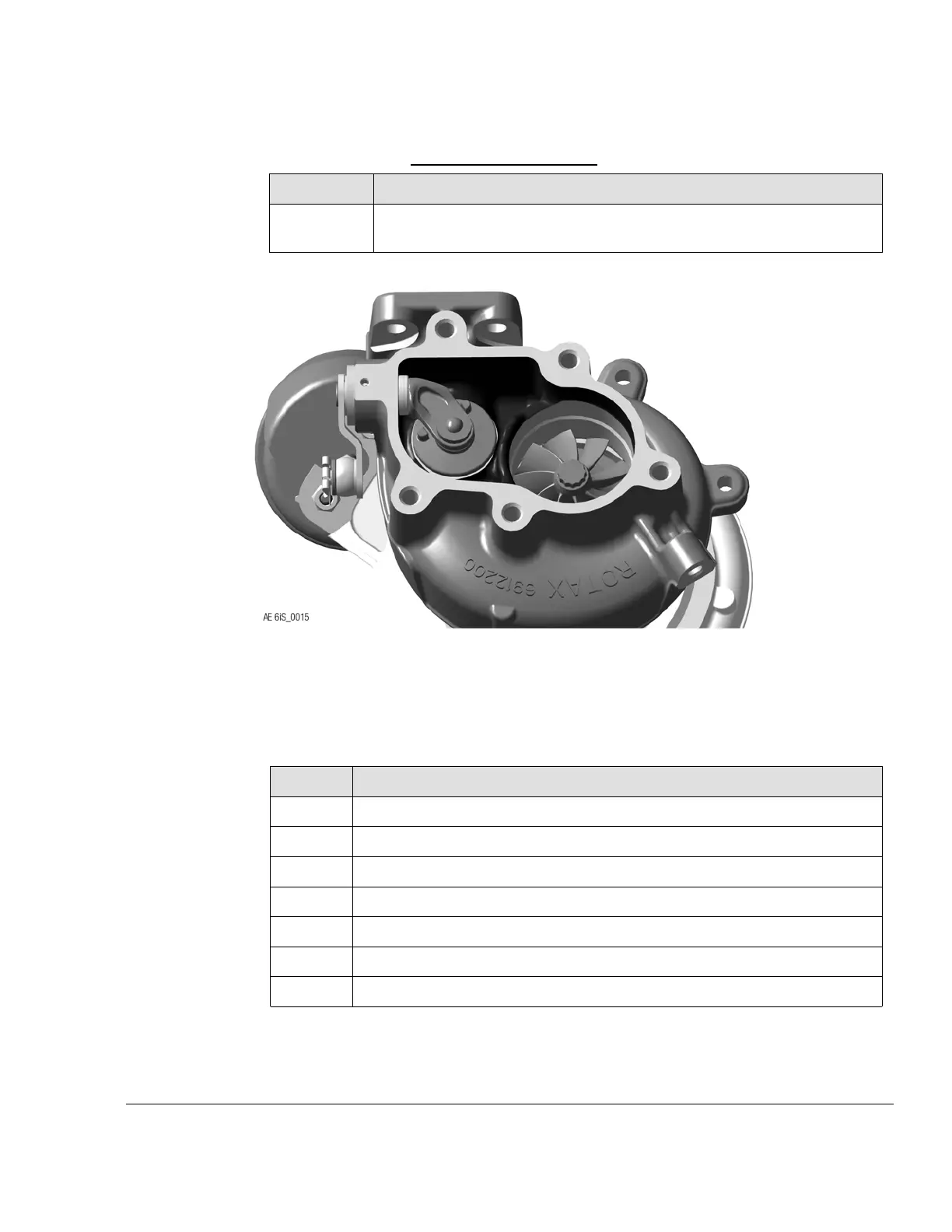

Check the waste gate lever for free movement. If it does not move freely,
lubricate the axle of the waste gate with LOCTITE ANTI SEIZE 15378.
Figure 7.21
CHECKING AND CLEANING PLUG SCREW (TURBO OIL SUMP ASSY.)
Procedure To check and clean the following steps are necessary:
See Figure Oil sump assy.
Step
Procedure
1
Loosen the plug screw assy. M22x1.5 (1) with the O-ring 18x2.5 (2).
2
Drain the residual oil from the oil sump assy.
3 Inspect the plug screw assy. of metal particals.
4
Clean the plug screw with suitable clean agent.
5
Install plug screw assy. M22x1.5 with O-ring 18x2.5 into the oil sump assy..
6 Tightening torque 20 Nm (15 ft. lb).
7
Lockwire plug screw assy.
Effectivity: 916 i A / C24
Edition 0/Rev. 1
12–20–00
Page 49
December 01 2023
