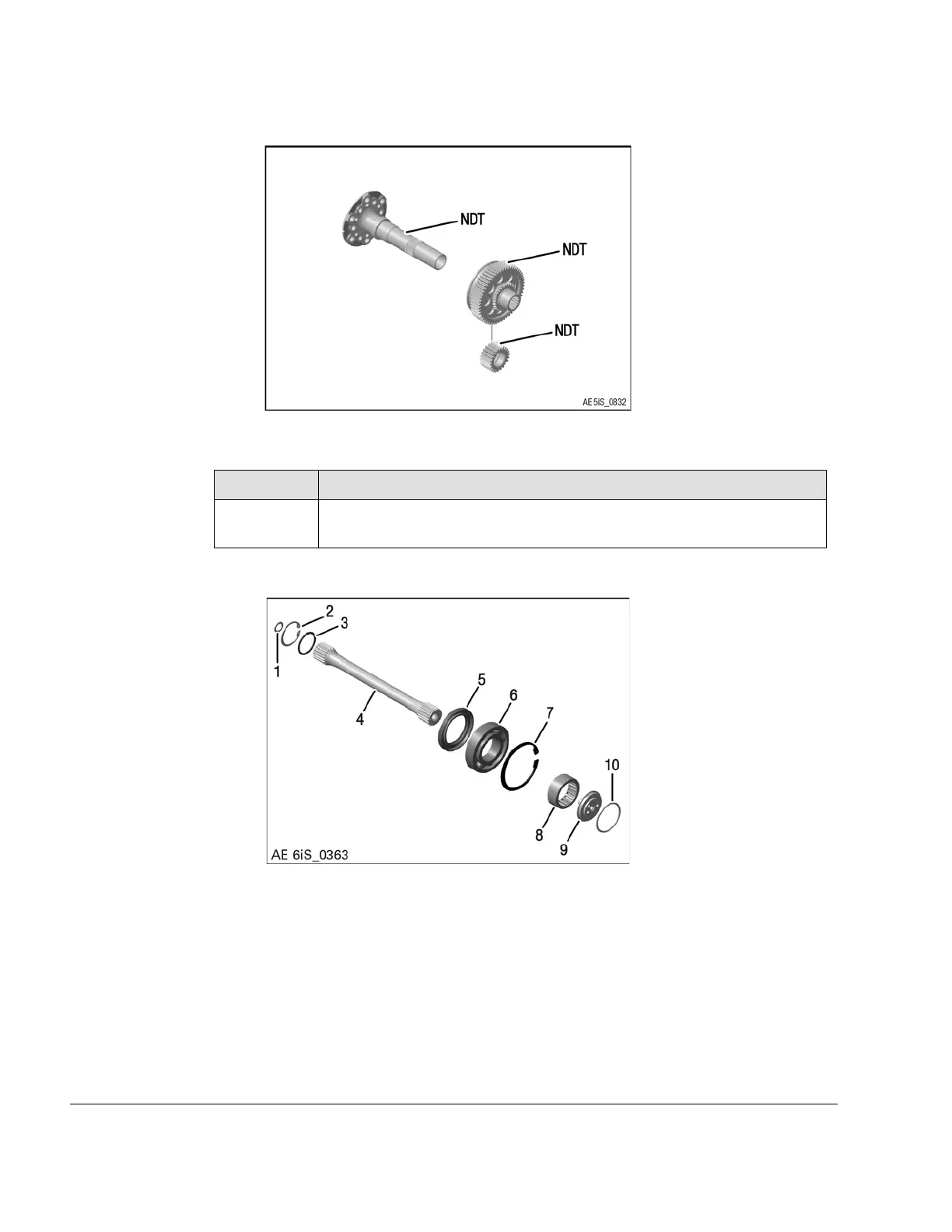

Figure 5.7: NDT inspection
Step
Procedure
4
If cracks are detected on any these components the parts need to be
replaced.
These parts need to be replaced 100% in course of a propeller strike inspection.
Figure 5.8: 100% replacement parts after propeller strike
1
Sealing ring A12x18
2
Retaining ring 40x1.75
3
O-ring 33x3–N, FPM 75
4 Torsion shaft
5 Oil seal AS 48x72x8 6
Ball bearing 6208 TN9 C3
7
Retaining ring 80x2.85
8
Needle bearing RNA 49/32 40-52-20
9
Oil inlet flange
10
O-ring 46x3
05–50–00
Page 10
December 01 2023
Effectivity: 916 i A / C24
Edition 0/Rev. 1
