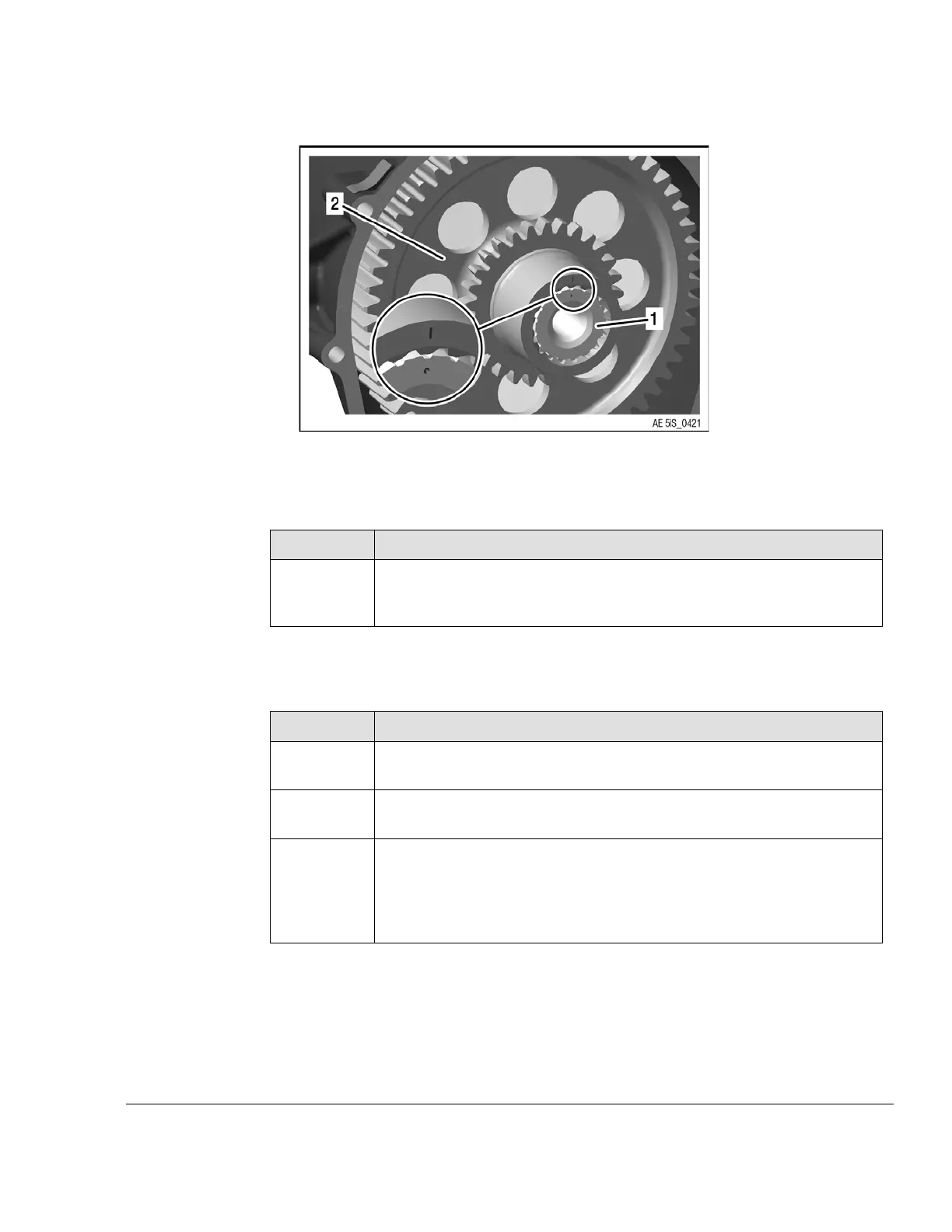

Figure 5.12
1 Torision shaft 2
Overload clutch assy.
Step
Procedure
8 Apply LOCTITE 5910 surface sealing compound to the sealing surface
of the gearbox housing and place on the gear cover assy. with the pre-
assembled gearbox.
NOTE
Move the propeller shaft a little to allow the dog gear to engage.
Step
Procedure
9
Tap gently on the gearbox housing with a soft-faced hammer to position
the gearbox on the crankcase.
10
Observe screw pos. 7 on the following screw diagram: Secure the Hex./
Torx-flange screw M6x40 with LOCTITE 243 . Hand-tighten the screw.
11
Tighten two Hex/Torx-flange screw M8x45 and ten Sk/Torx-flange
screws M6x40 diagonally from each other.
Fasten the screws according to the screw diagram. Tightening torque
M6: 10 Nm (89 in.lb.)
Tightening torque M8: 25 Nm (18 ft.lb.)
Effectivity: 916 i A / C24
Edition 0/Rev. 1
05–50–00
Page 15
December 01 2023
