Effectivity: 916 i A / C24
Edition 0 / Rev. 1
BRP-Rotax Page 7-3
December 01 2023
7.1.3) Engine components
916 i TYPE A

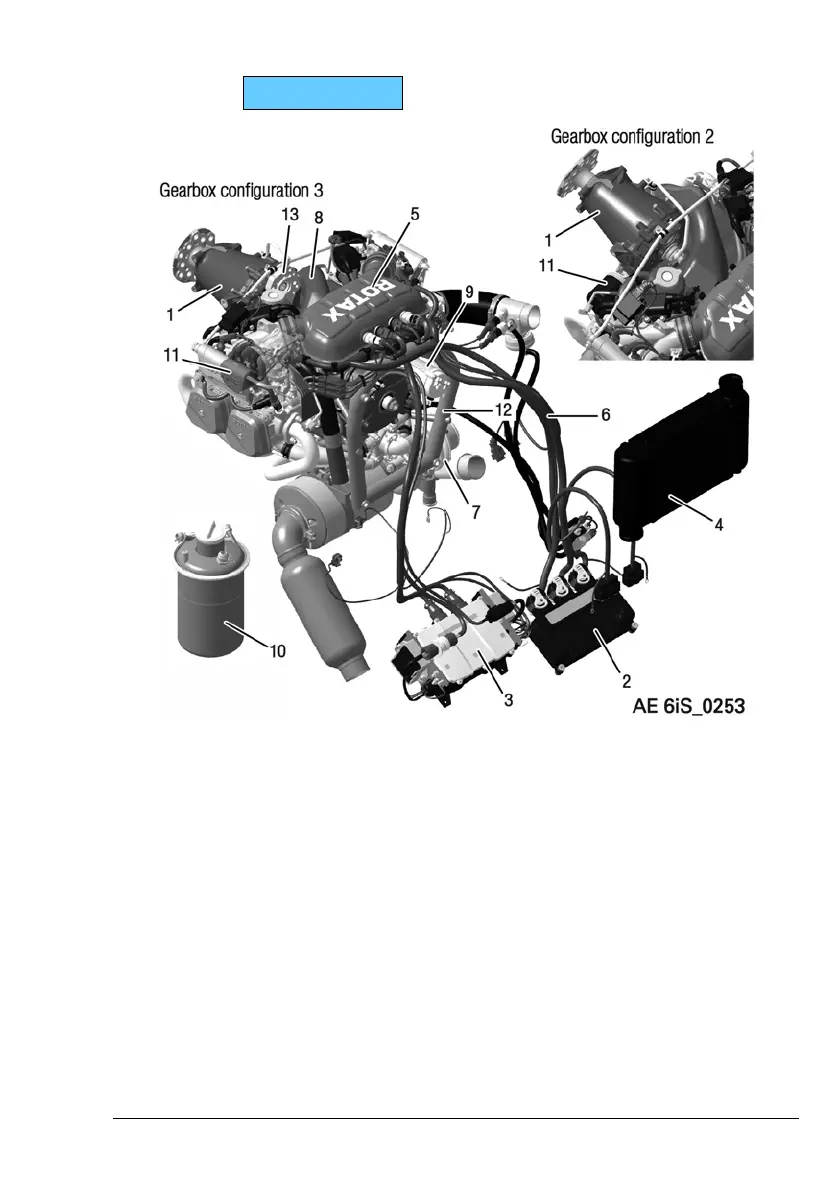

Figure 1: Engine Components
1
Propeller gear box
2 ECU
3 Fusebox 4 Intercooler
5 Airbox 6
Wiring harness
7
Turbocharger
8 Air baffle
9 Electric starter
10
Oil tank
11 Oil filter
12
Suspension frame
13
Flange for governor
